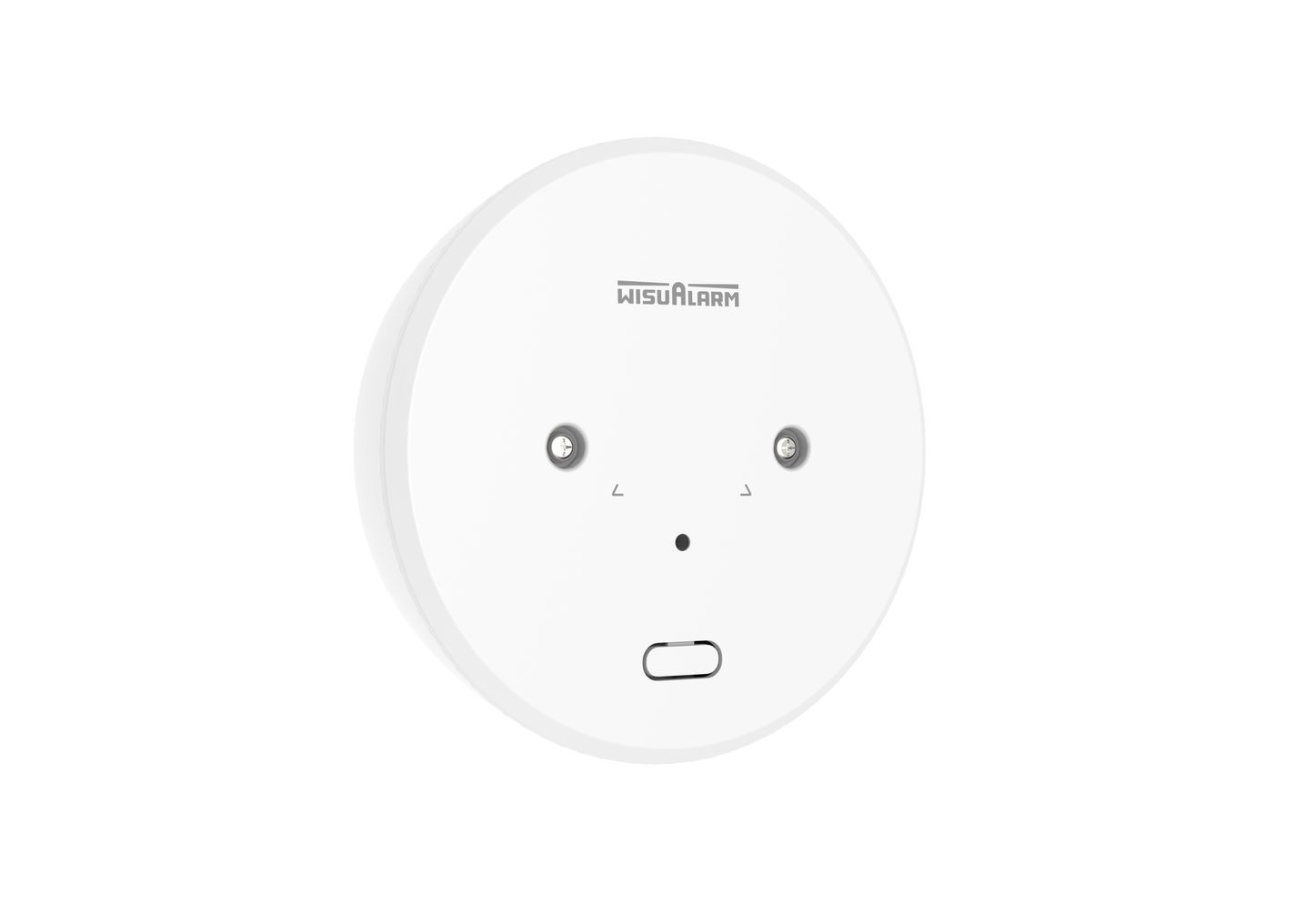

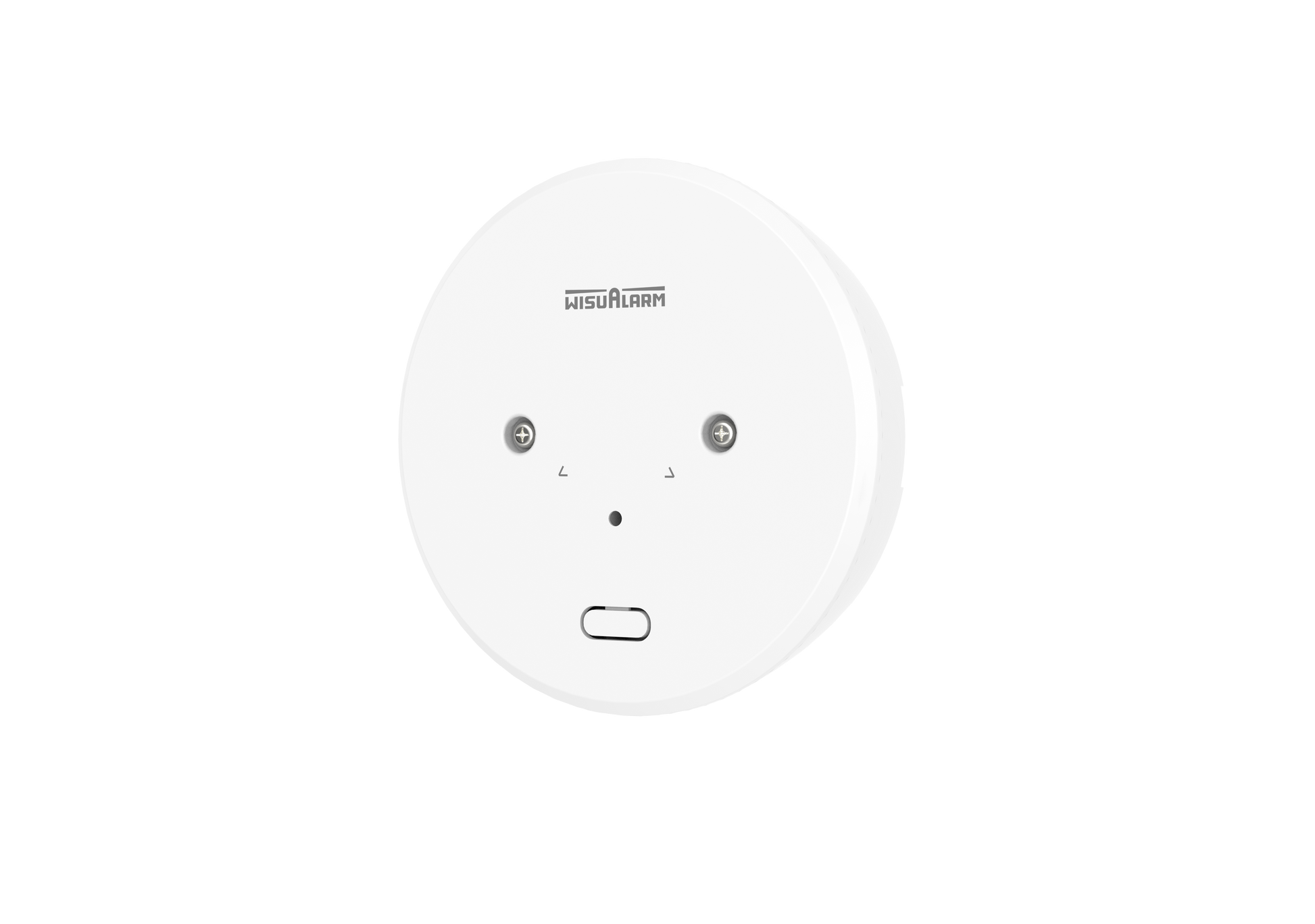

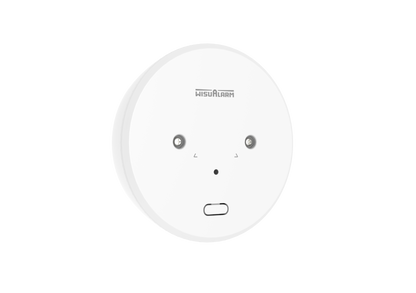

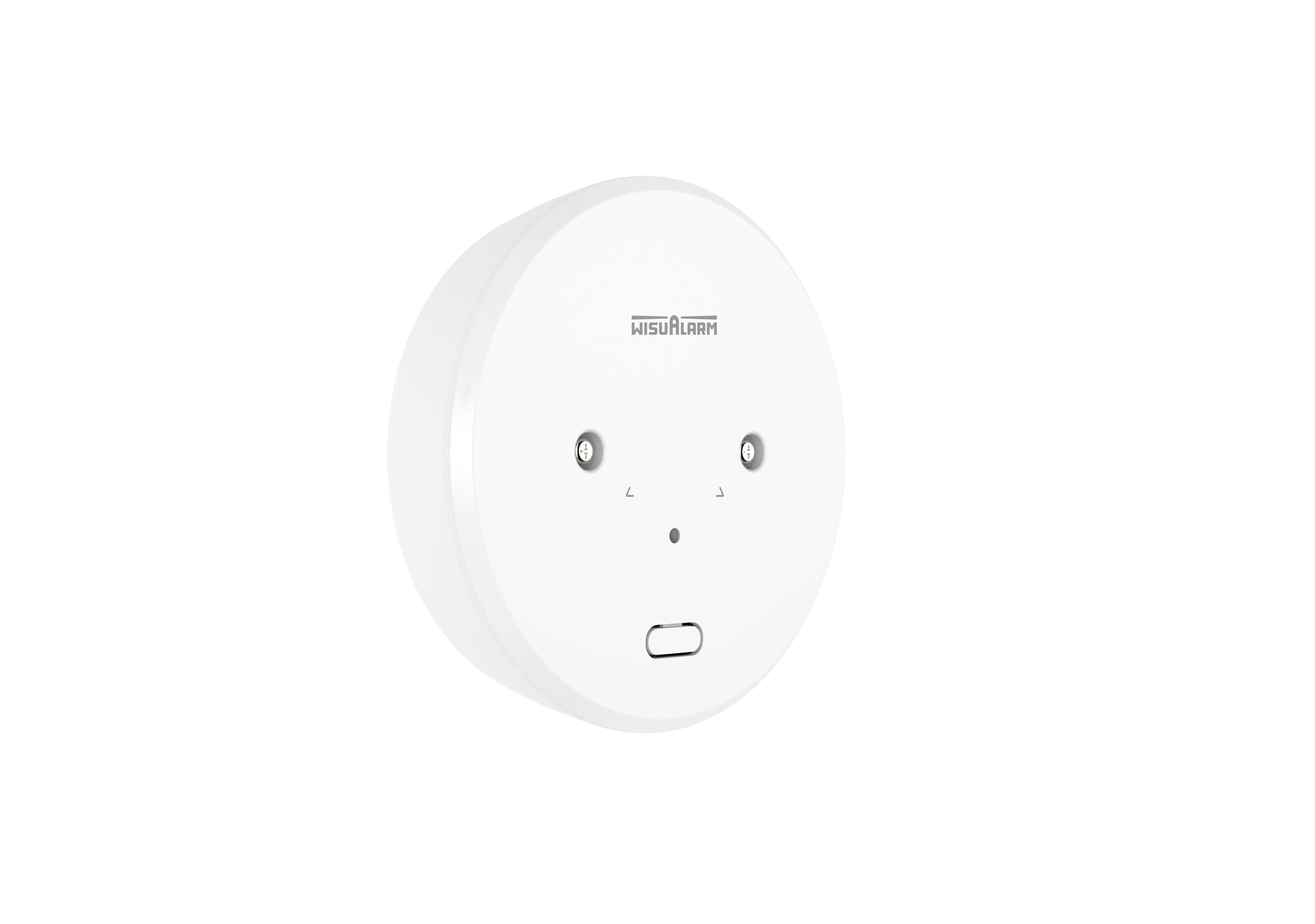

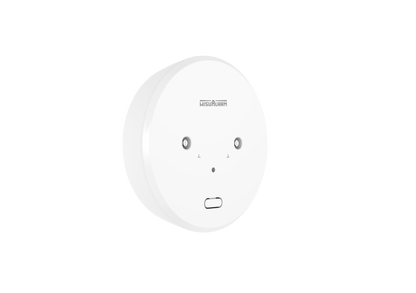

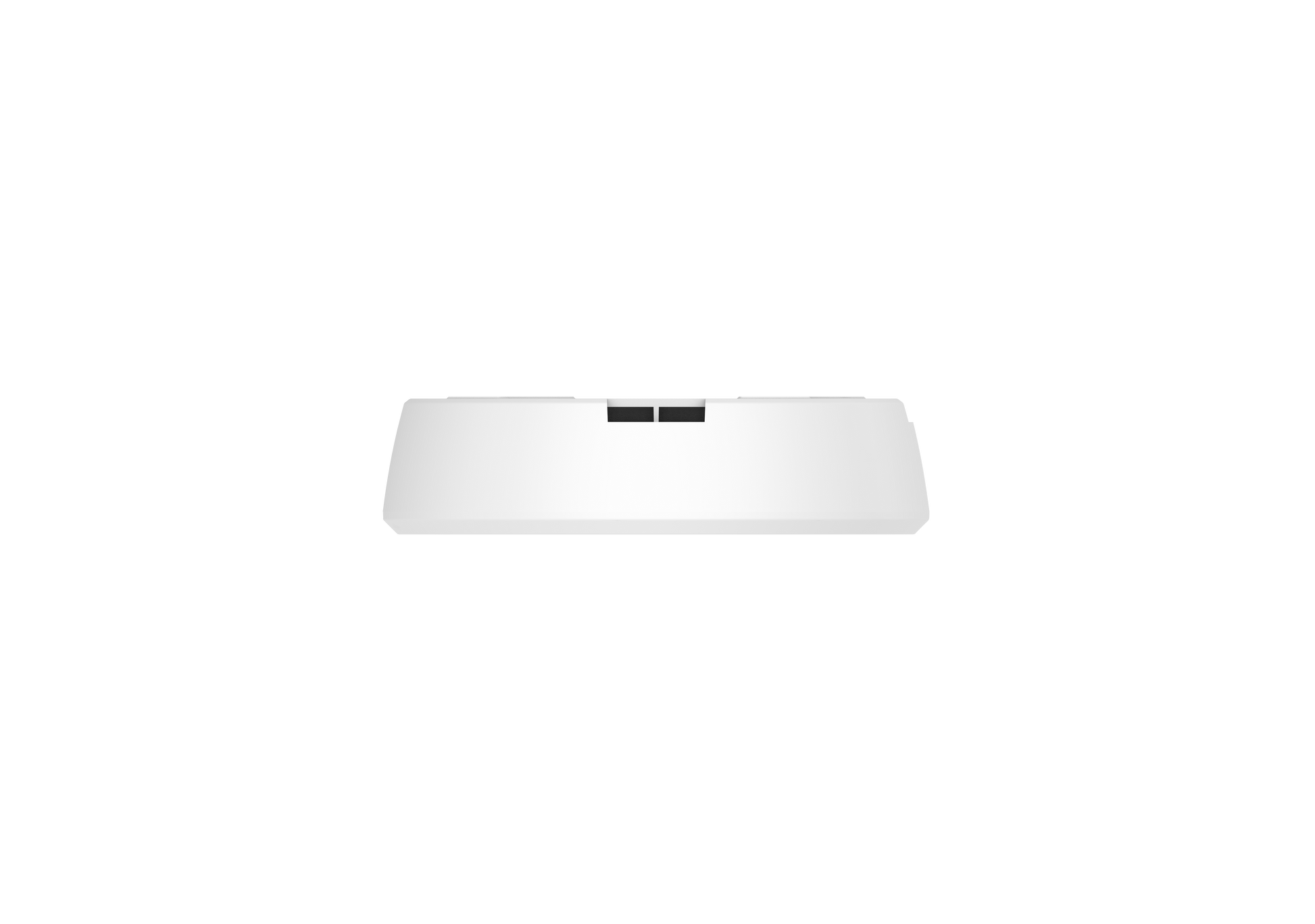

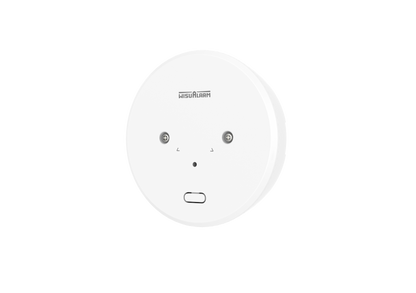

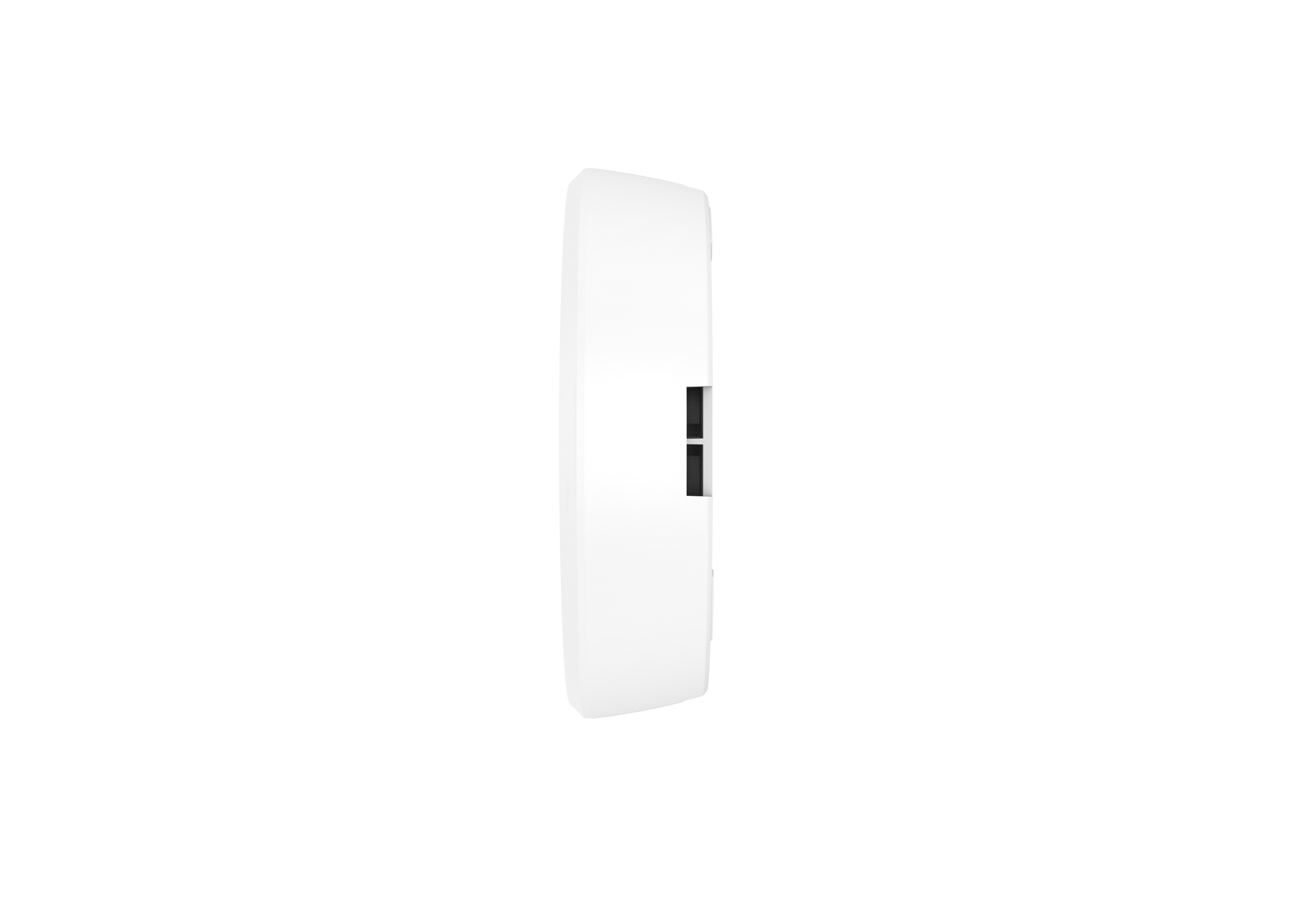

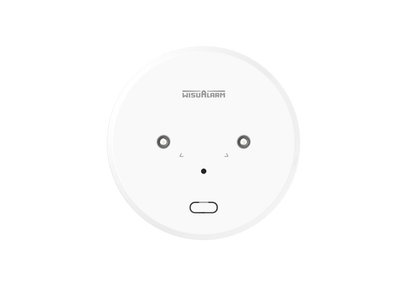

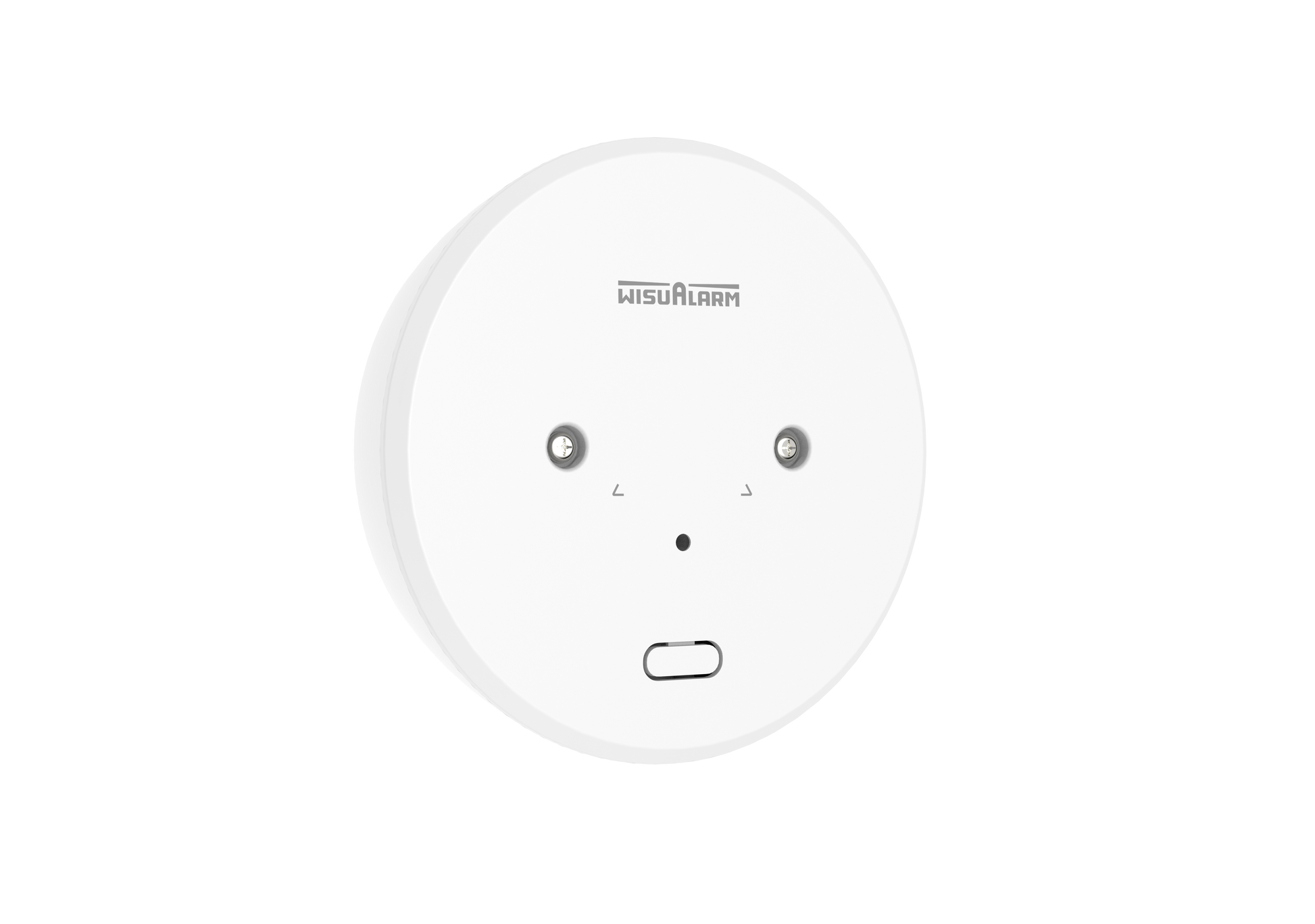

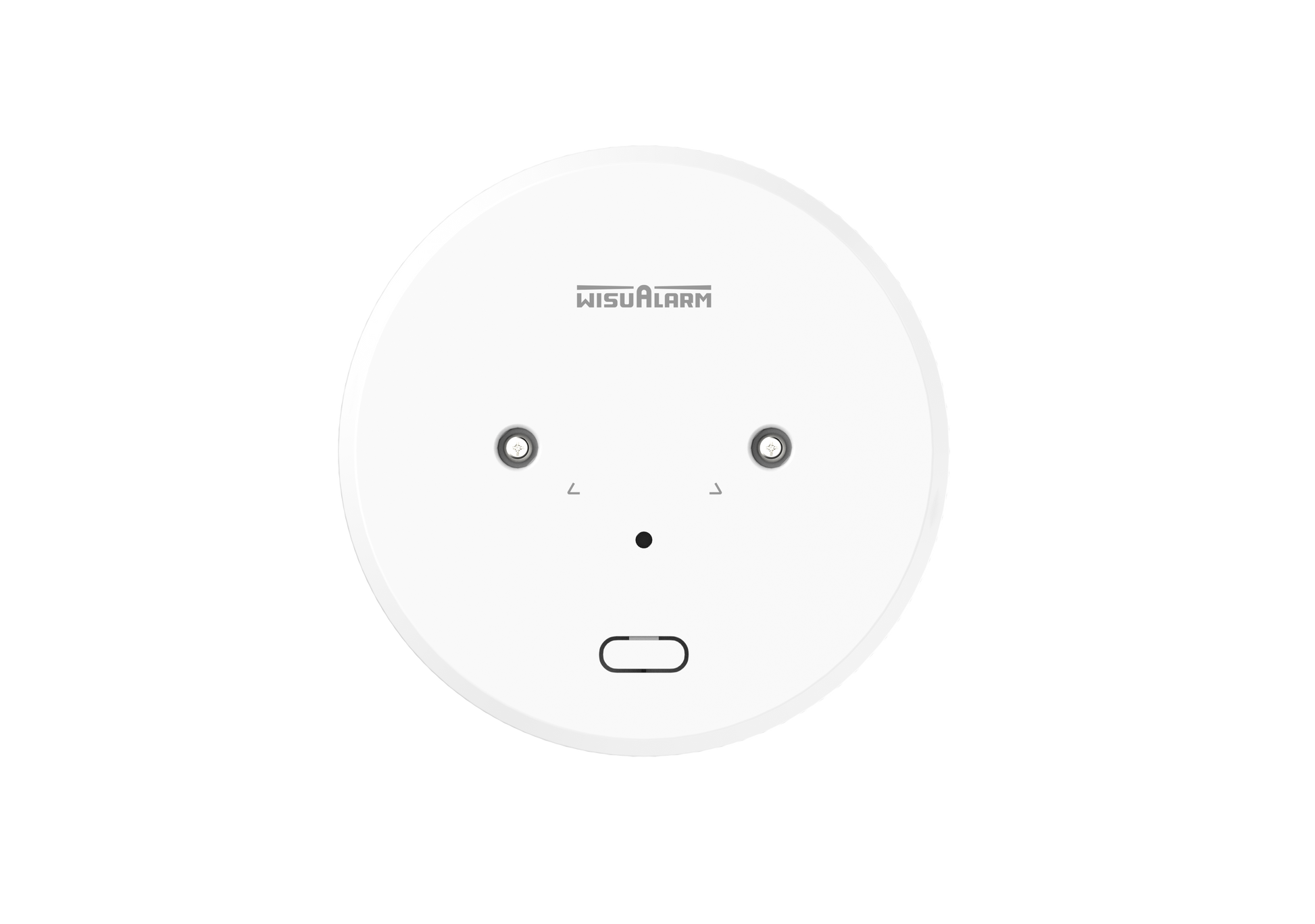

Wireless Interconnected Relay Module
Wireless Interconnected Relay Module
Designed to enable networking with Wisualarm wireless interconnection devices, this module supports interconnection of up to 24 devices. Powered by AC mains, it is equipped with a built-in rechargeable lithium battery backup to ensure operation during the power failure. Featuring a volt-free alarm signal input and a robust 250V AC, 5A resistive output contact rating, it delivers flexible connectivity and dependable performance.
SKU:DHI-HY-MO5MA-R8
Product features
Product features
· Up to 24 alarms Wireless Interconnection
· 9V Rechargeable Lithium Battery For Backup
· One Volt-free Alarm Signal Input
· 250V AC, 5A Resistive Output Contact Rating
Functions
Functions
· Wireless Interconnection
· Backup Power
· Universal Signal Input
· High-Load Relay Output
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
· Power Supply: AC 100–250V
· Battery Back-up: 9V Lithium Rechargeable (Non-replaceable)
· Operating Frequency: 868MHz (-R8) / 925MHz (-R9)
· Radio Signal Range: Up to 1000m in free air (-R8) / 500m (-R9)
· Contact Rating: AC 250V, 5A Resistive (Continuous or Pulse)
· Max Interconnected Units: 24
· Operating Temperature: -10°C to +55°C
· Weight: 232g (Packaging not included)
· Certification: CE, RCM
Out of stock
Couldn't load pickup availability
Collapsible content
Wireless Interconnected Relay Module
Reliable Wireless Alarm Integration
Up to 24 devices interconnection
Supports hardwire interconnection of up to 24 units and wireless interconnection with up to 24 devices via the WisuLink module.
Lithium battery backup
Built-in 10-year rechargeable lithium battery backup helps ensure continuous protection and reduced maintenance.
State-Specific Relay Outputs
Has 2 relays that can be setup to output seperate CO alarm state and Smoke/Heat alarm state
BS5839-6 Network Compatibility
Allows AI Camera output to connect to BS5839 Part 6 network.
