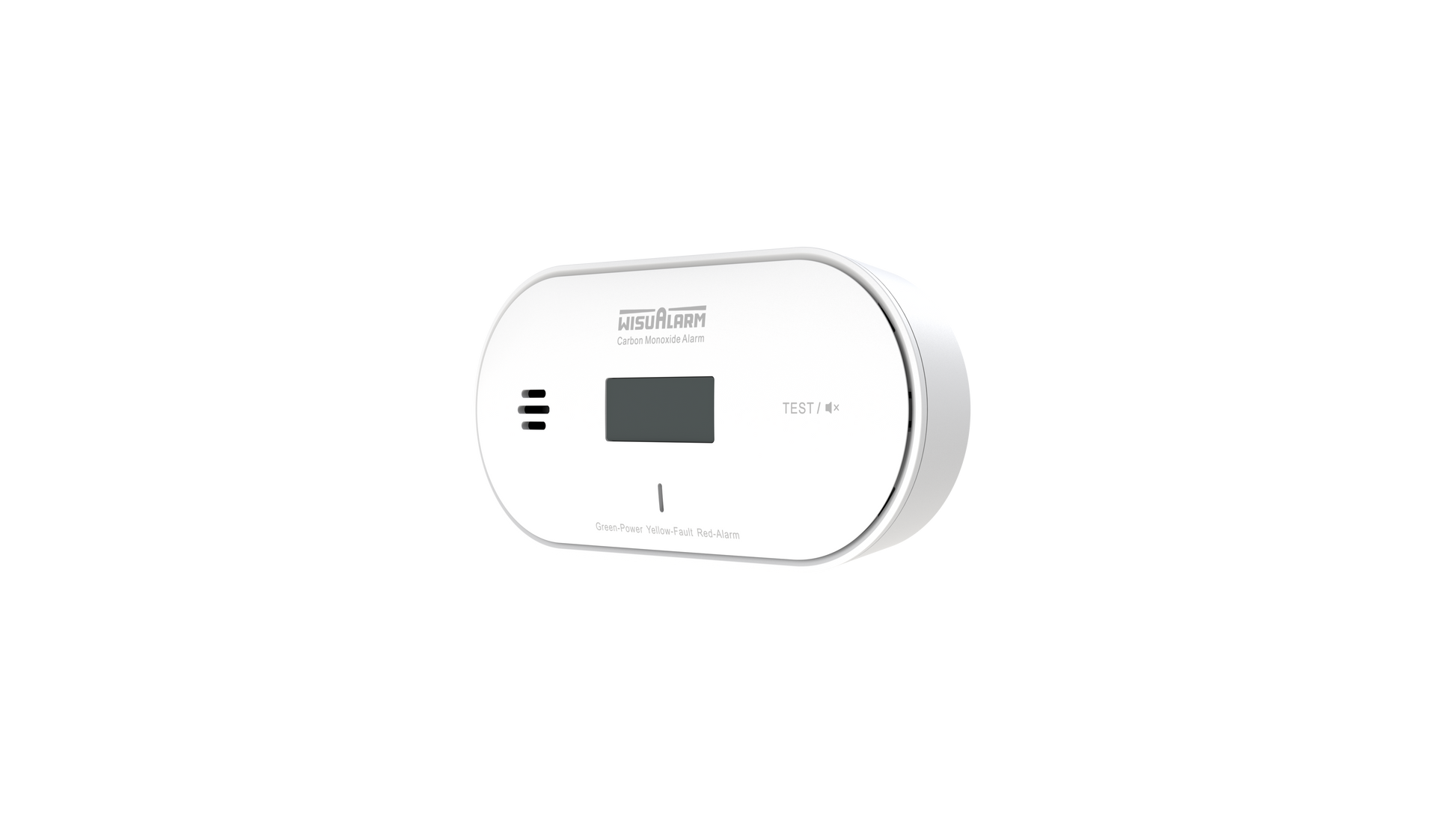

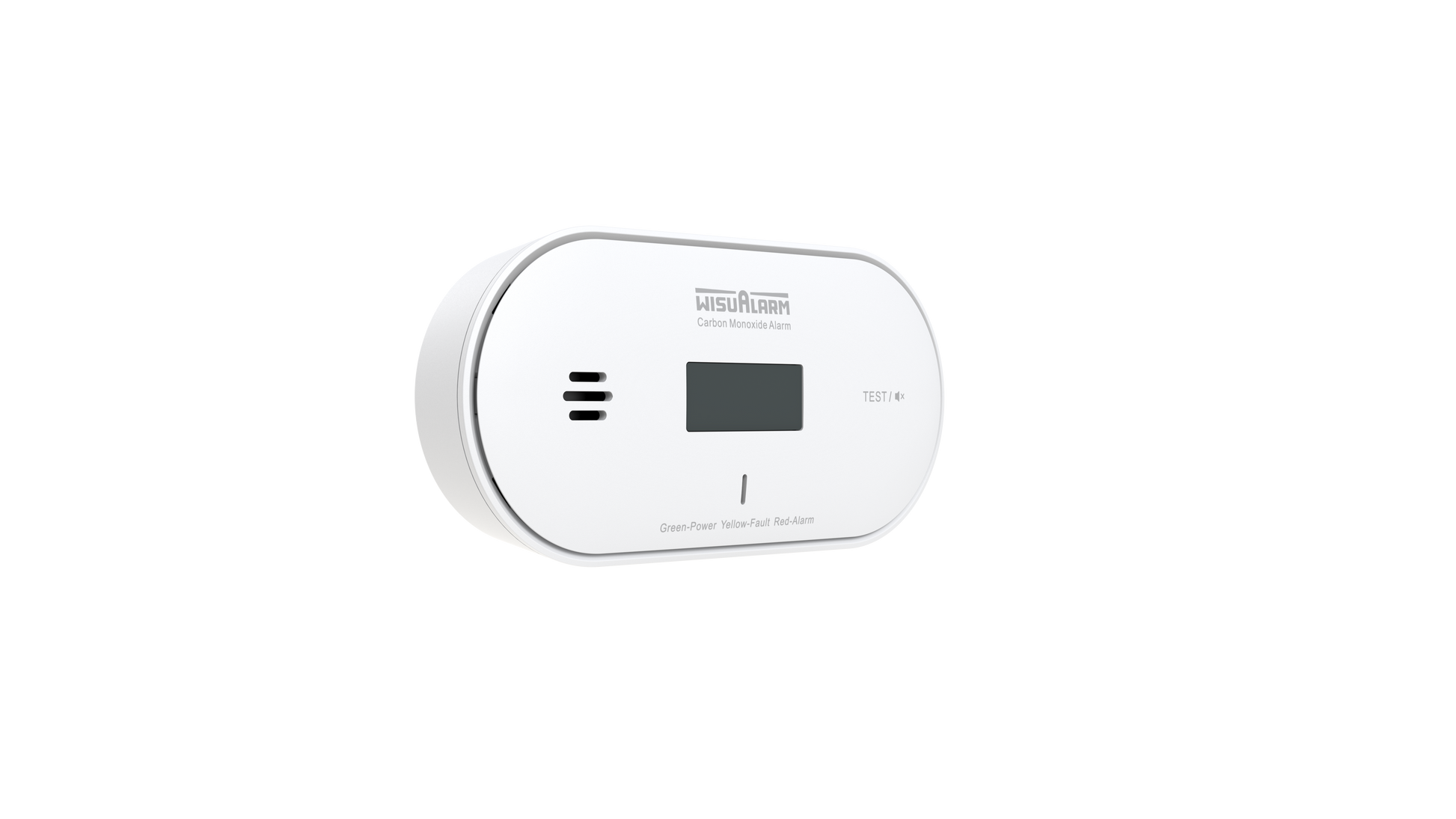

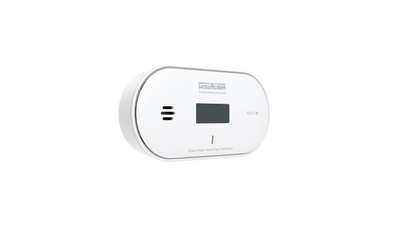

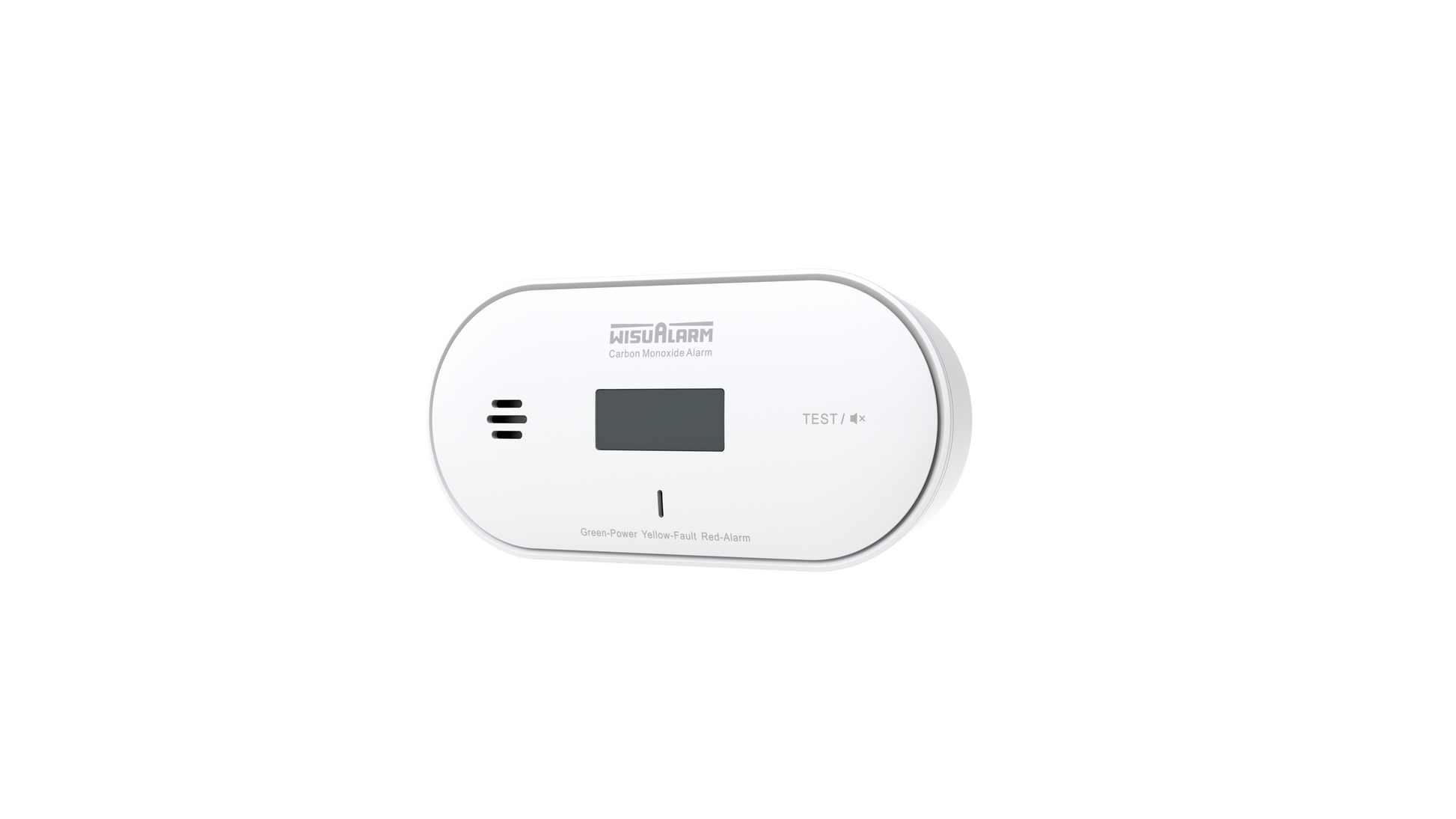

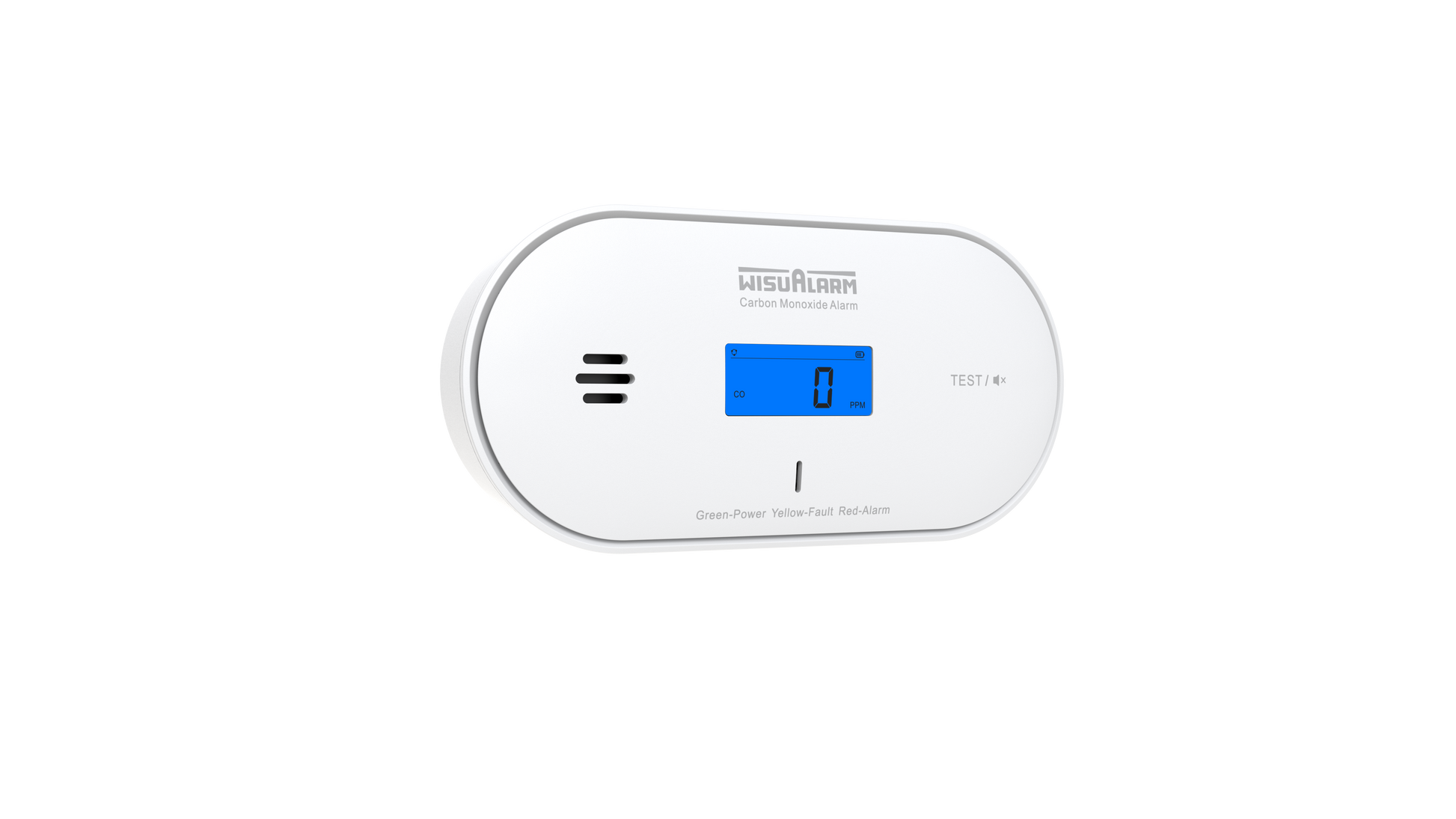

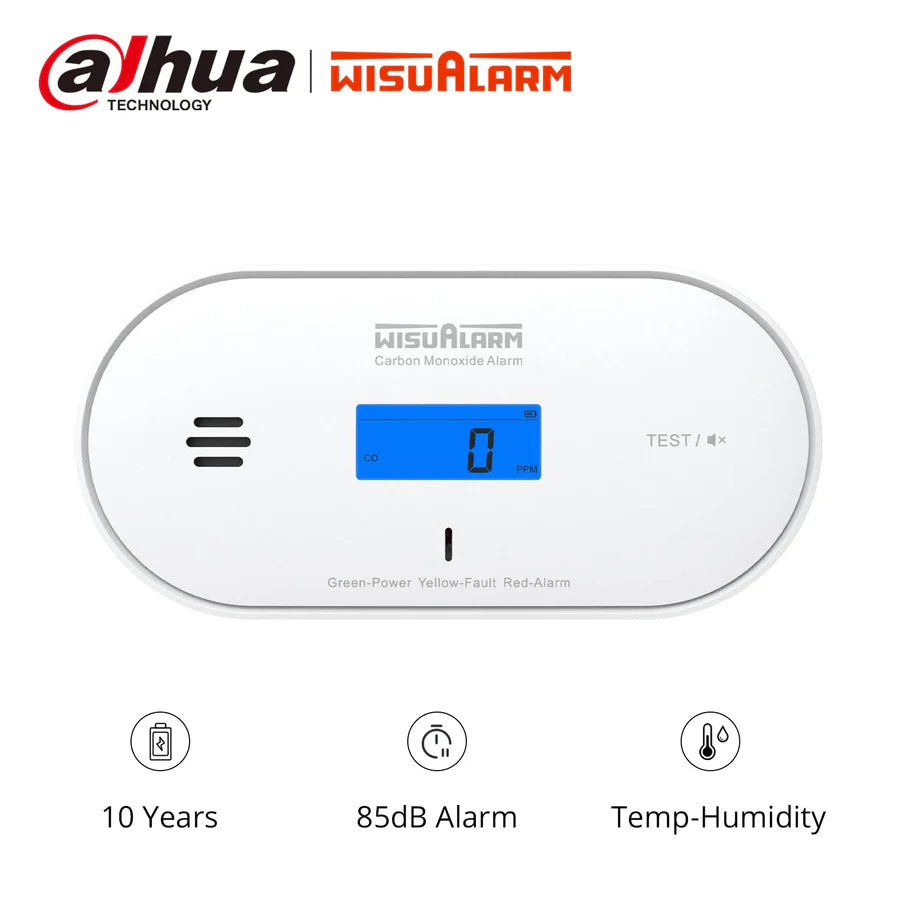

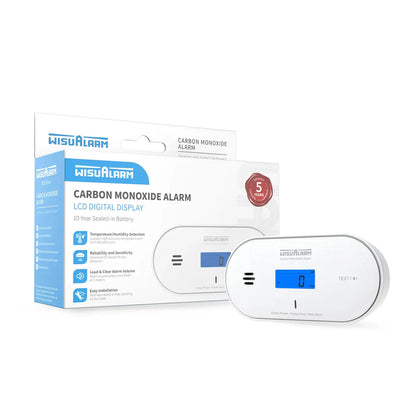

Wireless Interconnected Carbon Monoxide Alarm
Wireless Interconnected Carbon Monoxide Alarm
This device uses an electrochemical CO sensor to deliver accurate detection of CO leakage and respond quickly. It features 10-year battery life with low power consumption for long-term durability. The clear LCD screen displays real-time CO concentration, peak values, and alternates temperature and humidity readings without the presence of CO, supported by a blue backlight for easy viewing. A loud 85 dB alarm, three LED indicators, one-click silence and self-test functions ensure user-friendly operation. With wireless interconnection for up to 24 devices and end of life alerts, it provides reliable, full-coverage protection.
SKU:DHI-HY-GC30A-R8
Product features
Product features
· Sensor Type: Electrochemical
· Alarm Volume: Over 85dB (A) at 3 m (9.84 ft)
· Alarm Response: 50ppm: 60–90 min | 100ppm: 10–40 min | 300ppm: <3 min
· Display: LCD with Red / Yellow / Green LED indicators
· Wireless Range: Up to 1000 m in free air (868MHz)
· Interconnection: Up to 24 devices

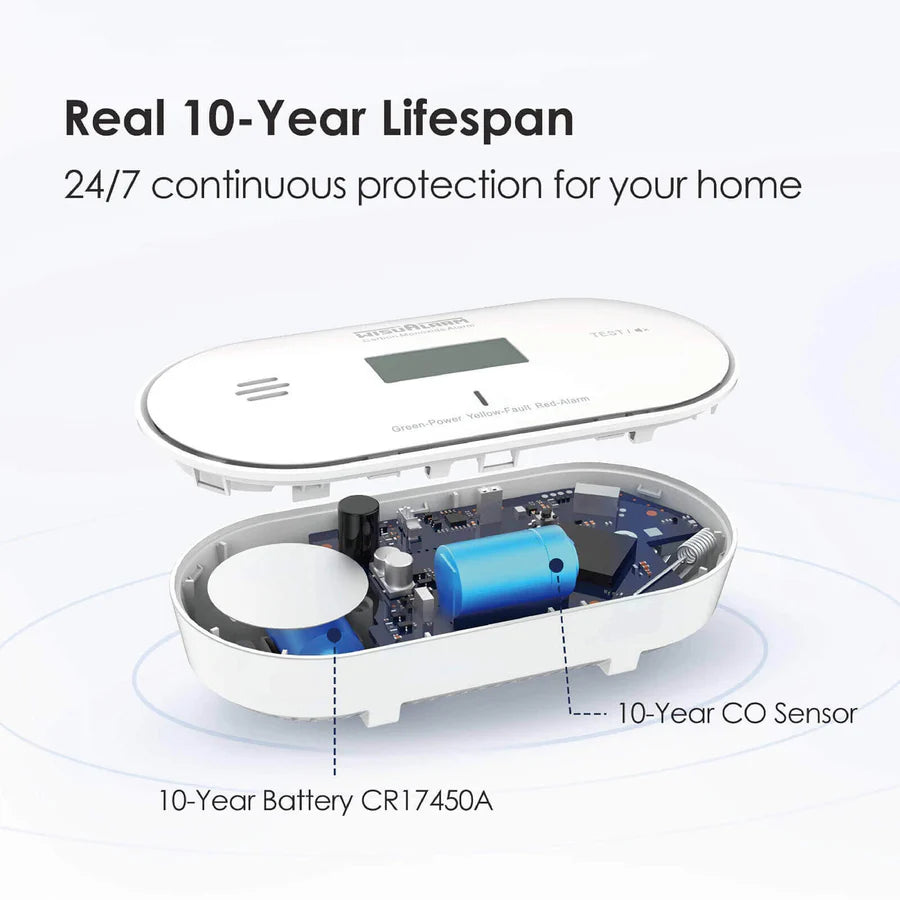

· Battery Life: 10 years (3V CR17450A lithium, non-replaceable)
· Operating Temperature: –10°C to +55°C (+14°F to +131°F)
· Operating Humidity: ≤95% RH (non-condensing)
· Certifications: TUV, CE, UKCA, RCM, PSTI
Functions
Functions
Electrochemical CO Sensor: Accurate detection & fast response
Battery Life: 10-year battery life with low power consumption and long standby time
Temp & Humidity Display: Alternates on screen when no CO is present
Blue Backlight LCD: Easy to read in any lighting condition

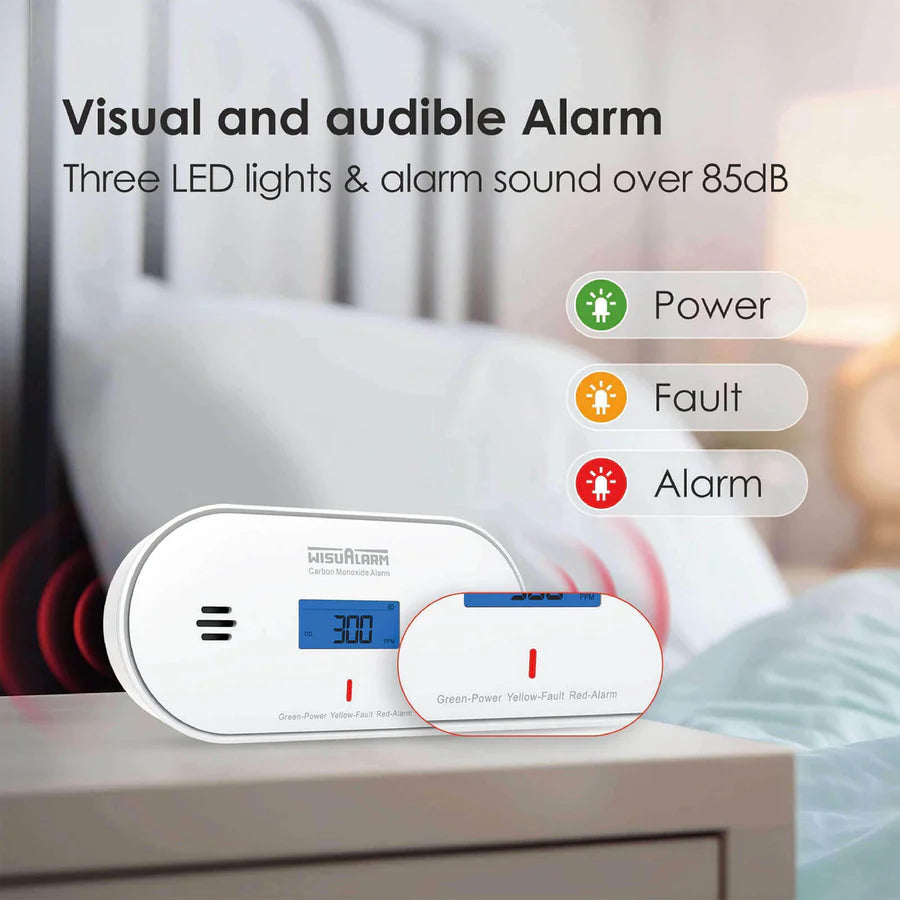

3 LED Indicators: Clear working status at a glance
85dB(A) Buzzer: Loud alarm audible at 3 m

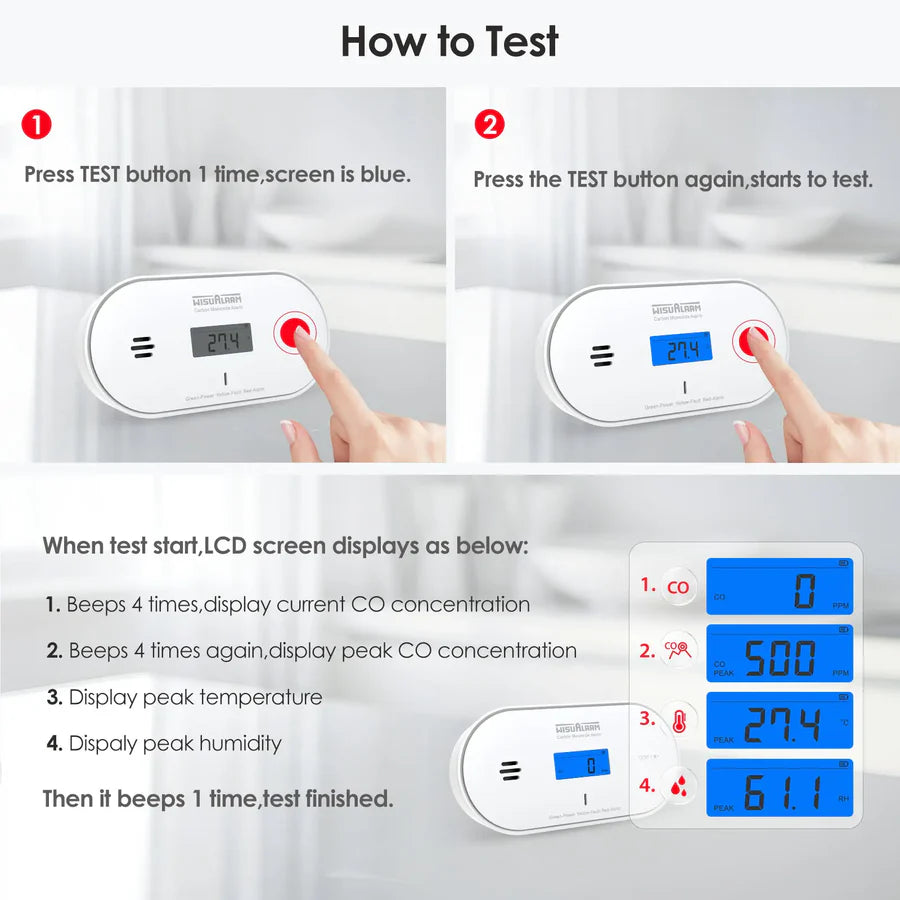

Smart Alerts: Low battery warning, one-click silence & self-test
Peak CO Level Display: Flags extra potential hazards
Wireless Interconnect: Links up to 24 devices
End-of-Life Warning: LCD + buzzer + LED notification
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
· Working Voltage DC24V
· Working Current Monitoring current: ≤ 150μA; Operating current: ≤ 45mA
· Wiring Two-wire, polarity-free
· Address Range 1–254
· Communication Distance ≤1500 m
· Operating Temperature –10°C to +55°C (+14°F to +131°F)
· Dimensions 90 mm × 90 mm × 37 mm (2.7" × 2.7" × 1.11")
· Weight (with base) 95 g (0.21 lb)
· Compliance Standard CE
Out of stock
Couldn't load pickup availability
Collapsible content
Wireless Interconnected Carbon Monoxide Alarm
Smart CO alarm with safe monitoring
10-year battery with low power consumption
Designed for durability, this product ensures constant protection and lomg-term operation.
10-year battery with low power consumption
Designed for durability, this product ensures constant protection and long-term operation.
Comprehensive Display & Environment Monitoring

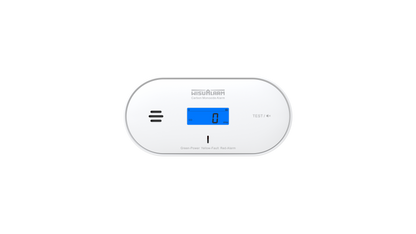

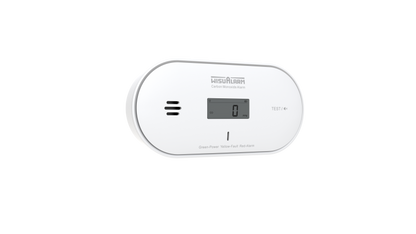

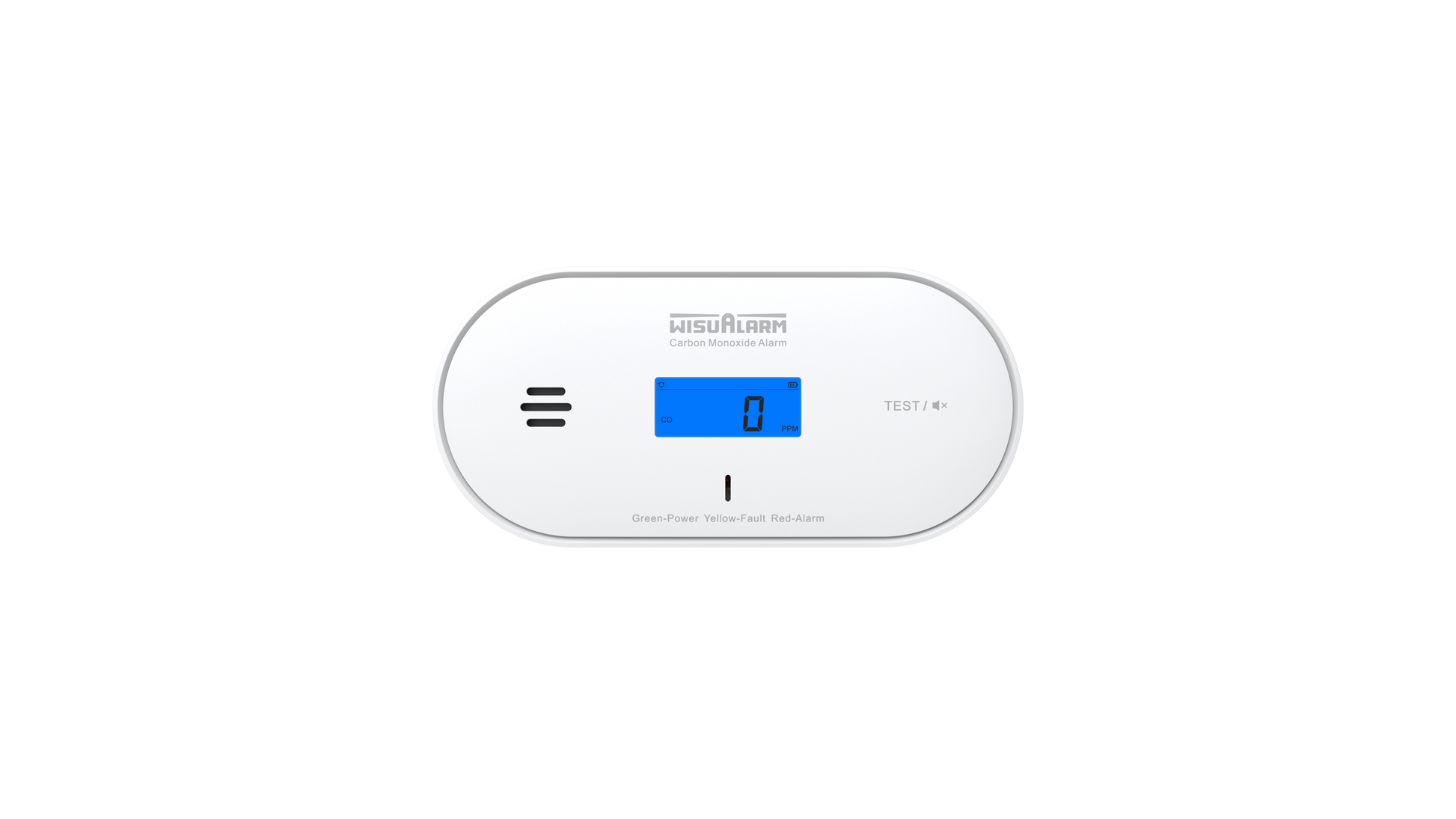

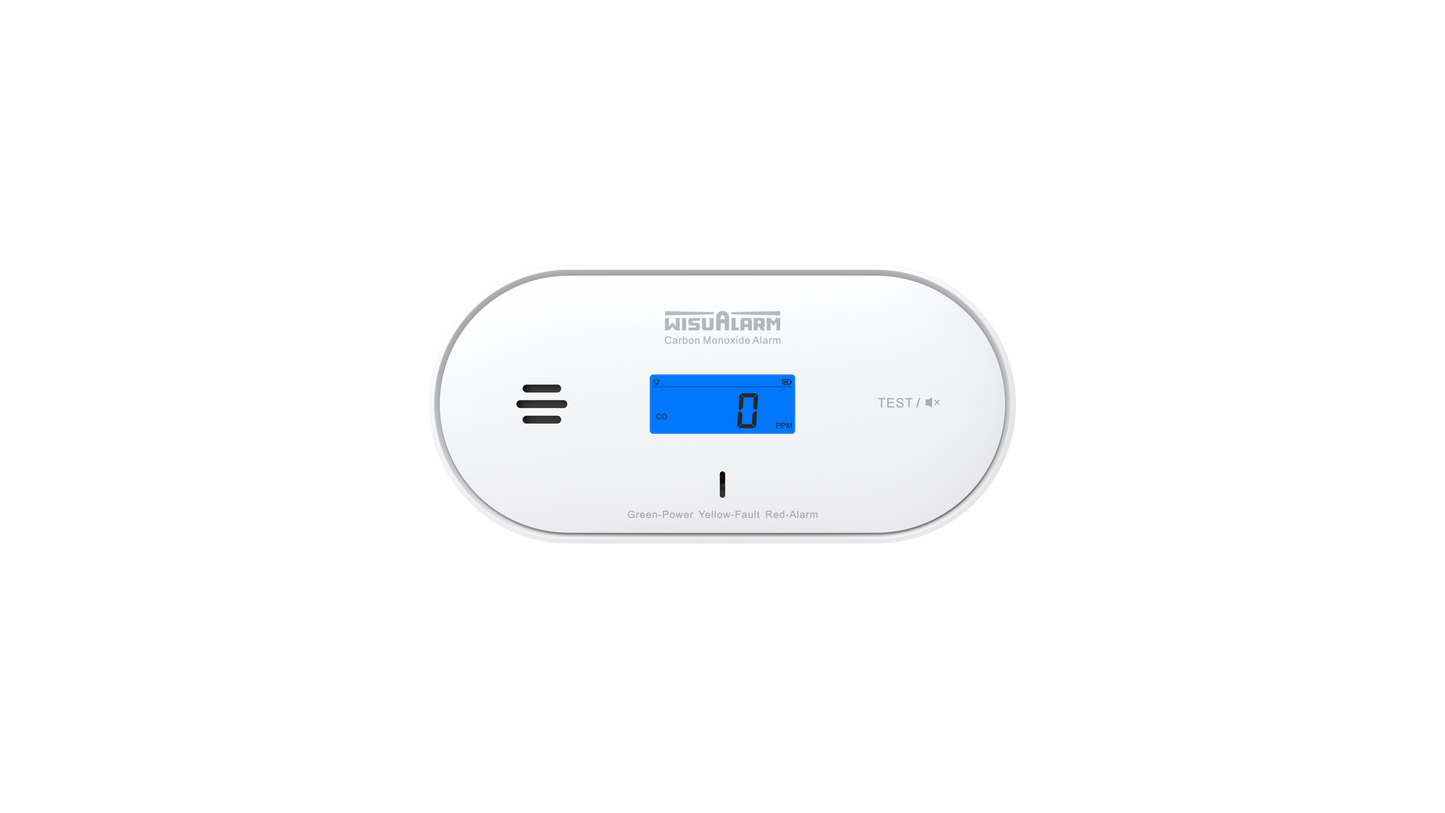

LCD screen shows CO concentration, peak level, temperature and humidity with backlight support.
Advanced alerts & great connectivity
Equipped with a built-in buzzer with alarm volume 85dB, three LED indicators, end of life warning and wireless connection, this product offers comprehensive safety coverage.
