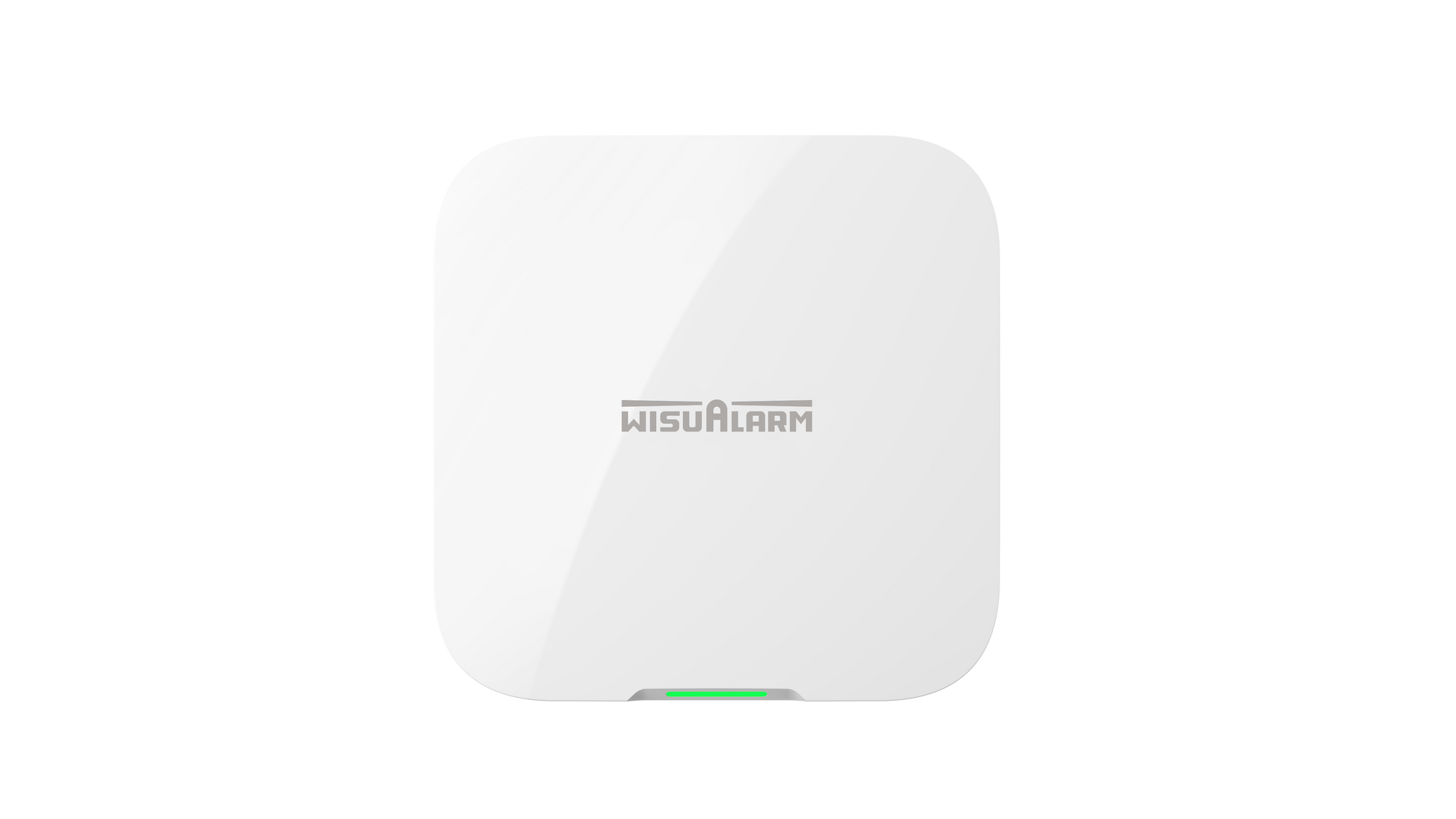

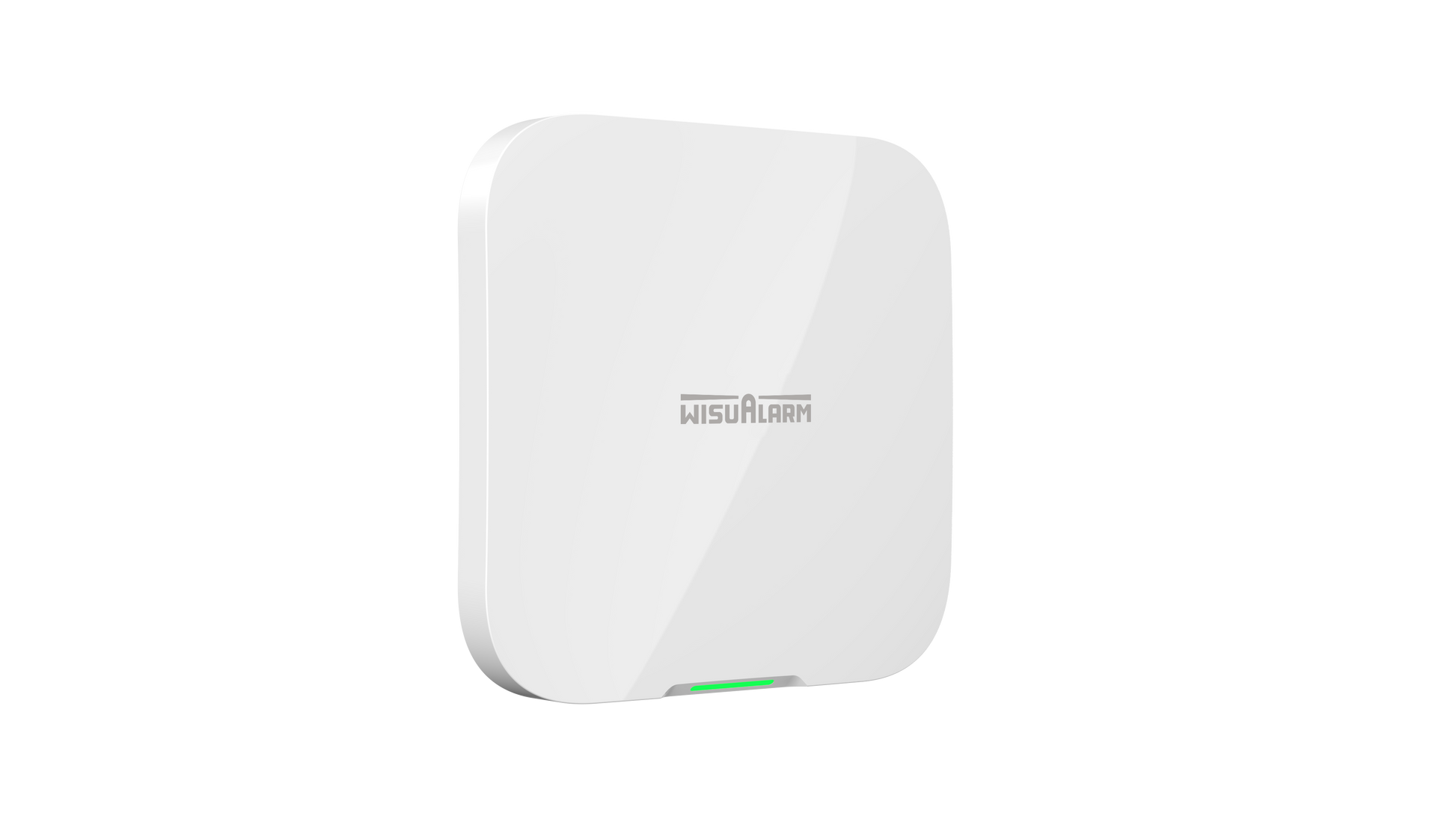

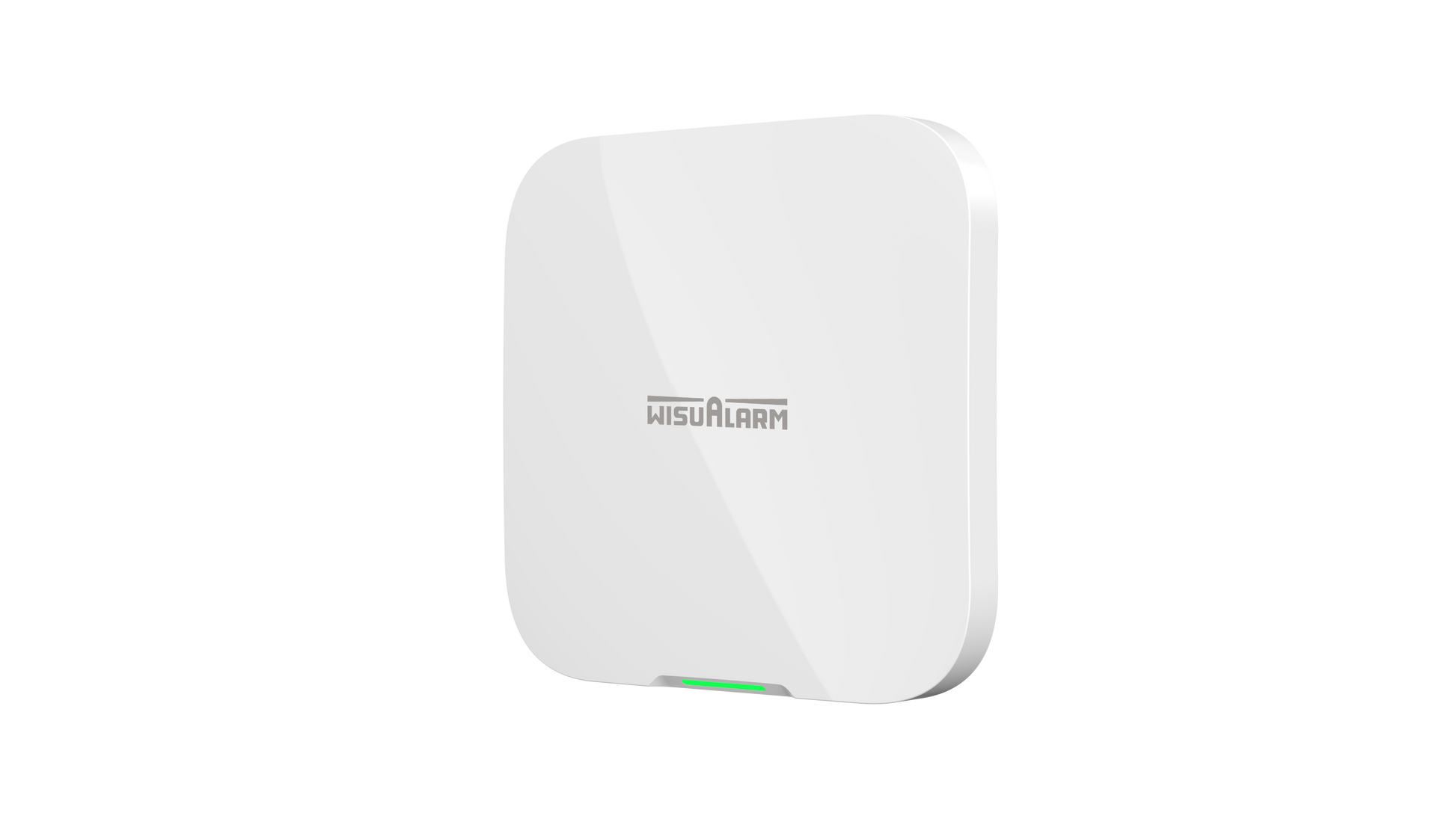

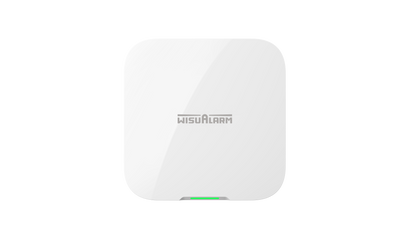

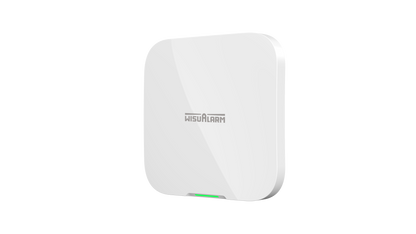

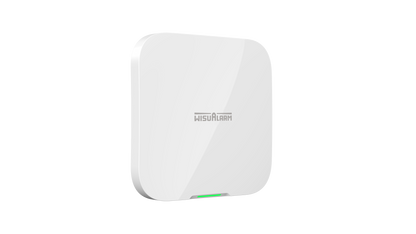

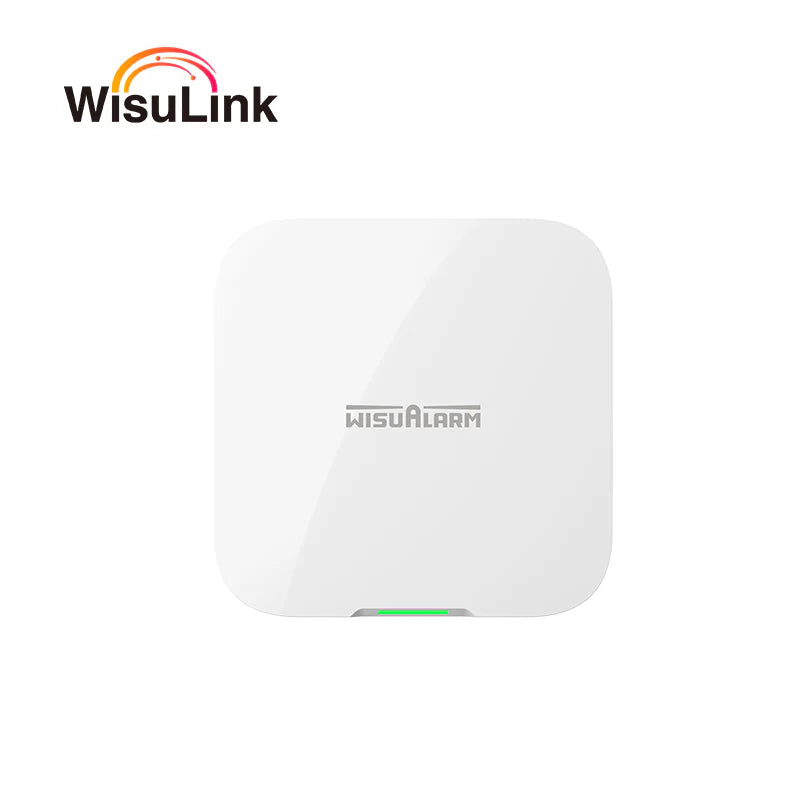

Wireless Mains Powered Gateway (Pro)
Wireless Mains Powered Gateway (Pro)
Compatible with WisuLink wireless interconnected products, the wireless gateway delivers reliable and flexible connectivity. Supporting multiple communication based on Ethernet, Wi-Fi, and 4G, it ensures constant data transmission. Powered by AC with a rechargeable lithium battery back-up, it maintain operation even in power failure. With OTA upgrades and 1 LED indicator to illustrate the status of power, alarm and internet connectivity, it offers convenience for users to monitor system performance.
SKU:DHI-HY-GW02A
Product features
Product features
· Compatible with WisuLink wireless interconnected products
· Multiplex communication based on Ethernet, Wi-Fi, and 4G
· AC power supply accompanied by rechargeable lithium battery back-up
· Support OTA software upgrades
· Support 1 LED indicator to illustrate the status of Power, Alarm and Internet Connectivity
Functions
Functions
- Multi-Network Communication
- WisuLink Wireless Compatibility
- Dual Power Supply
- OTA Remote Upgrades
- Clear Status Indication
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
- Power Supply: AC 100V–240V with 4,750 mAh lithium battery backup
- Wireless Protocol: Wi-Fi 2.4 GHz (IEEE 802.11b/g/n), range up to 50 m
- RF Frequency: 868 MHz / 925 MHz
- Max Connected Devices: Up to 128 WisuLink wireless interconnected products
- Alarm: 70 dB audible + visual alarm
- Dimensions: 175 × 175 × 36 mm / Weight: 500 g
- Operating Conditions: -10°C to +55°C, ≤95% RH
- Certifications: CE, UKCA, PSTI, RCM
Out of stock
Couldn't load pickup availability
Collapsible content
Wireless Mains Powered Gateway (Pro)
Mains Powered Gateway with rechargeable battery backup
Flexible Wireless Interconnection
Supports Wireless interconnected with maximum of 128 WisuLink RF devices.
