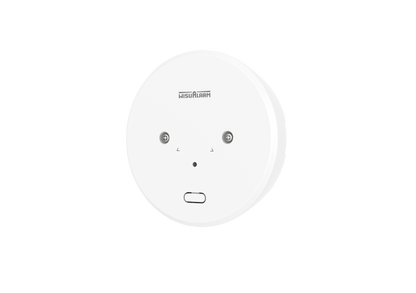

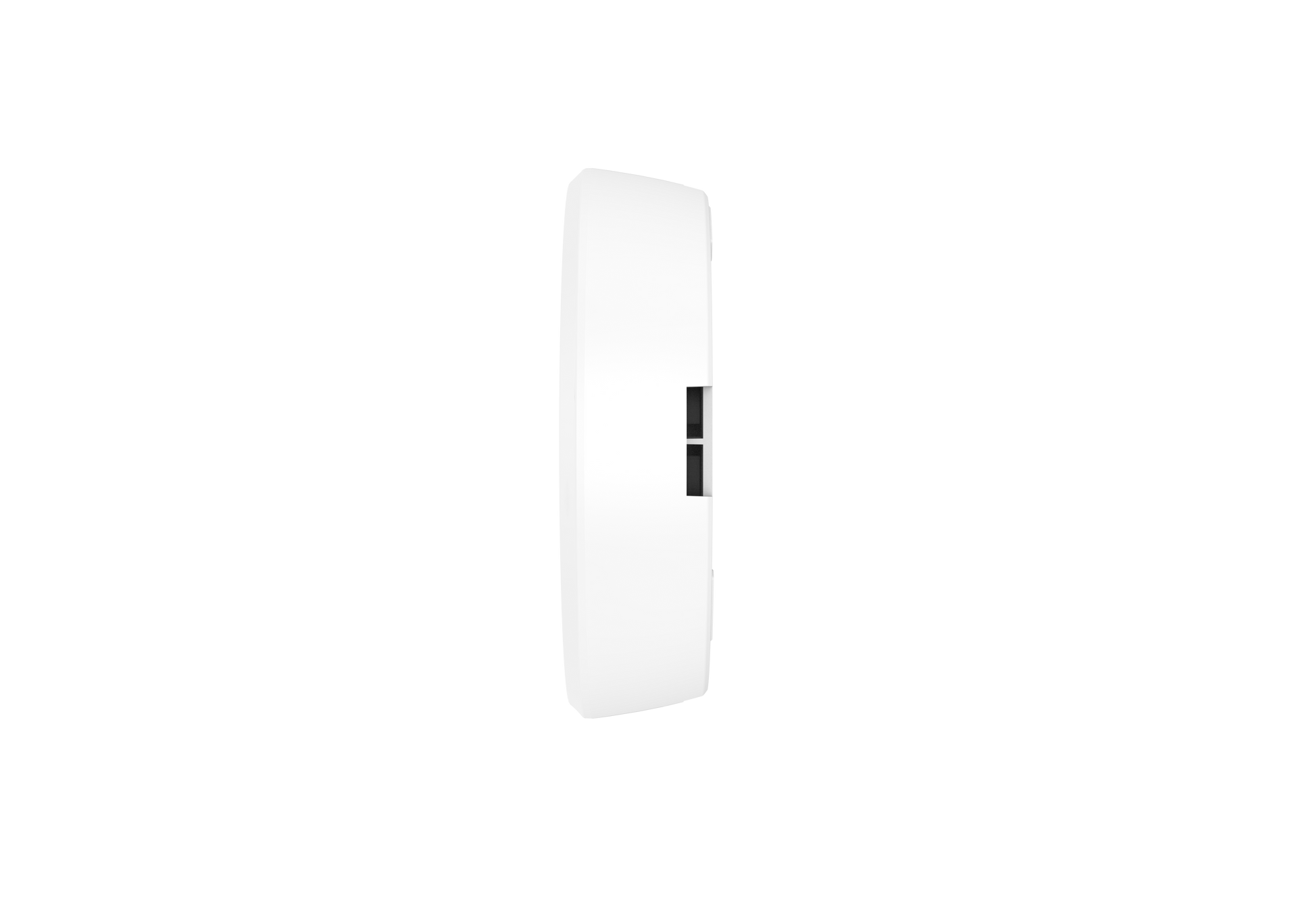

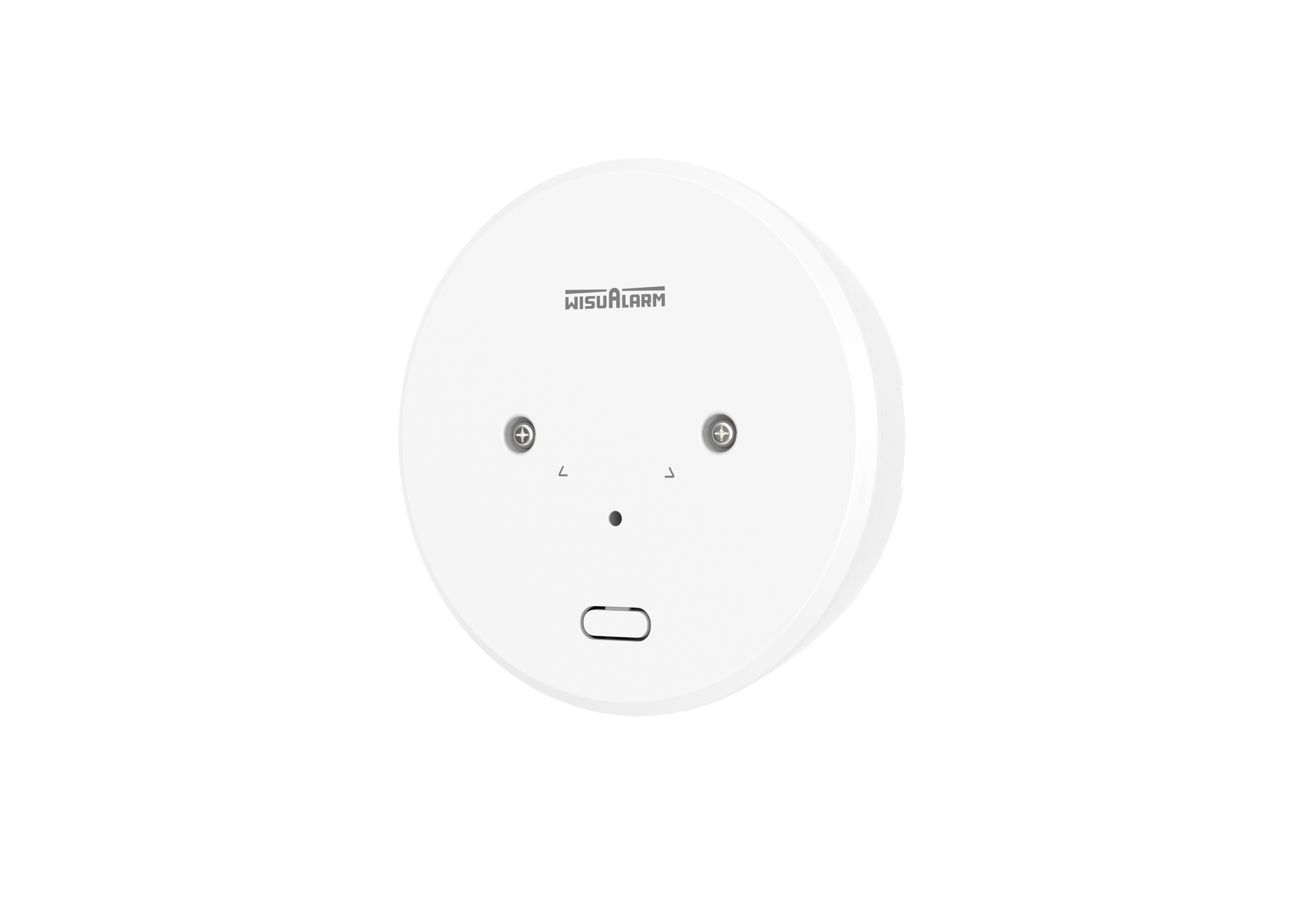

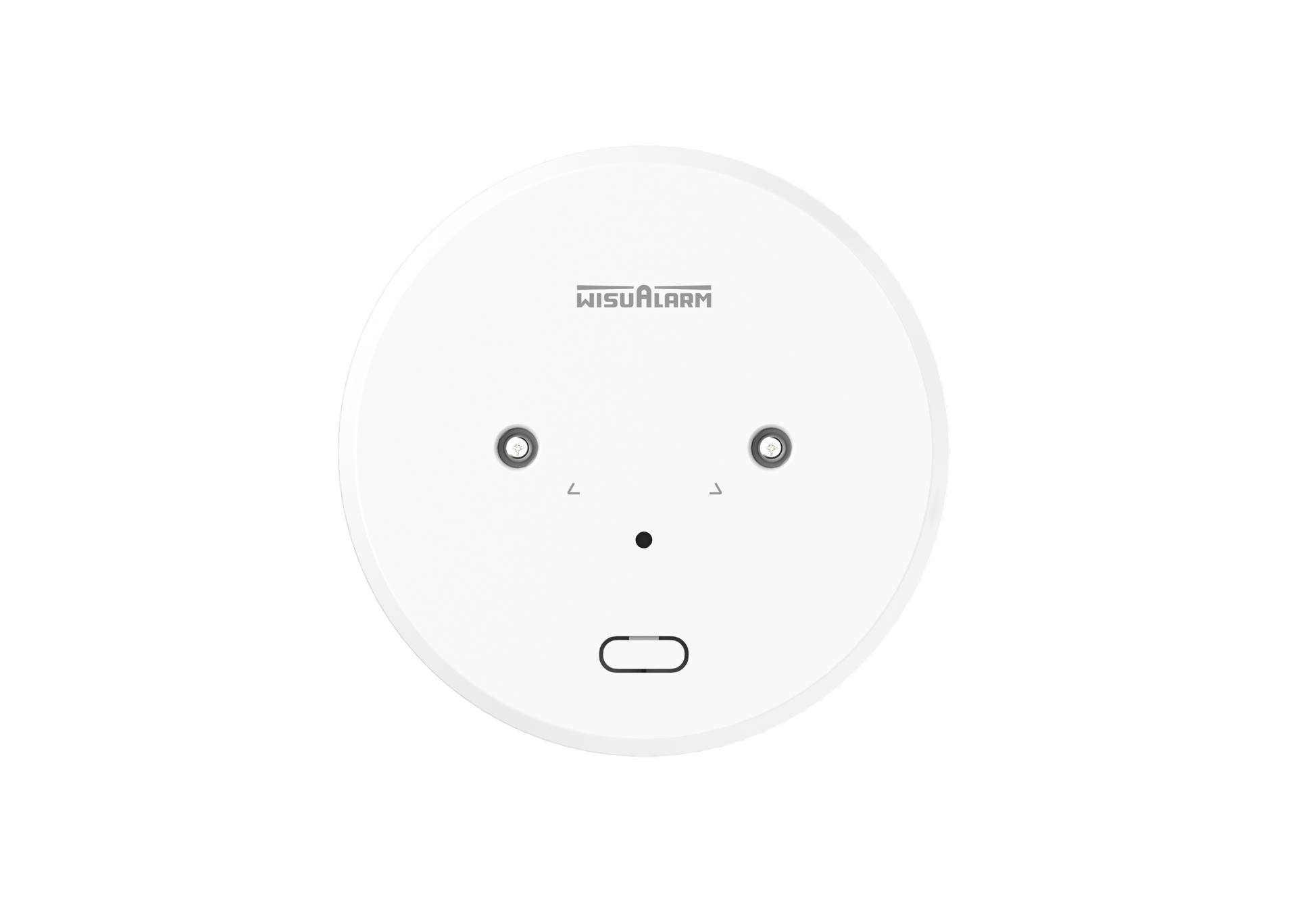

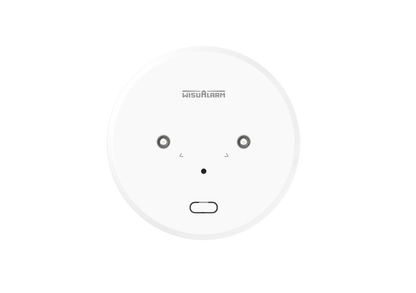

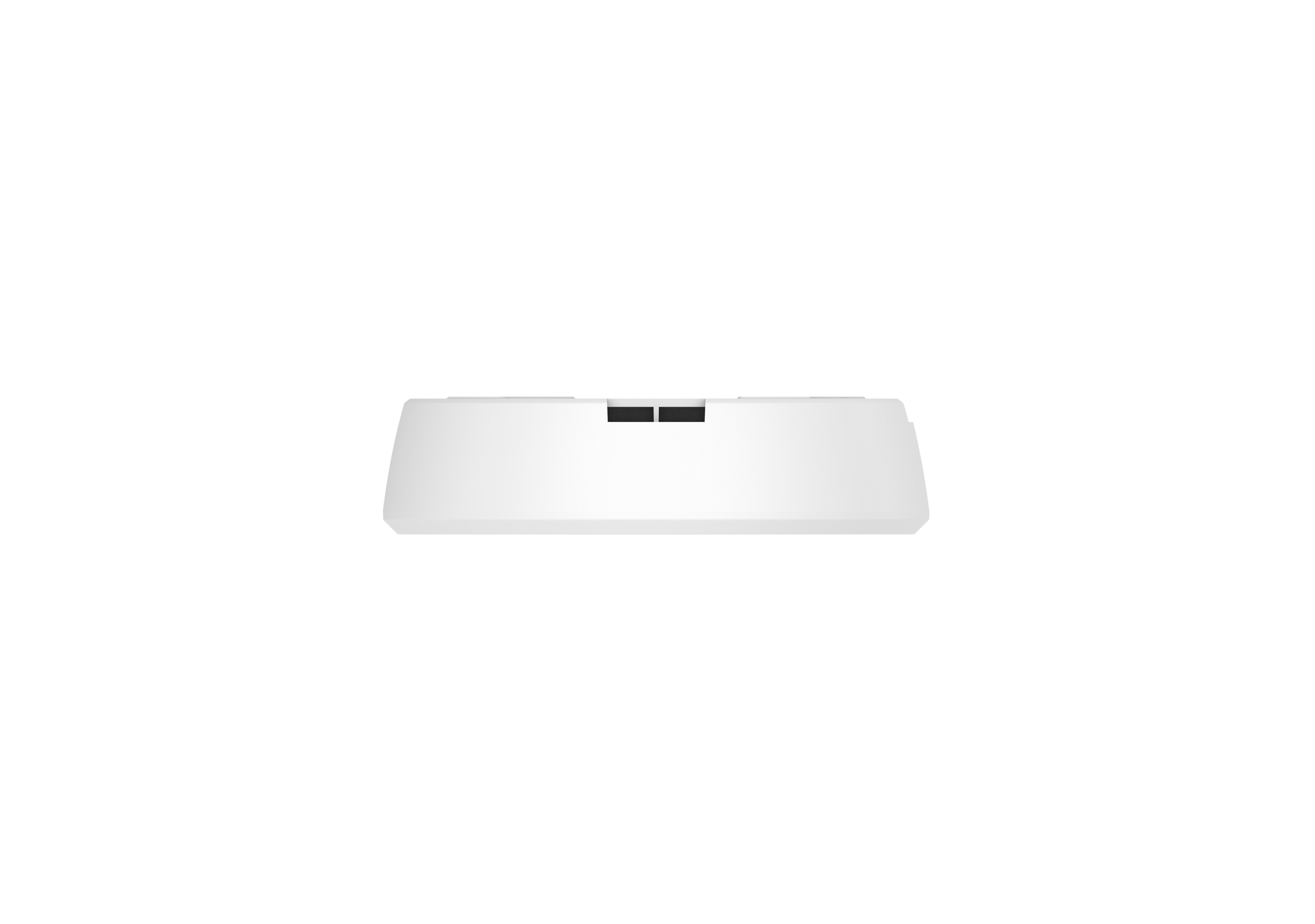

Hard Wired Interconnected Relay Module

Hard Wired Interconnected Relay Module

£34.00 GBP
£34.00 GBP
Sale Sold out
Shipping calculated at checkout.

Supports wired interconnection of up to 24 Wisualarm mains-powered devices for reliable alarm system networking. Featuring one dry-contact input and two volt-free NO/NC relay outputs, the module provides flexible integration with compatible alarm equipment. A built-in 9V rechargeable lithium battery helps maintain operation during mains power failures, while AC 250V, 5A resistive contact capacity supports a wide range of applications.

DHI-HY-MO3MH

Product features

· Up to 24 alarms Wired Interconnection
· 9V Rechargeable Lithium Battery For Backup
· One Volt-free Alarm Signal Input
· 250V AC, 5A Resistive Output Contact Rating

Functions

· Wireless Interconnection
· Backup Power
· Universal Signal Input
· High-Load Relay Output

Service

5-YEAR WORRY-FREE Warranty

Technical Specifications

  • Power Supply: AC 100–250V; 9V Lithium rechargeable battery backup (non-replaceable)
  • Battery Life: 700 hours standby (fully charged, no alarm); Standby current: 20μA
  • Interconnection: Up to 24 units interconnected
  • Relay Output: 2 volt-free contacts (NO/NC), AC 250V / 5A resistive
  • Input: 1 dry contact input
  • Operating Conditions: -10°C to +55°C; ≤95% RH (non-condensing)
  • Weight: 232 g (packaging not included)
  • Certifications: CE, RCM

In Stock
View full details

Expandable Wired Interconnection

Supports hardwire interconnection of up to 24 units and wireless interconnection with up to 24 devices via the WisuLink module.

Backup Power Assurance

Built-in 10-year rechargeable lithium battery backup helps ensure continuous protection and reduced maintenance.

 State-Specific Relay Outputs

Has 2 relays that can be setup to output seperate CO alarm state and Smoke/Heat alarm state
