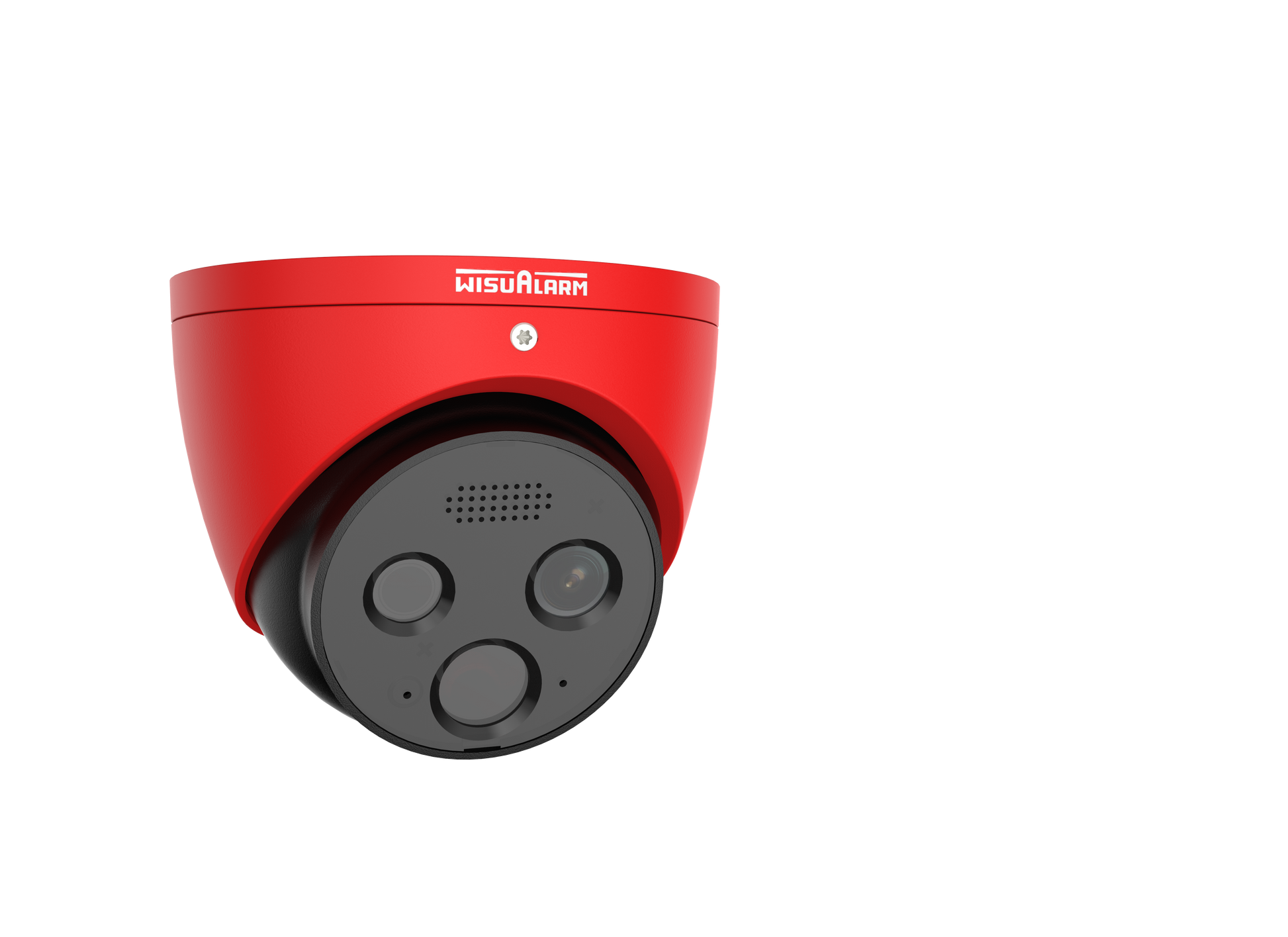

• DHI-HY-FT431LDP-TD1F4-MB_Flame Detection Eyeball Network Camera_main_image1

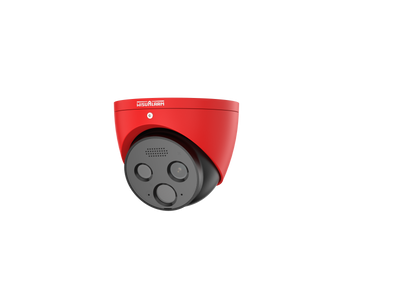

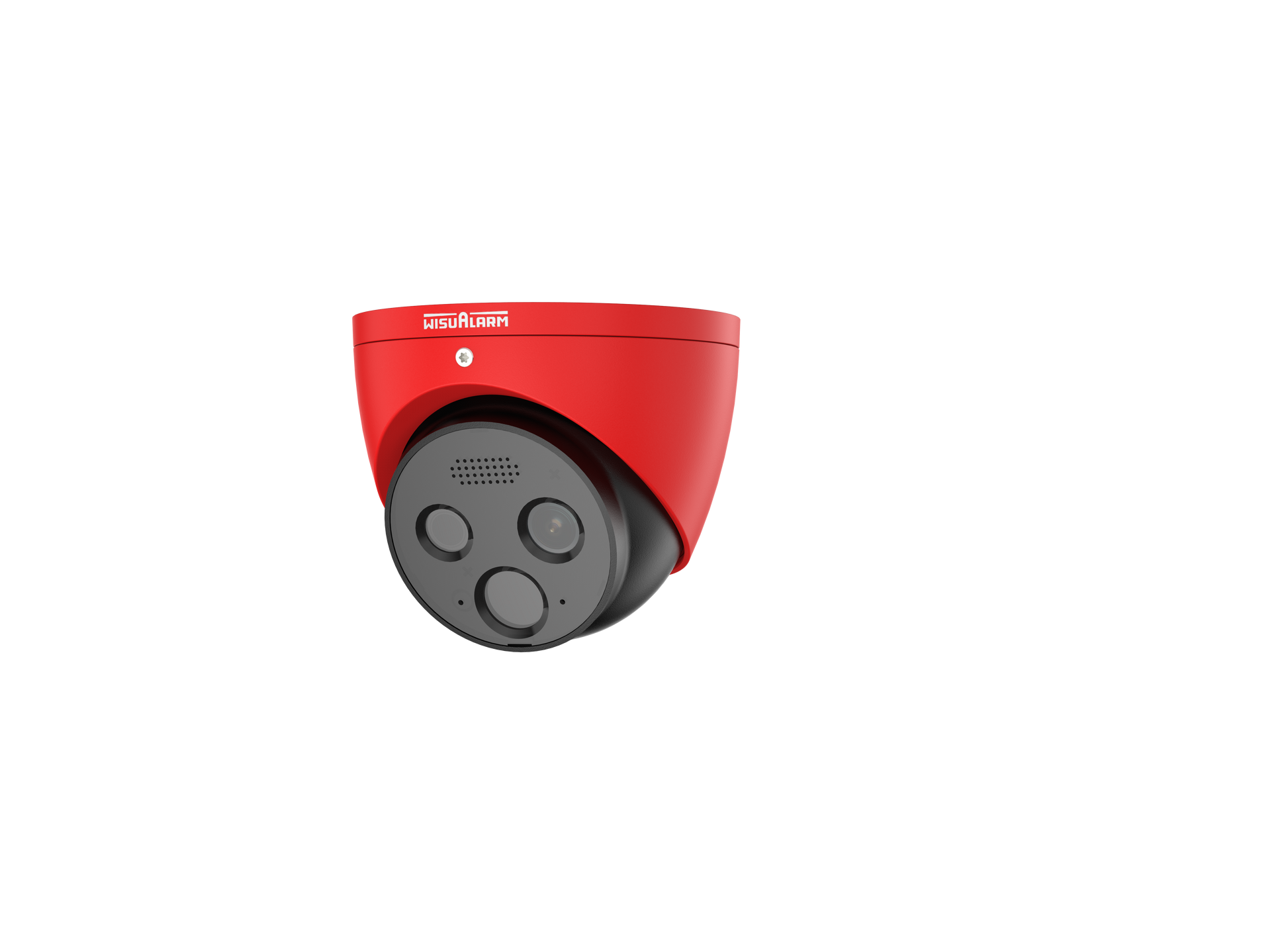

  • DHI-HY-FT431LDP-TD1F4-MB_Flame Detection Eyeball Network Camera_main_image2

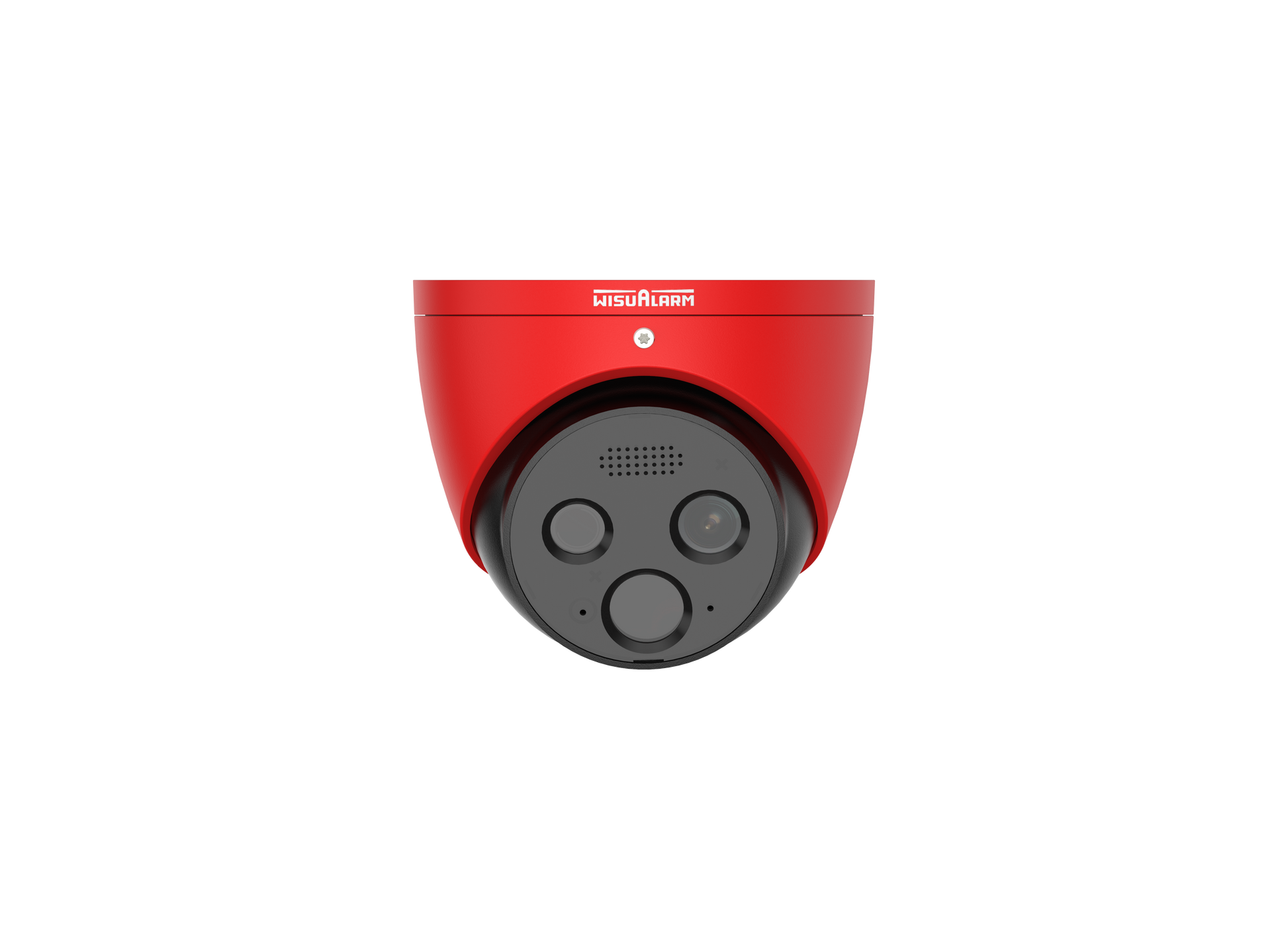

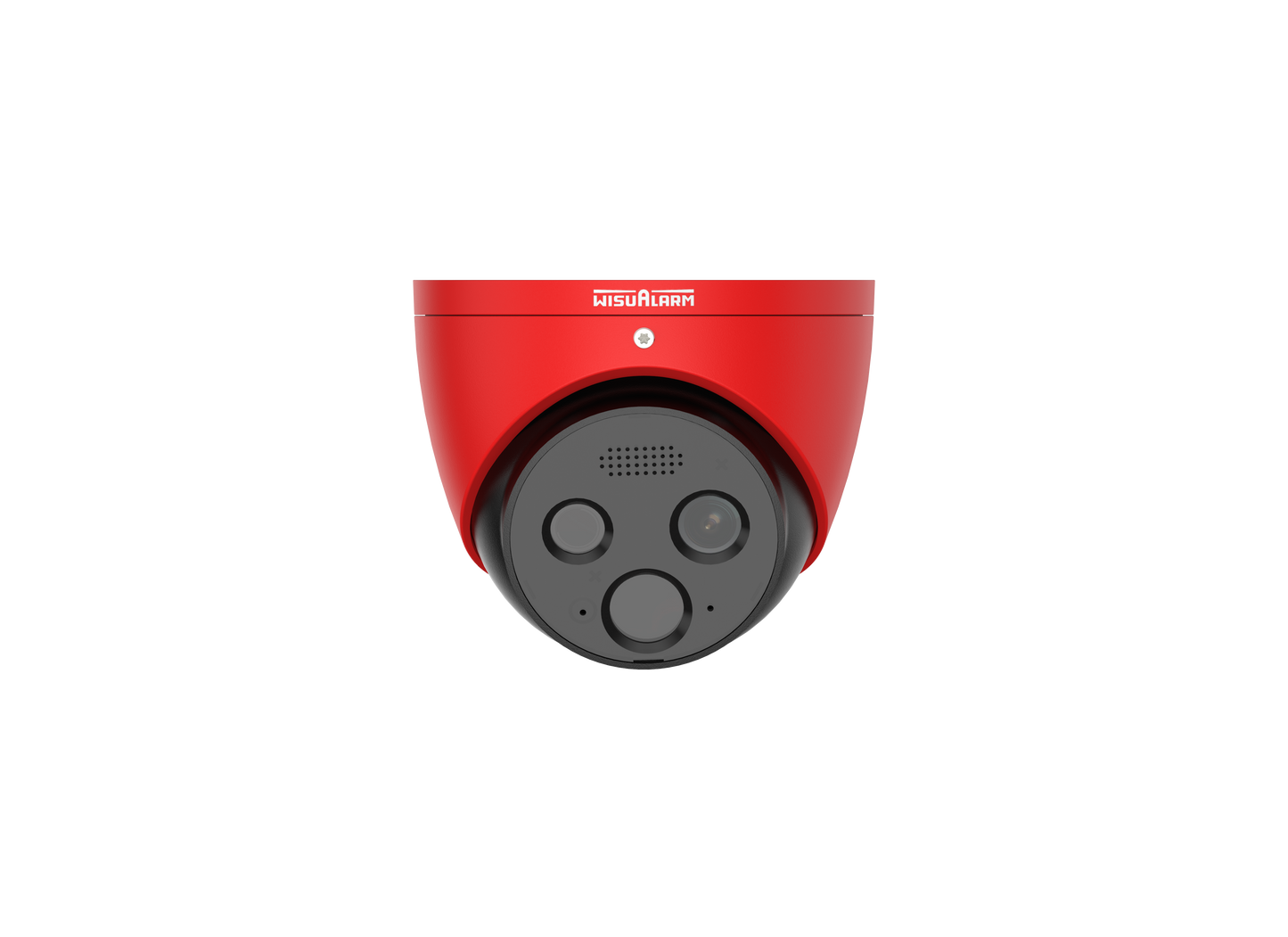

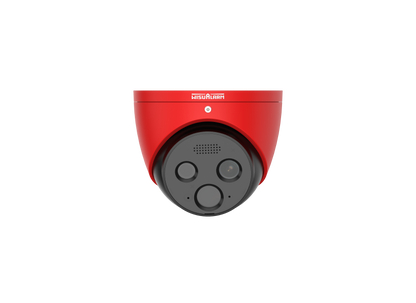

  • DHI-HY-FT431LDP-TD1F4-MB_Flame Detection Eyeball Network Camera_main_image3

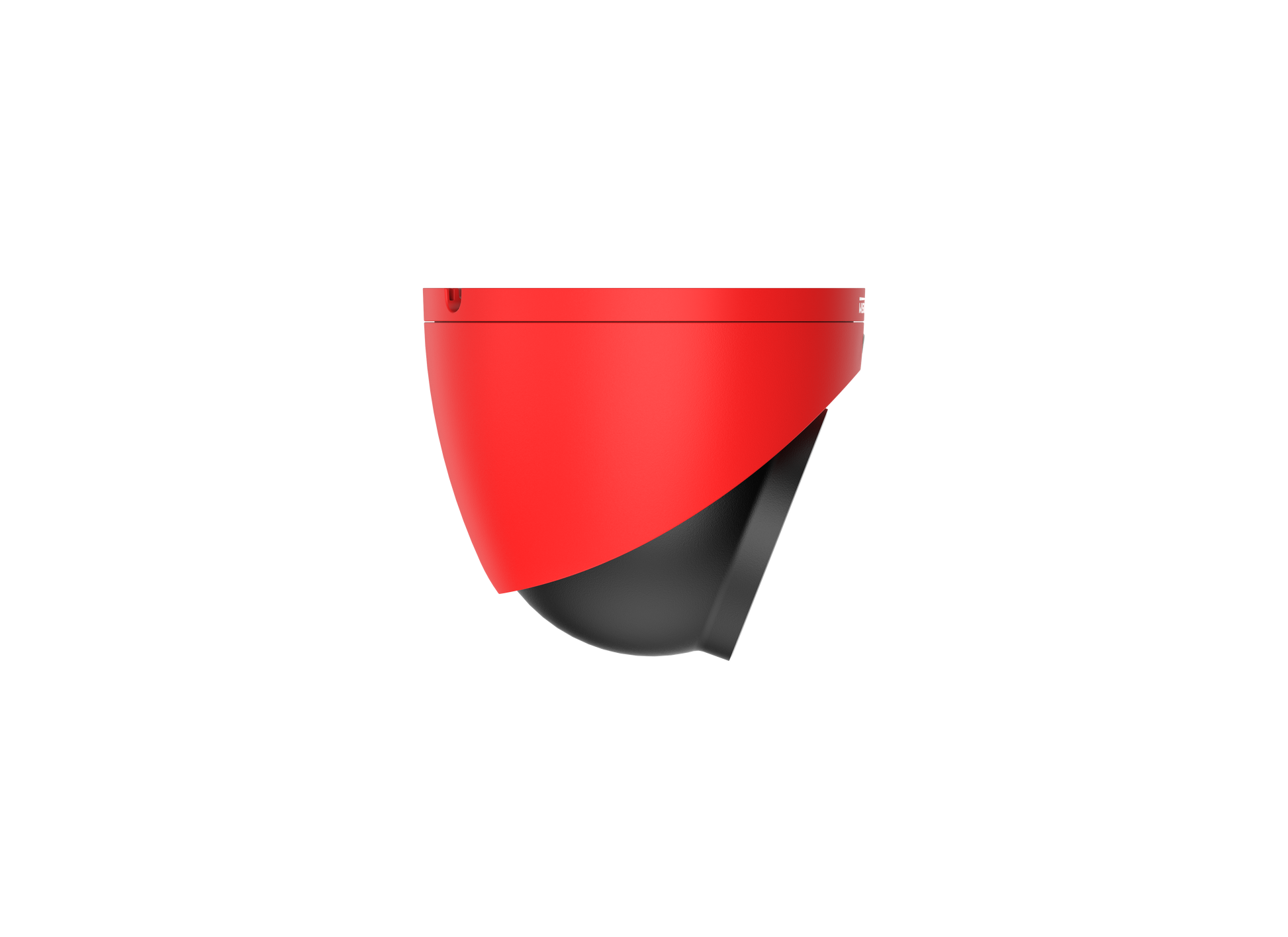

  • DHI-HY-FT431LDP-TD1F4-MB_Flame Detection Eyeball Network Camera_main_image4

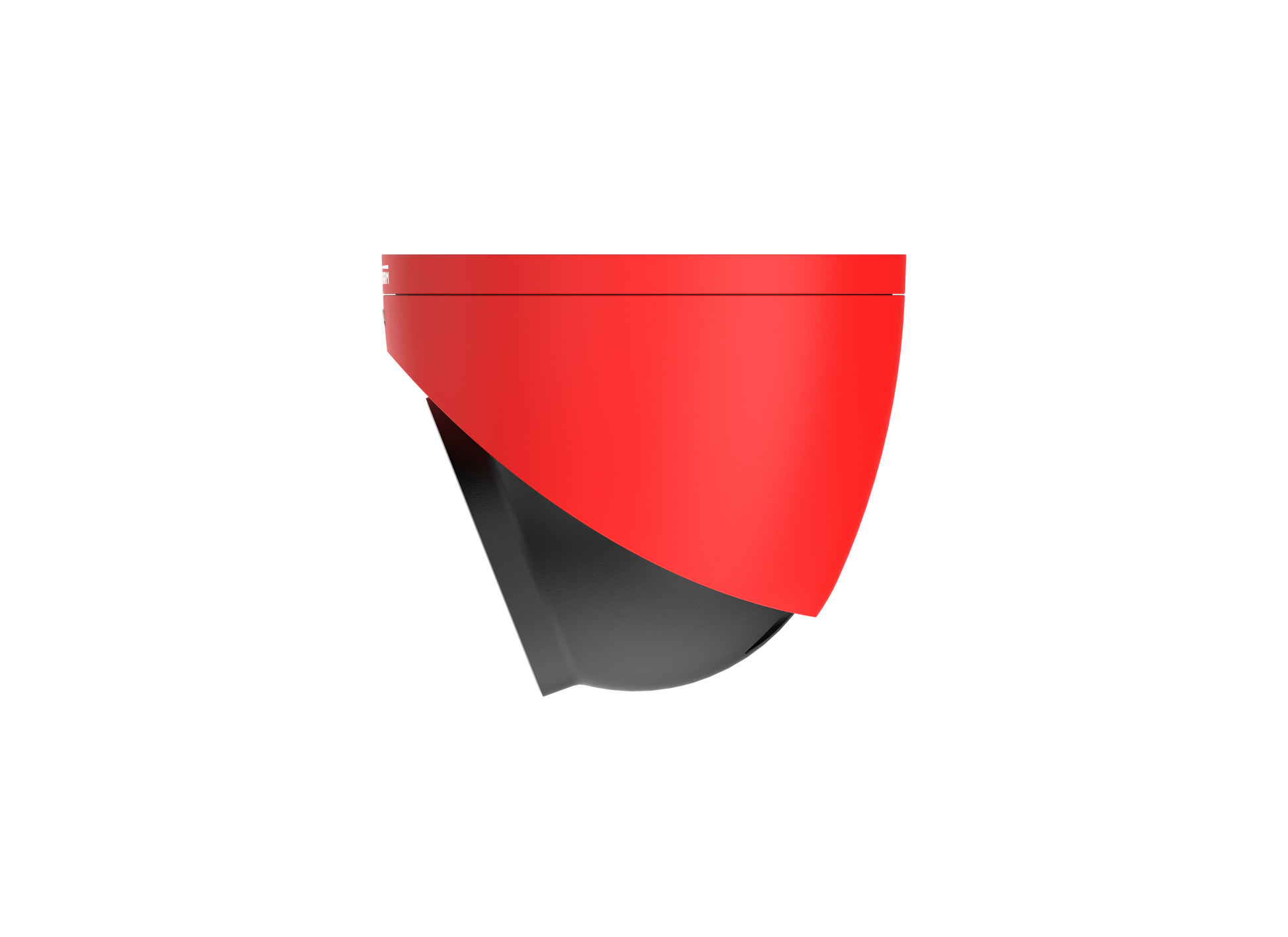

  • DHI-HY-FT431LDP-TD1F4-MB_Flame Detection Eyeball Network Camera_main_image5
1 5

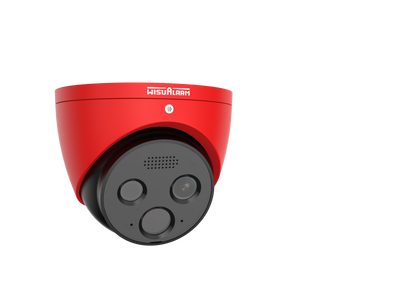

Flame Detection Eyeball Network Camera

Flame Detection Eyeball Network Camera

£320.40 GBP
£320.40 GBP
Sale Sold out
Shipping calculated at checkout.

Equipped with industry leading uncooled VOx focal plane detector, this device delivers highly sensitive monitoring for flame detection, cold and hot spot alarm, and temperature anomaly alarms. Its visible light adopts a 4MP 1/2.7 inch CMOS image sensor, which has  good low illumination effect and high image clarity. Built for fire security, it supports sound and light alarm linkage and two-way audio alarms, H.265 ultra-low bandwidth transmission, and flexible DC12V/POE power options for easy installation.

DHI-HY-FT431LDP-MB

Product features

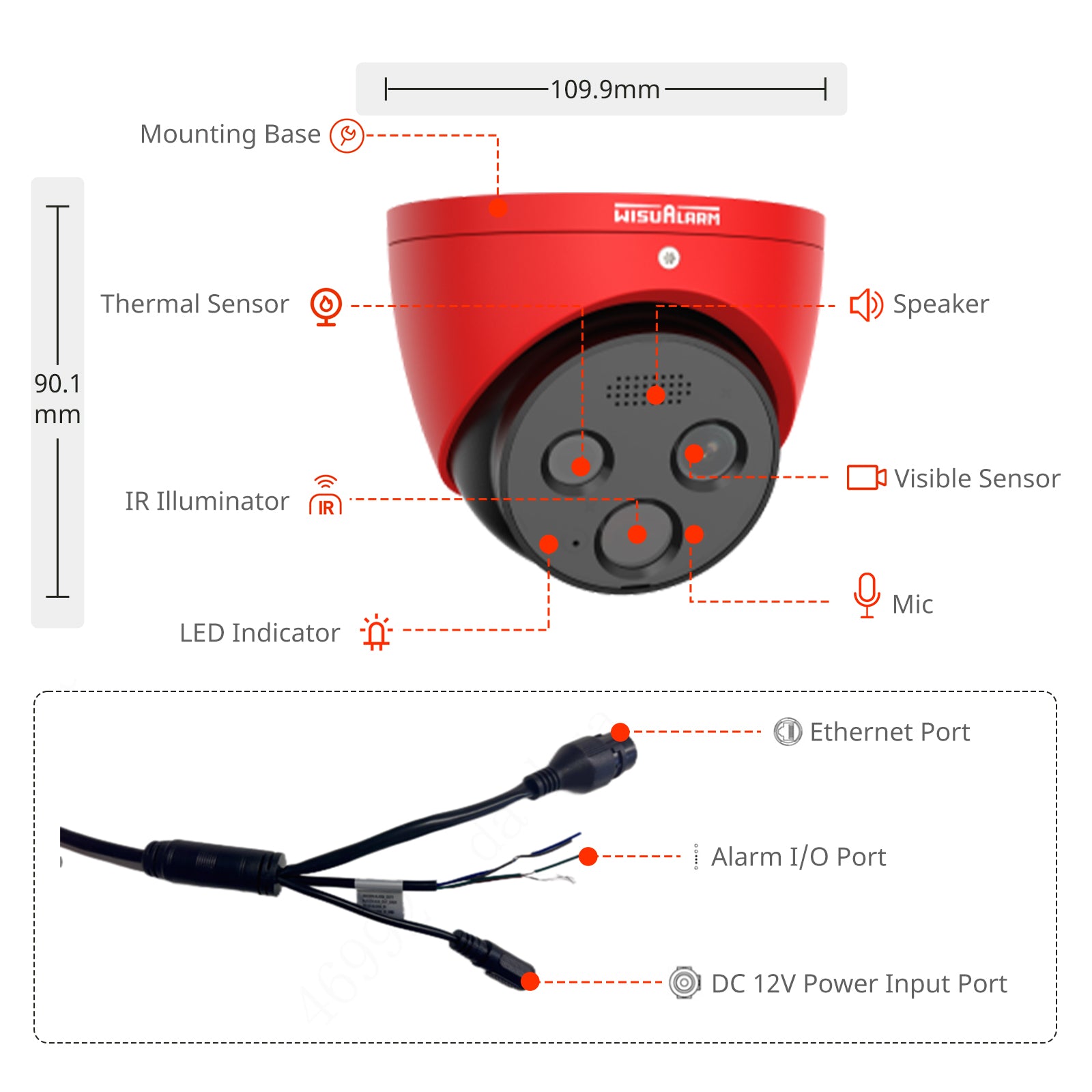

  • Industry-Leading Uncooled VOx Focal Plane Detector : High sensitivity thermal imaging core
  • Triple Alarm Functions : Flame detection, cold/hot spot alert & industrial temperature monitoring in one device
  • Binocular Fusion + 4MP Visible Light : 1/2.7" CMOS sensor with excellent low-light performance
  • Built-in MIC & High-Decibel Speaker : ≥70dB alarm sound @ 1m (A-weighted) for immediate alert response
  • IP66 Rated + DC12V/PoE Dual Power : Weather-resistant, easy engineering installation
  • H.265 Encoding : Ultra-low bitrate transmission, saving bandwidth and storage

Functions

· Flame Detection

· Smart H.265+ & Smart H.264+

· Visible and Audible Alarm Notification

· Flame Tracking

· Remote Intercom

· Alarm Output

Service

5-YEAR WORRY-FREE Warranty

Technical Specifications

Thermal Imaging

  • Detector: Vanadium oxide uncooled focal plane detector
  • Sensitivity (NETD): < 60mK (@f/1.0, 300K)
  • Spectral Range: 8 μm–14 μm
  • Temperature Detection Range: –10°C to +200°C (+14°F to +392°F)

Visible Light

  • Image Sensor: 1/2.7" CMOS, 4MP (2688×1520)
  • Min. Illumination: 0.0052 lux (Color) / 0 lux (IR on)
  • IR Illumination Distance: 15 m (49.21 ft)

Flame Detection

  • Flame Detection Distance: 10 m (32.81 ft) — target size 10×10 cm

Ports & Power

  • Power Supply: DC12V (±30%) / PoE
  • Power Consumption: Max. 3W
  • Alarm Input: 1-ch (5mA, 3V–5V DC)
  • Alarm Output: 1-ch (300mA, 12V DC)
  • Network Port: RJ-45 PoE 10/100M

Protection & Environment

  • Protection: IP66
  • Operating Temperature: –10°C to +55°C (+14°F to +131°F)
  • Operating Humidity: ≤ 95%

Encoding & Protocol

  • Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
  • Interoperability: ONVIF / GB/T28181 / CGI / Imou

Out of stock
View full details
DHI-HY-FT431LDP_DHI-HY-FT431LDP-MB_main_image6

Flame Detection Eyeball Network Camera

Advanced Flame Detection for Fire Safety

DHI-HY-FT431LDP_DHI-HY-FT431LDP-MB_main_image9

High sensitivity thermal detection

Industry leading uncooled VOx focal plane detector supports flame recognition, cold and hot spot alarm, and temperature anomaly detection.

DHI-HY-FT431LDP_DHI-HY-FT431LDP-MB_main_image7

Dual-spectrum design for smart monitoring

The device combines thermal imaging with a 4MP visible-light camera to deliver clear and detailed video surveillance.

DHI-HY-FT431LDP_DHI-HY-FT431LDP-MB_main_image8

Powerful alarm linkage system

The product supports sound and light alarm linkage with built-in MIC and high volume speakers for instant warnings.

DHI-HY-FT431LDP_DHI-HY-FT431LDP-MB_main_image10

Durable design & easy installation

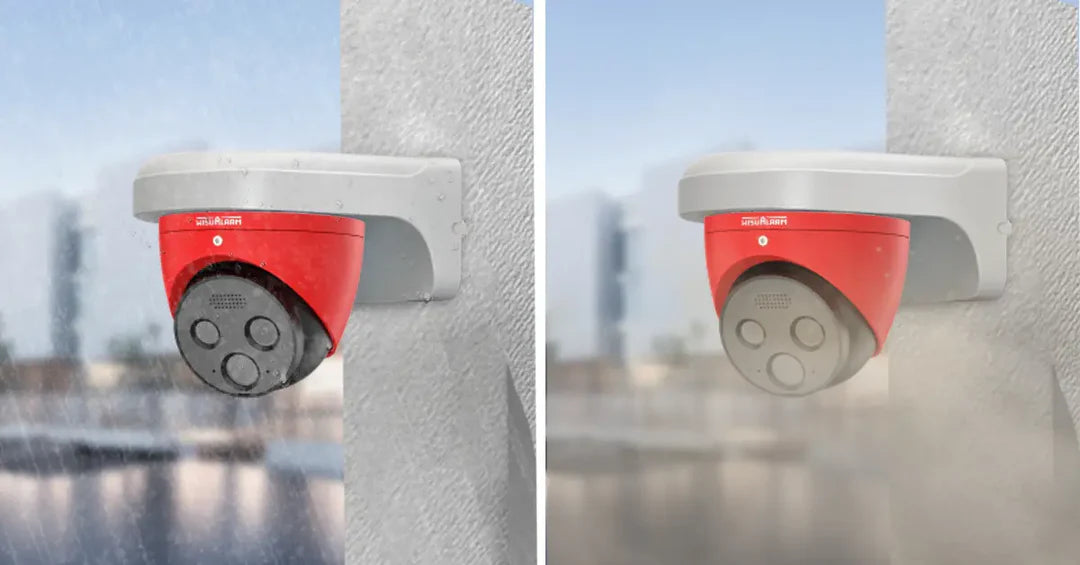

Supporting IP66 protection level, this device ensures long-term operation and easy engineering installation with DC12V/POE power supply.
