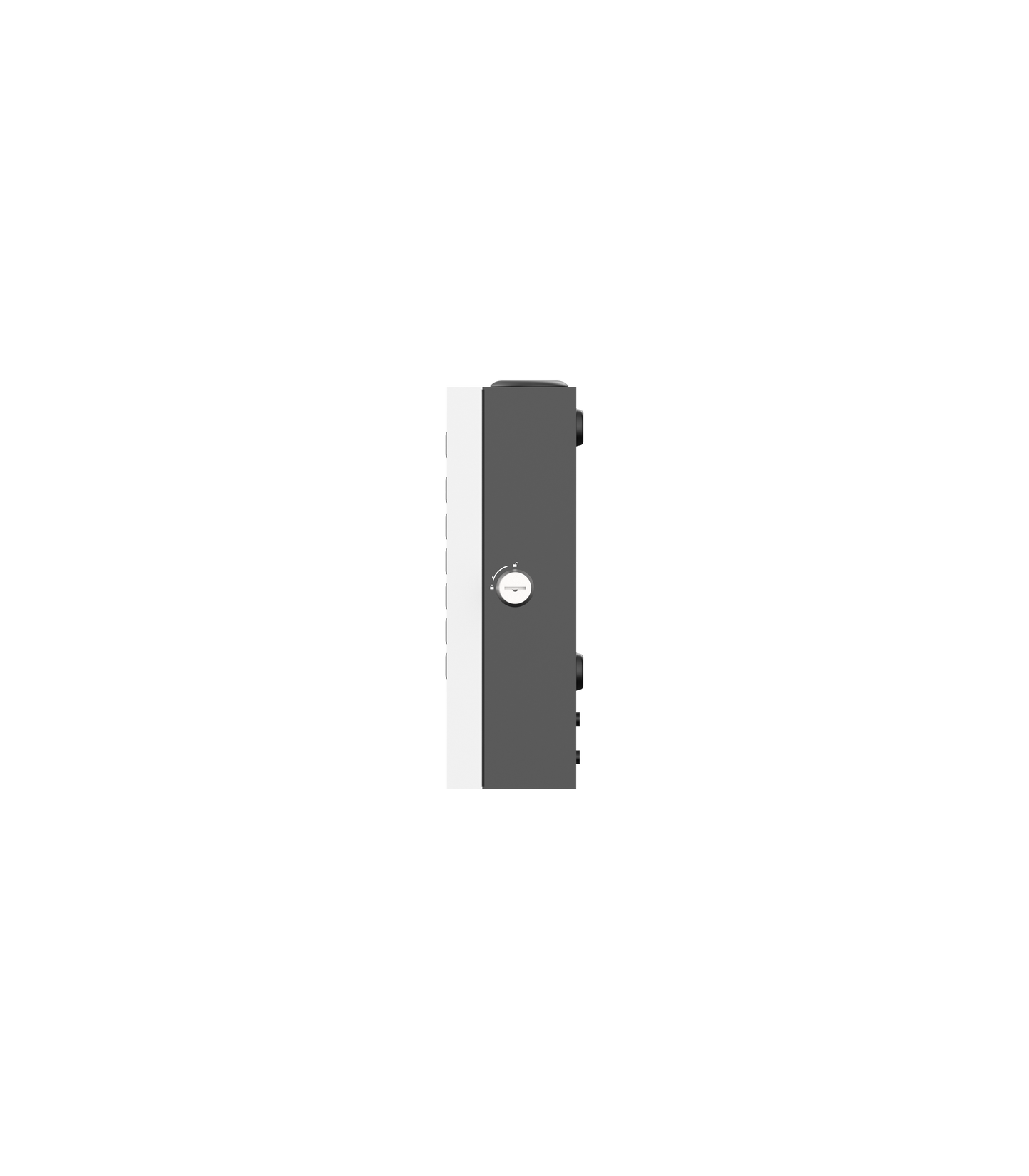

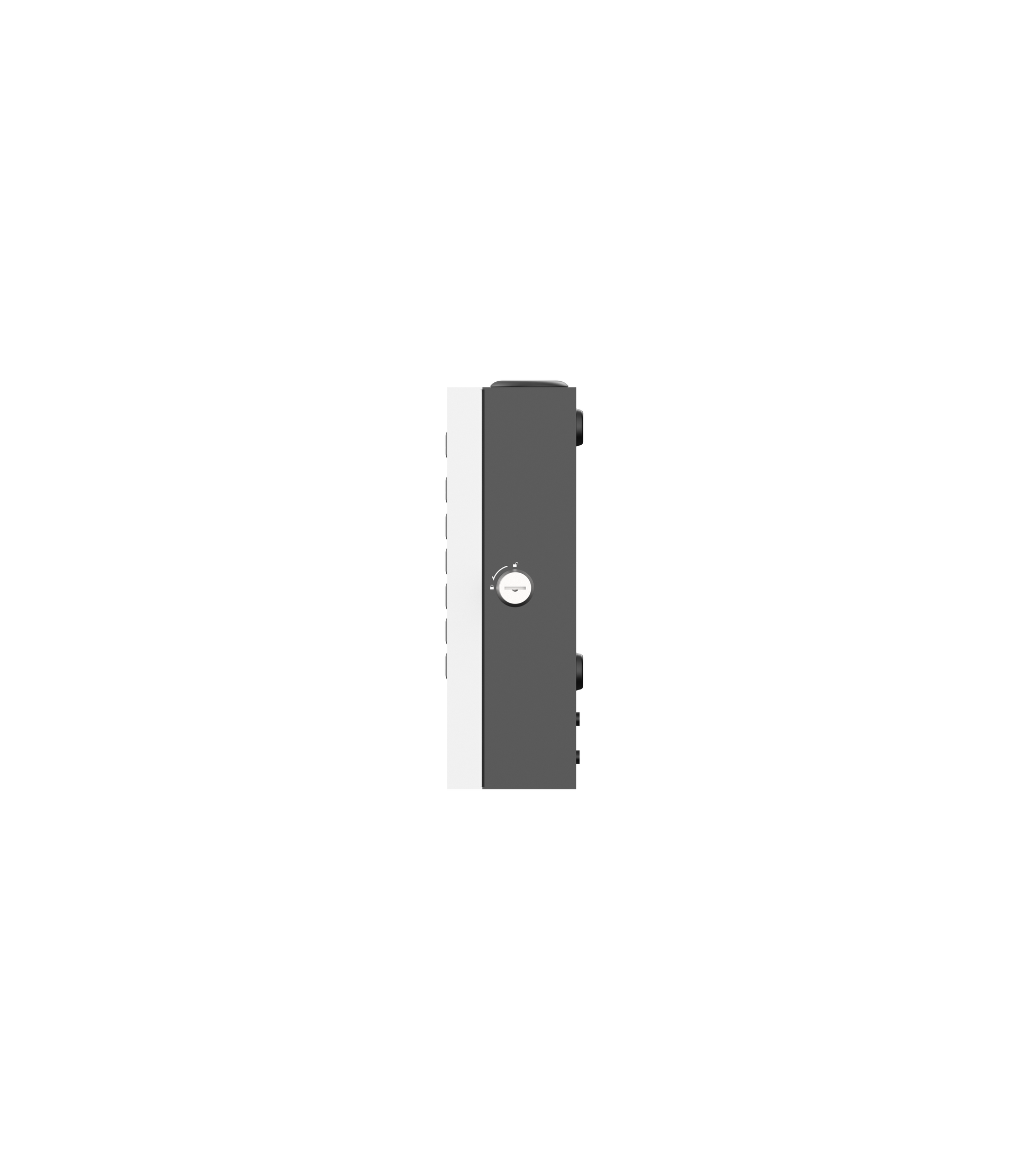

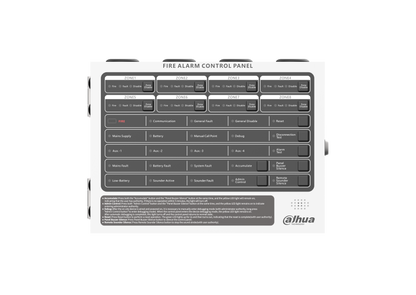

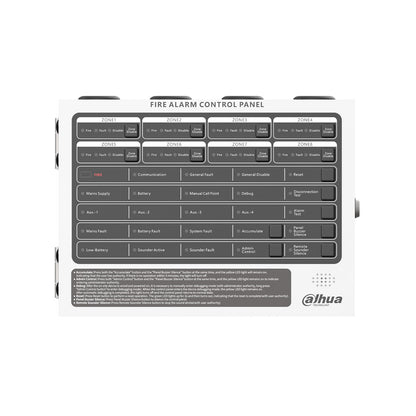

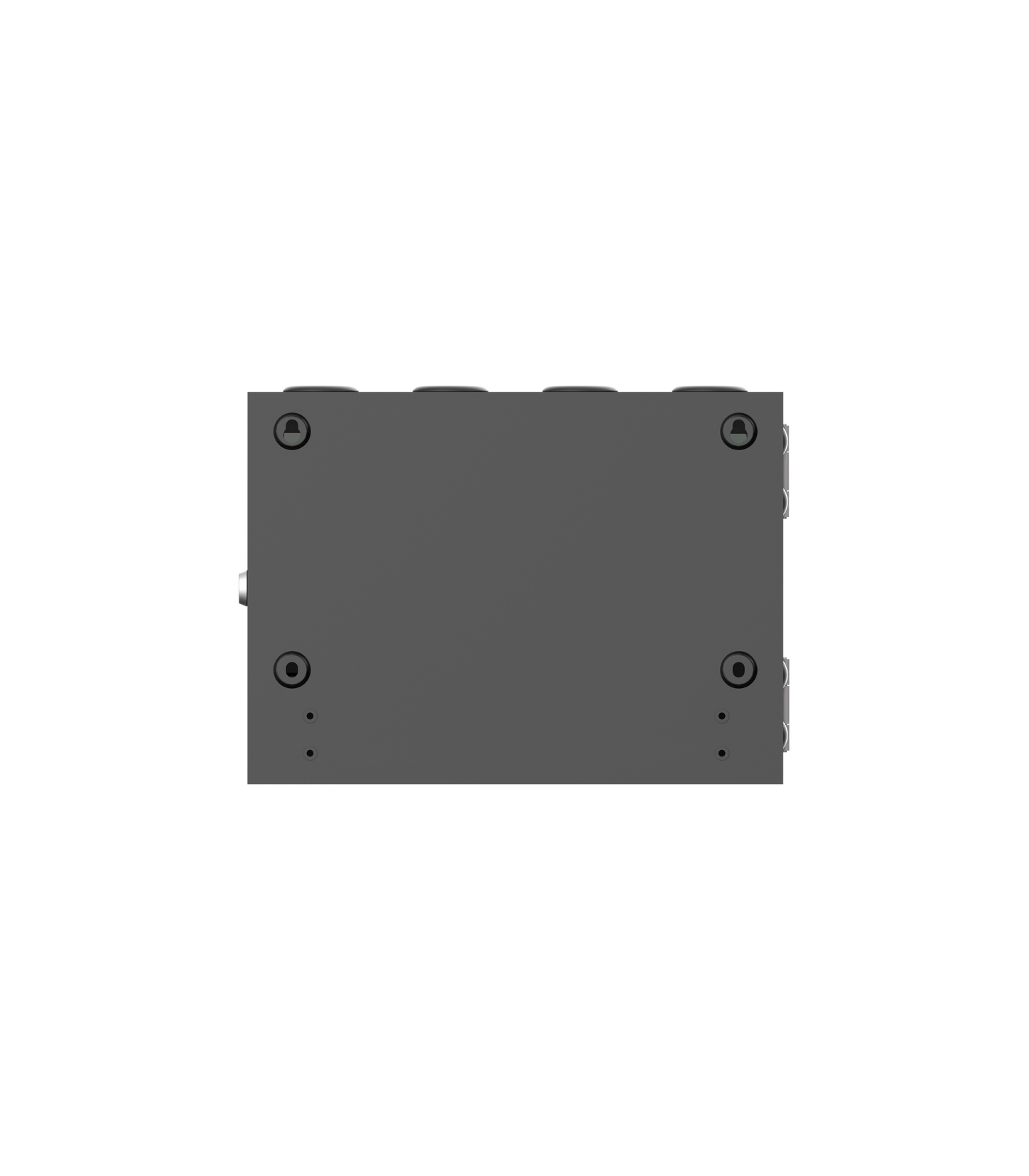

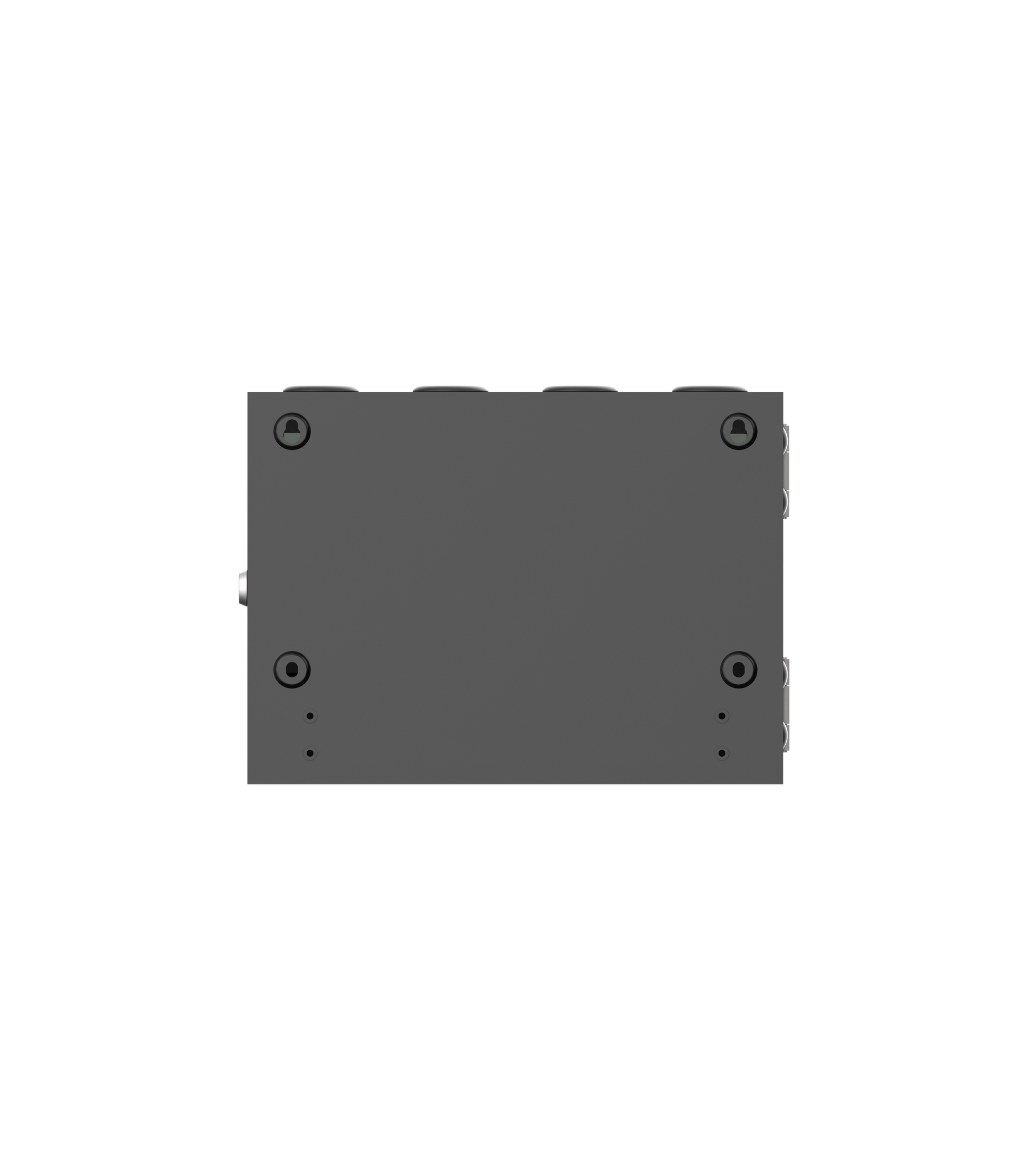

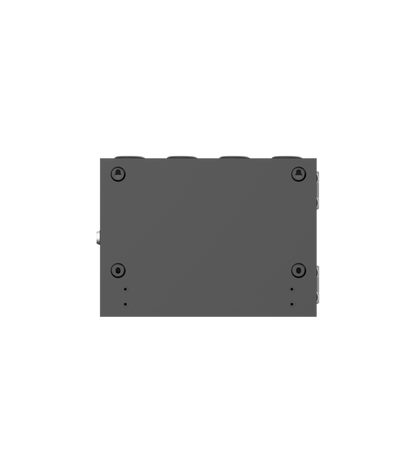

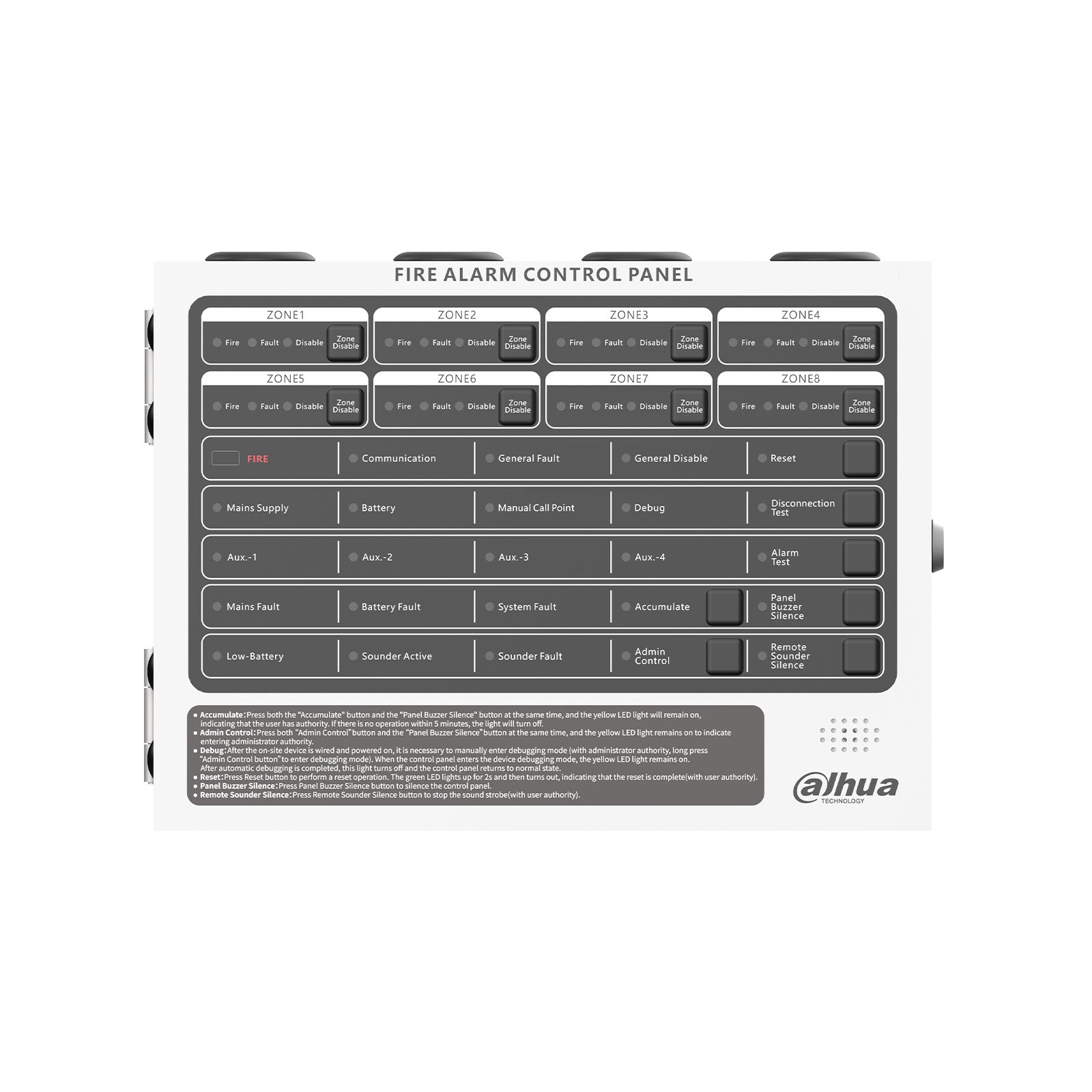

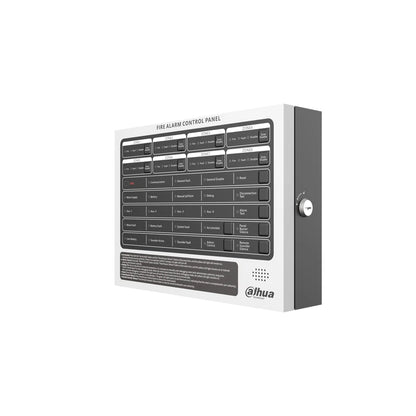

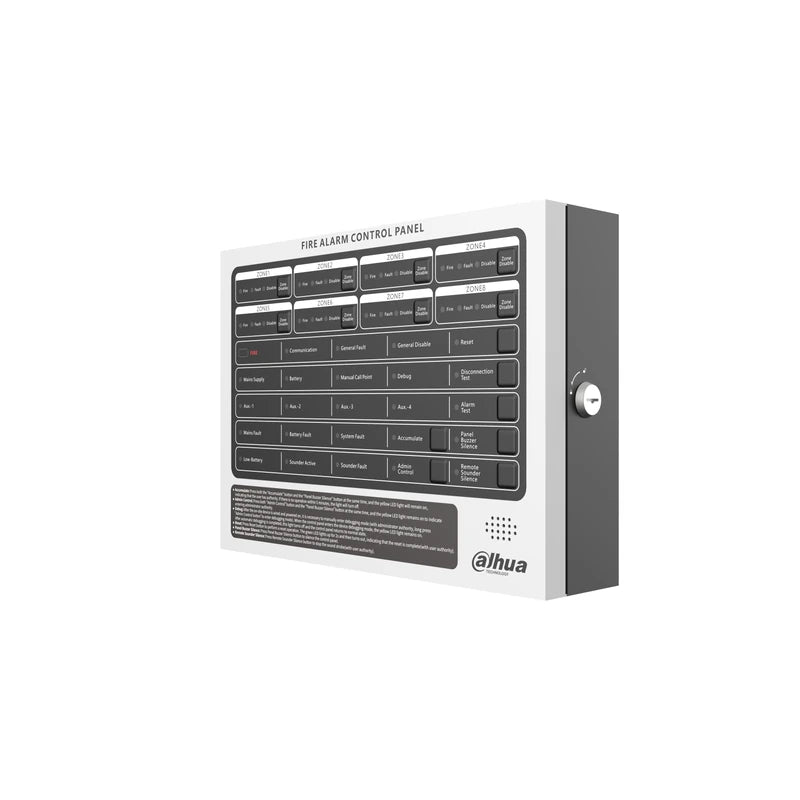

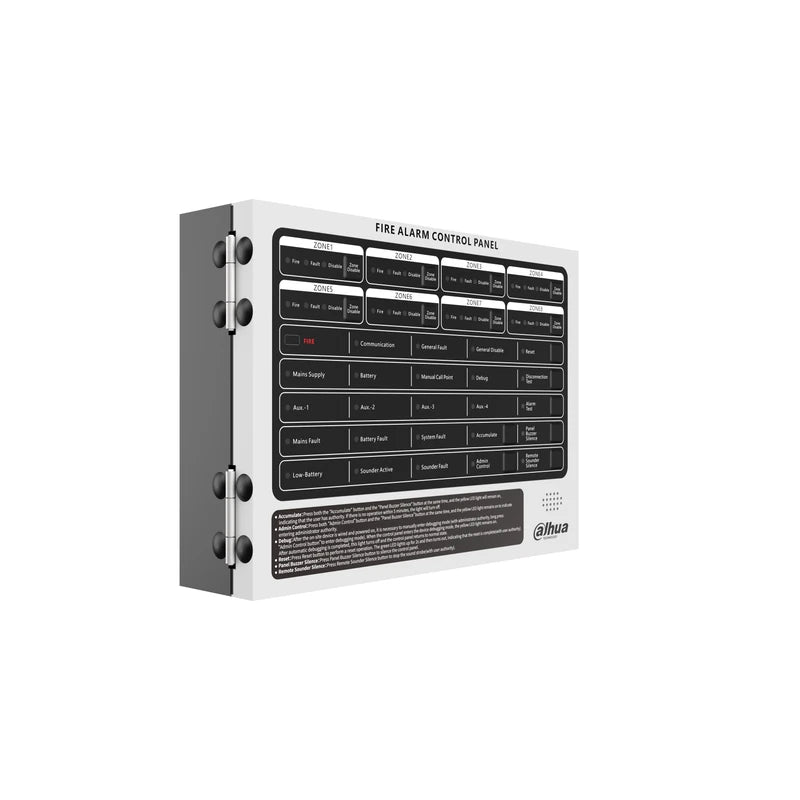

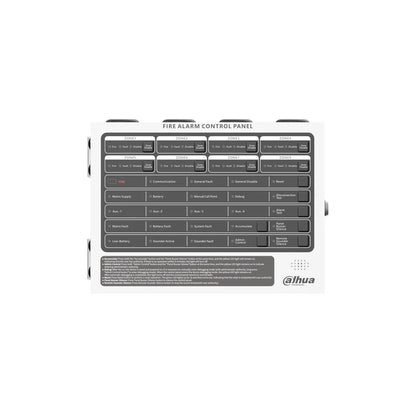

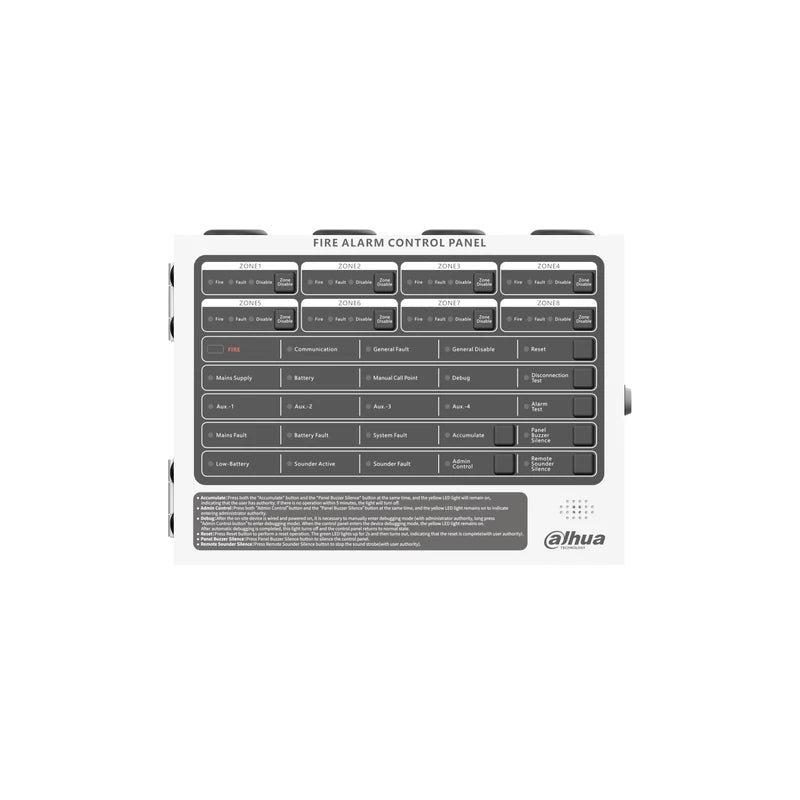

8-Zone Conventional Fire Alarm Control Panel – DHI-HY-C102-8

• EN54-2 & EN54-4 Certified. TUV approved.
  CPR Certificate No.: 1008-CPR-MC 69267995 0001
  CPR Certificate No.: 1008-CPR-MC 69267998 0001
• AC100-240V/50Hz, 60Hz main power supply ensures the stable
  operation
• Dry contacts make connection flexible
• Ethernet interfaces enables communication with IoT platform
• RS-485 interface contributes to convenient integration
• Record and export capacity of historical events for each of fire, fault and operation

· Alarm Function

· Platform Access

· System Linkage

· Data Output

2-YEAR WORRY-FREE Warranty

Number of Zones: 8

Zone Capacity: 25 detectors per zone

Main Power: AC 100–240V / 50Hz, 60Hz

Backup Power: Built-in 2×12V 2.5Ah battery

Zone Current: 35mA

Sounder Volume: Fault: 50dB / Alarm: 60dB

Fire Bell Output: DC 28V / 500mA

Fire Alarm Terminal: NO/NC

Fault Terminal: NO/NC

Communication Distance: 1500 m

Max Cascade: 128 units

Dimensions: 400.0 × 92.2 × 265.0 mm (15.75" × 3.63" × 10.43")

Weight: 3.45 kg / 7.4 kg (with 2 batteries)

Operating Temperature: –10°C to +50°C (+14°F to +122°F)

Operating Humidity: ≤ 95% RH (no condensation)

Protection Grade: IP30

Installation: Wall mount

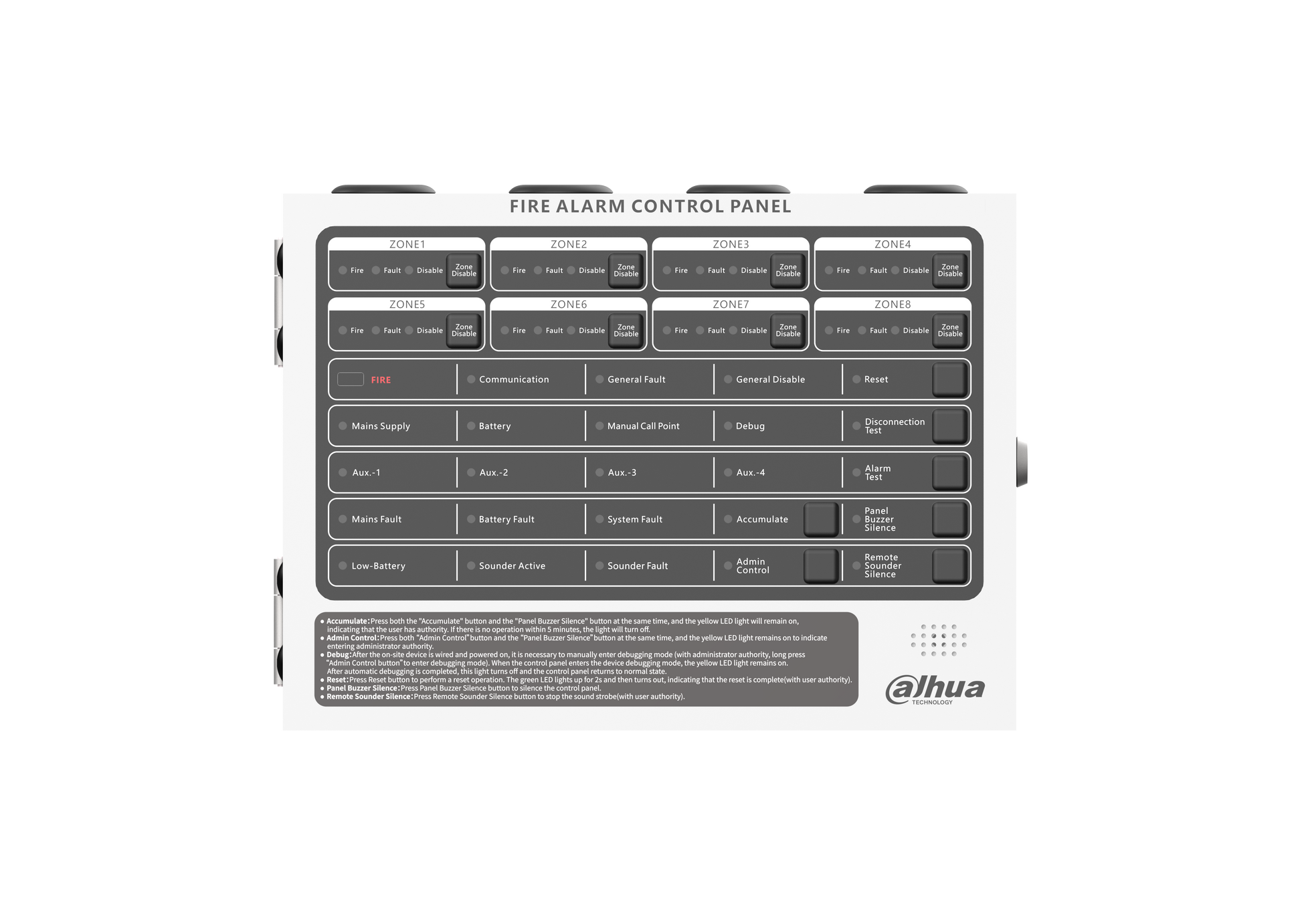

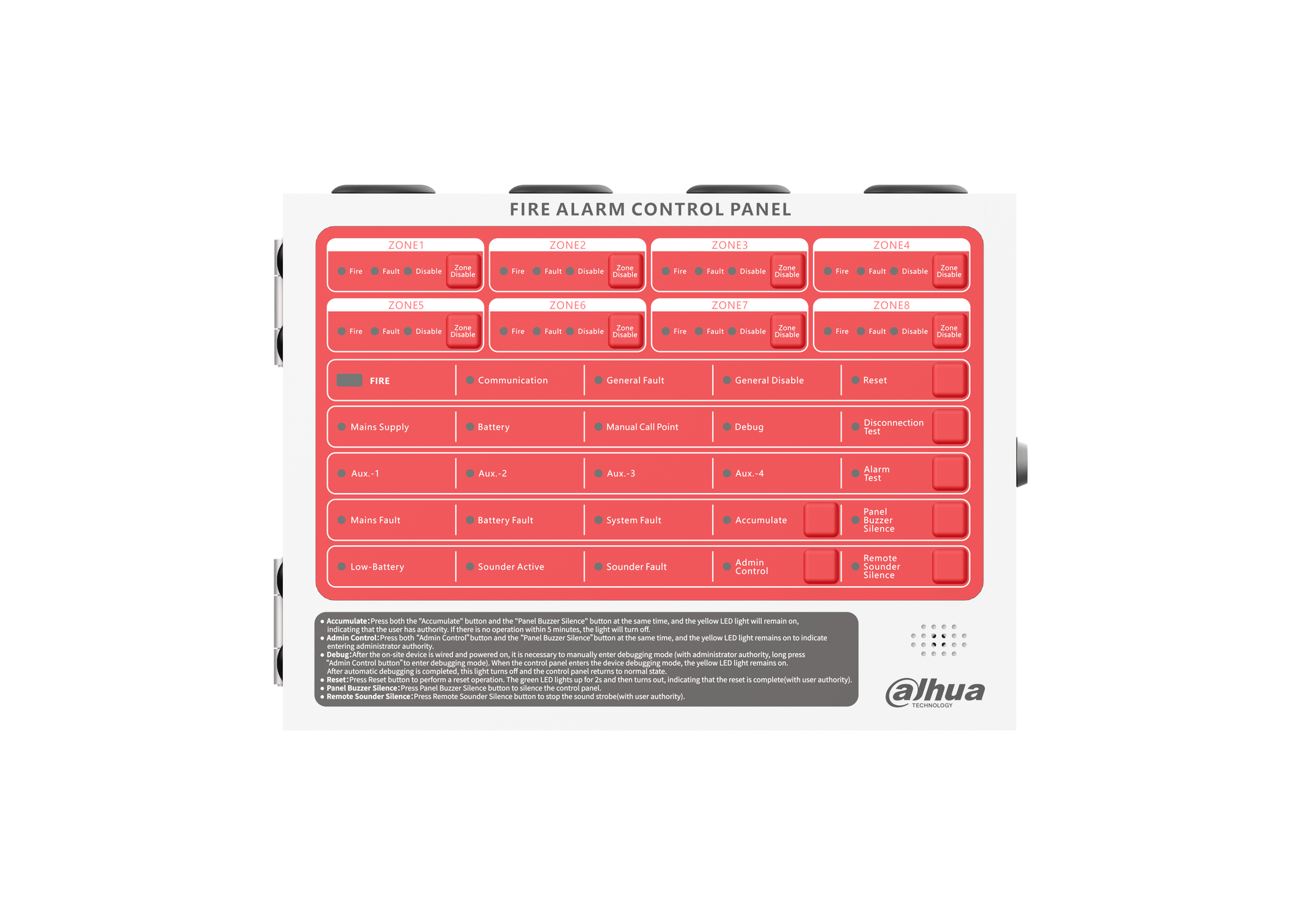

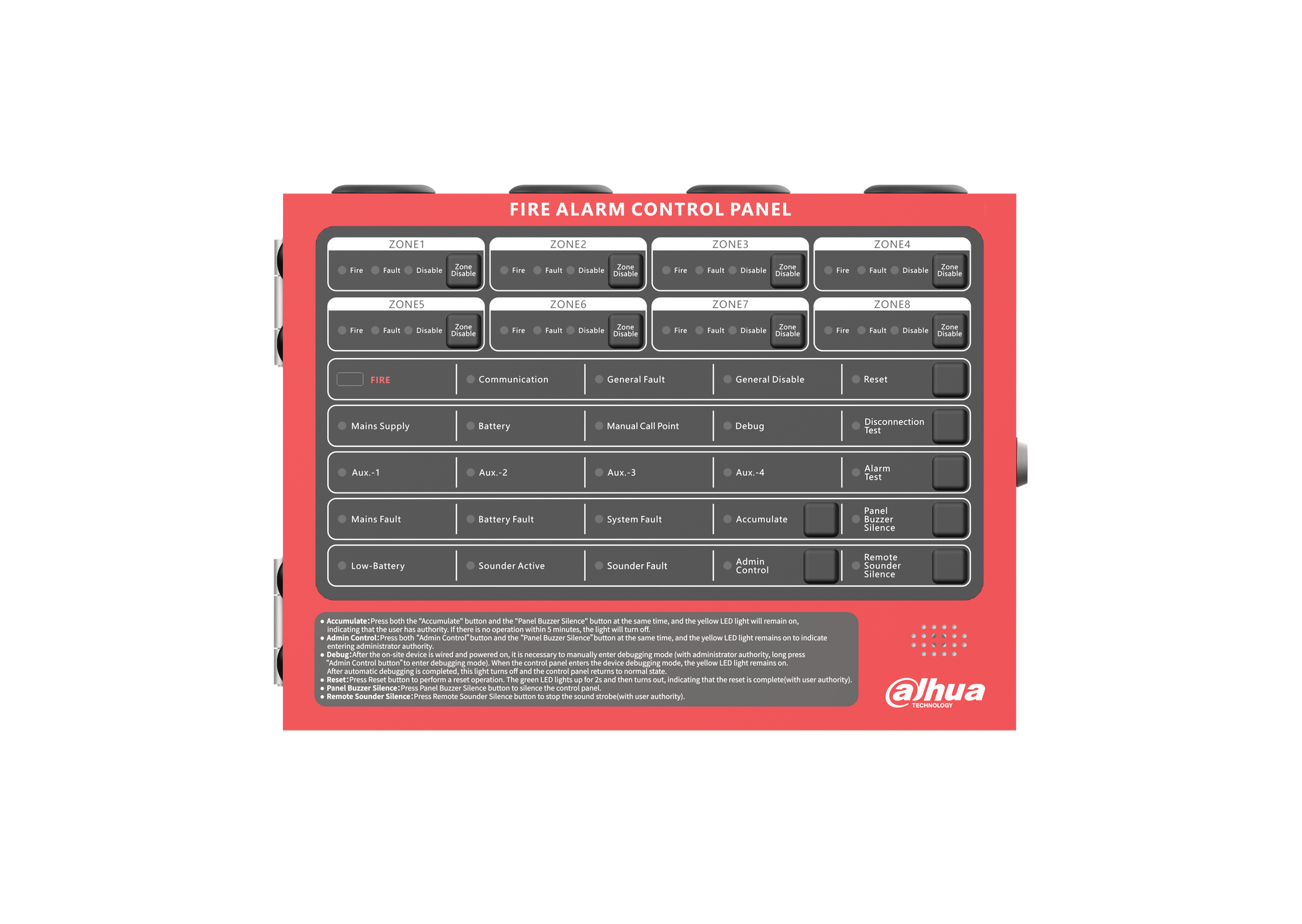

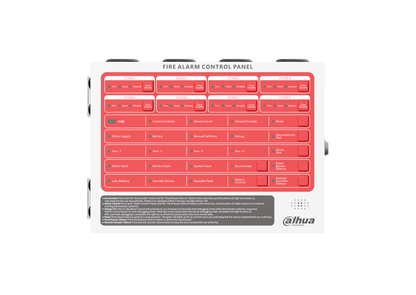

Color Options: Black & White / Red & White / Red & Black

Compliance Standard: EN54-2, EN54-4
