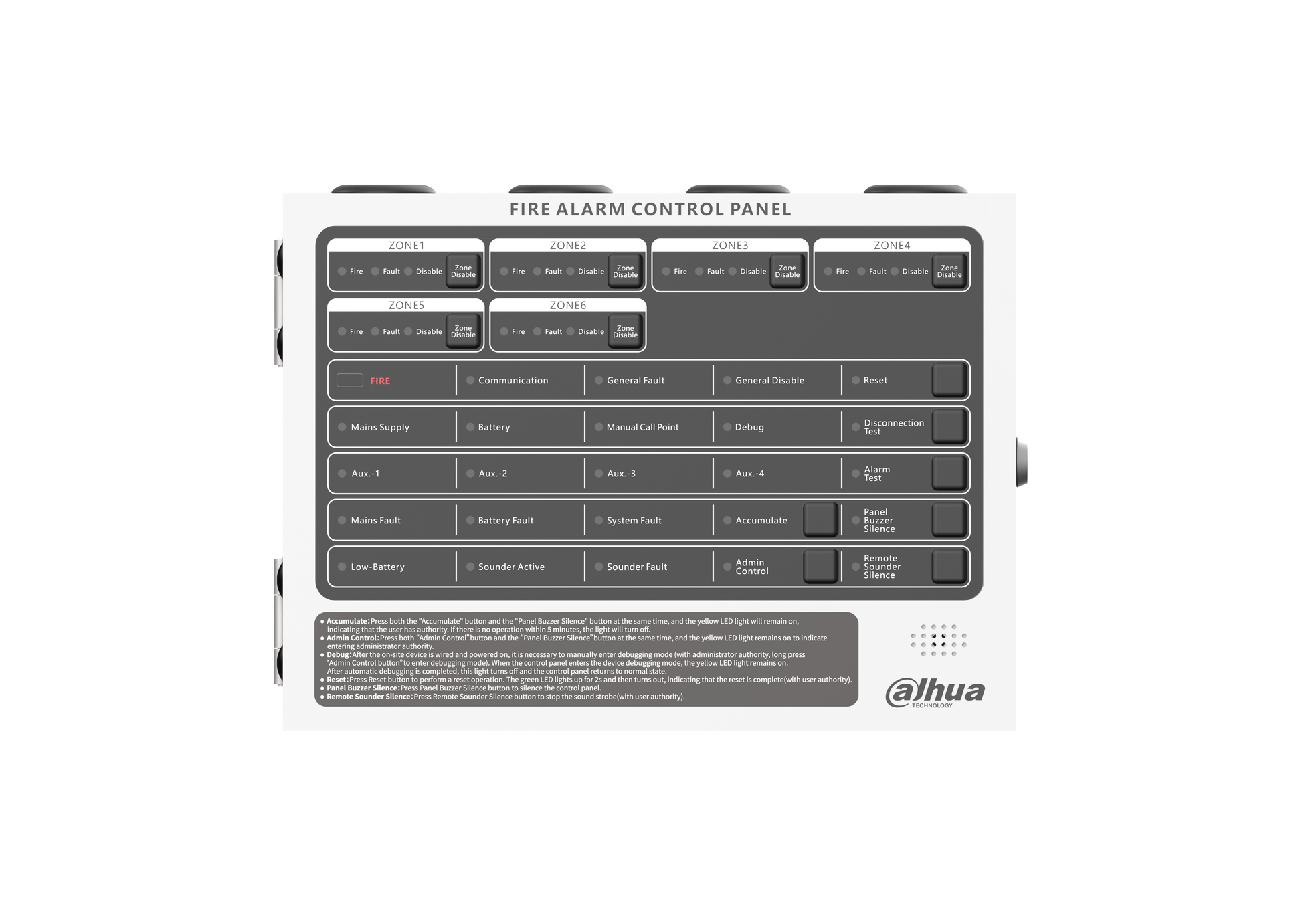

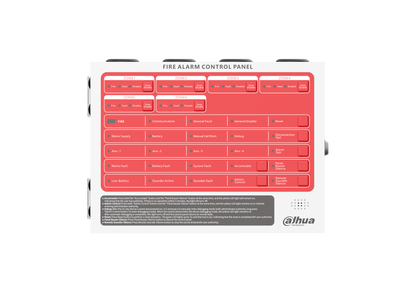

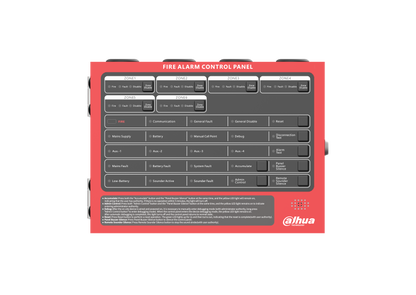

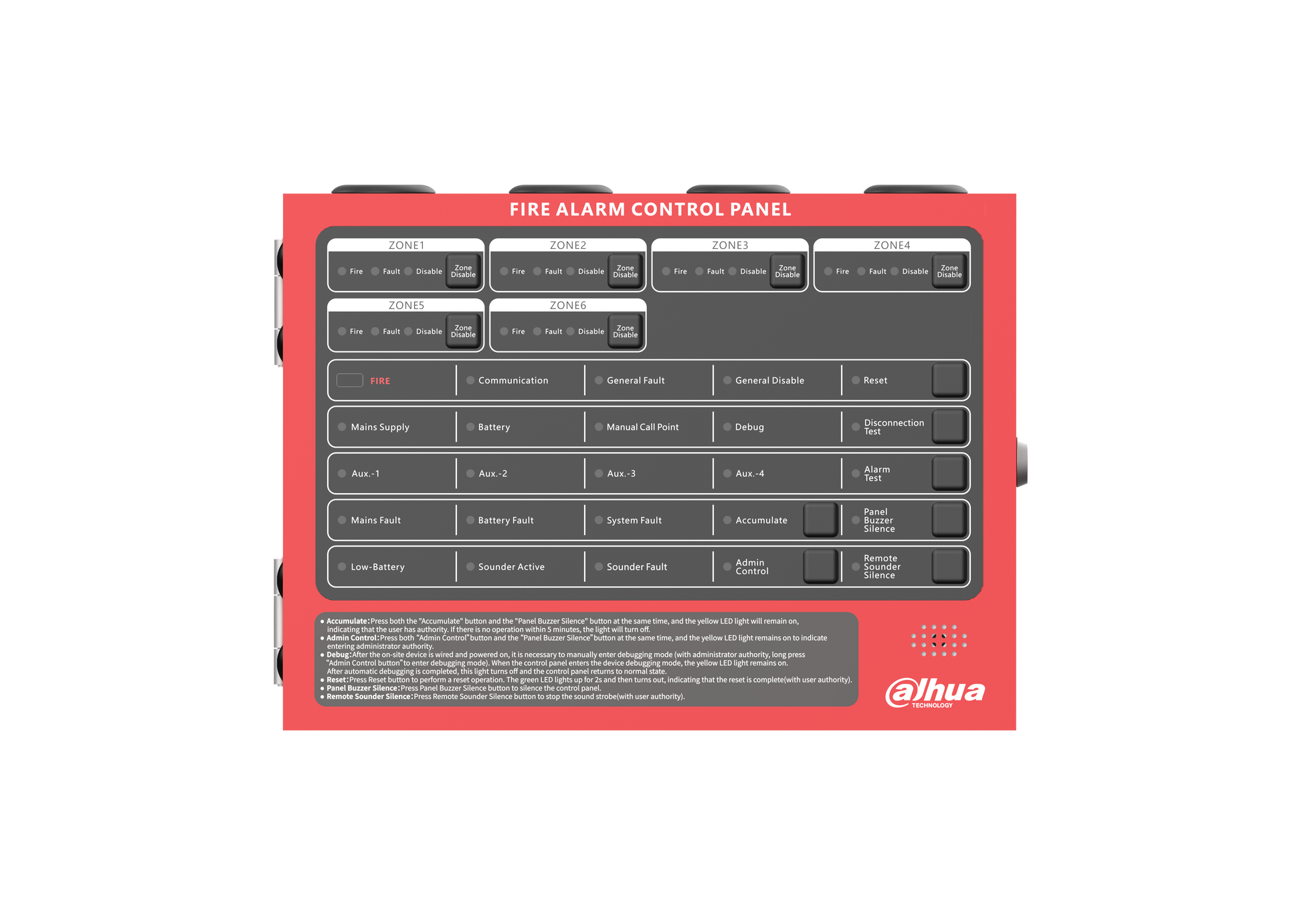

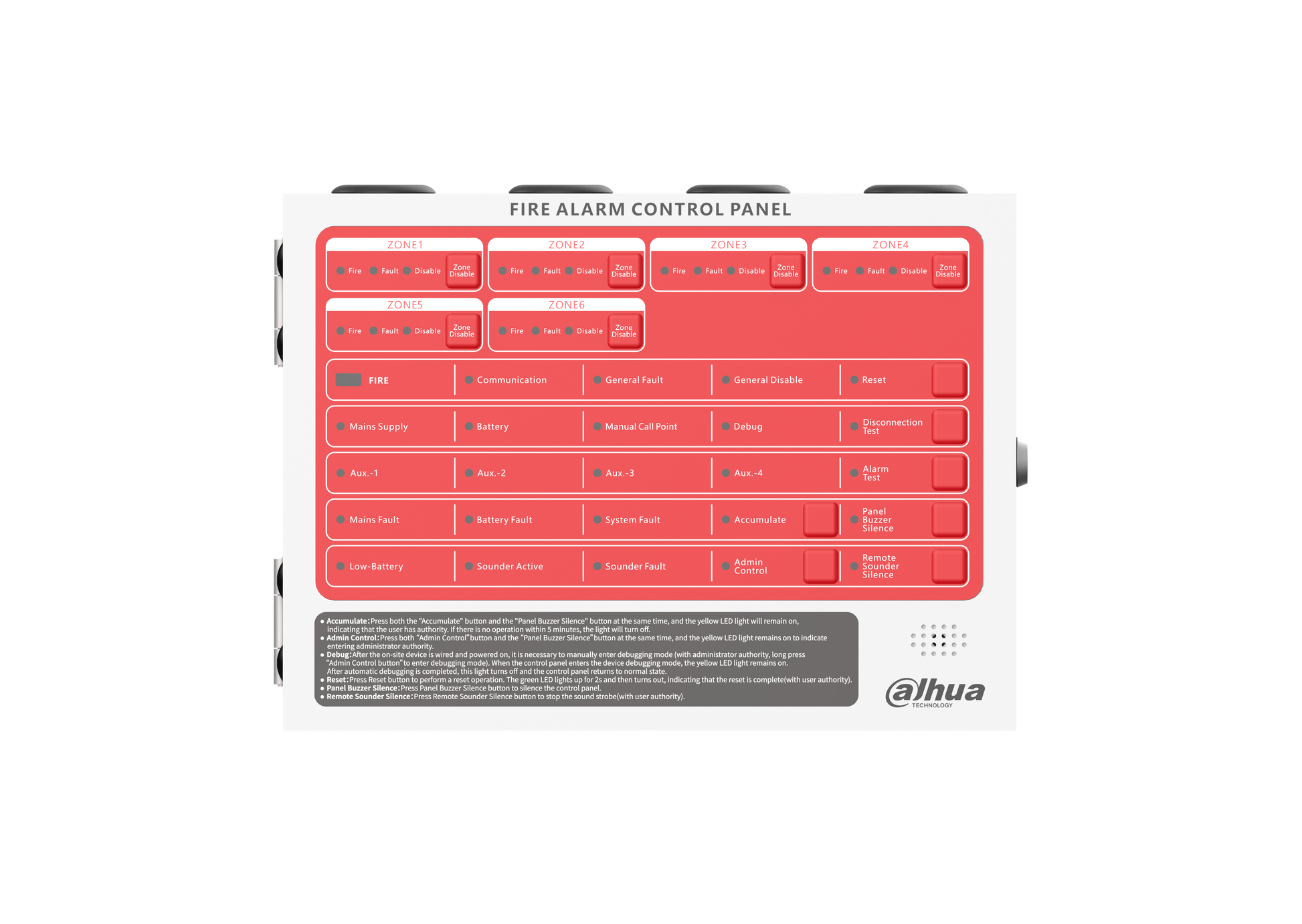

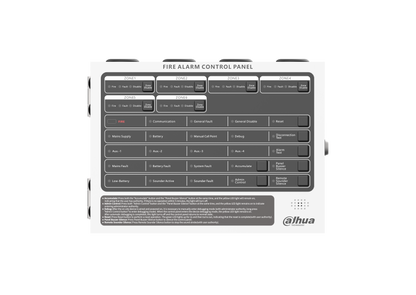

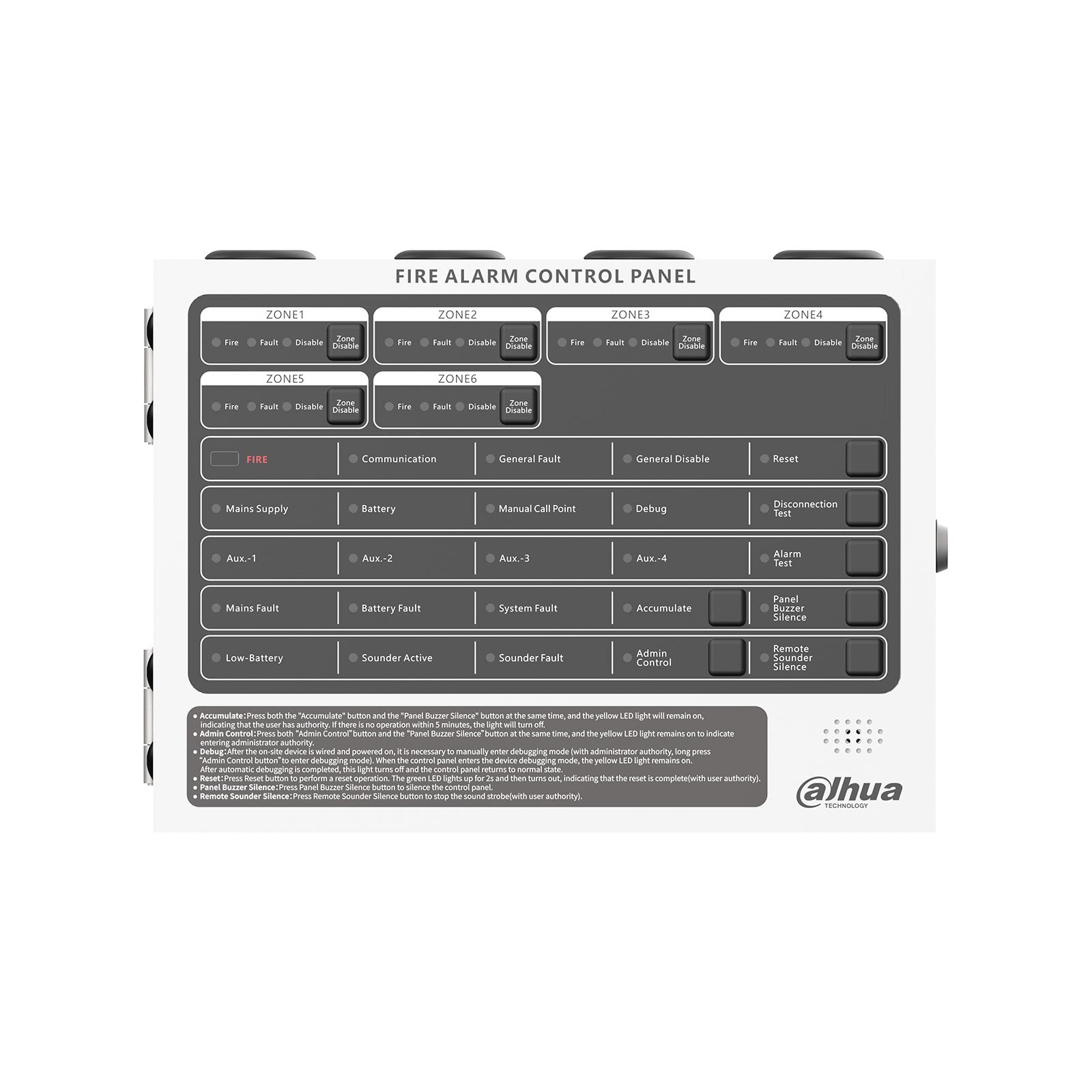

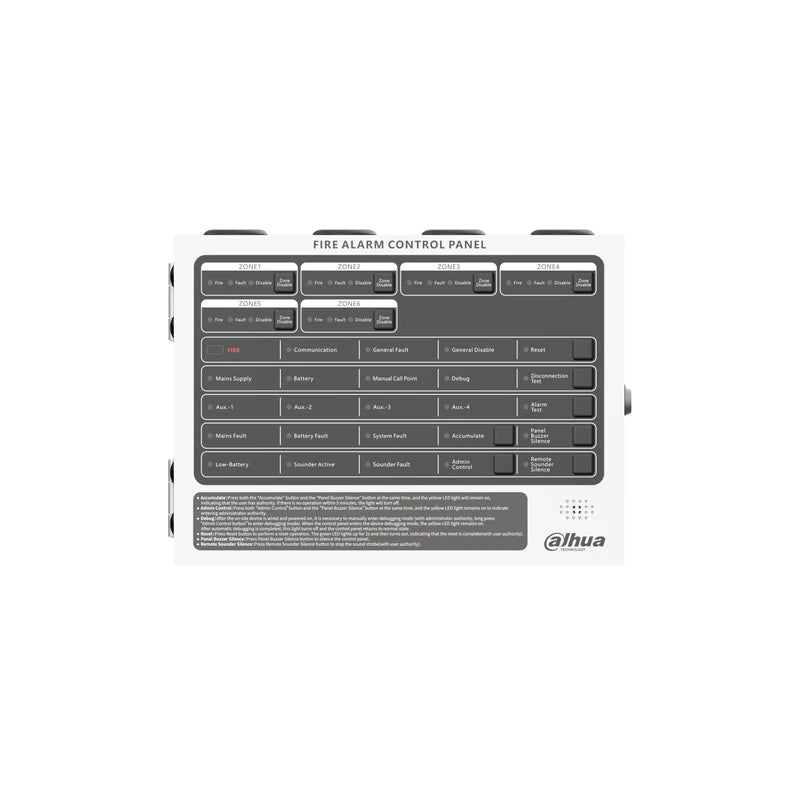

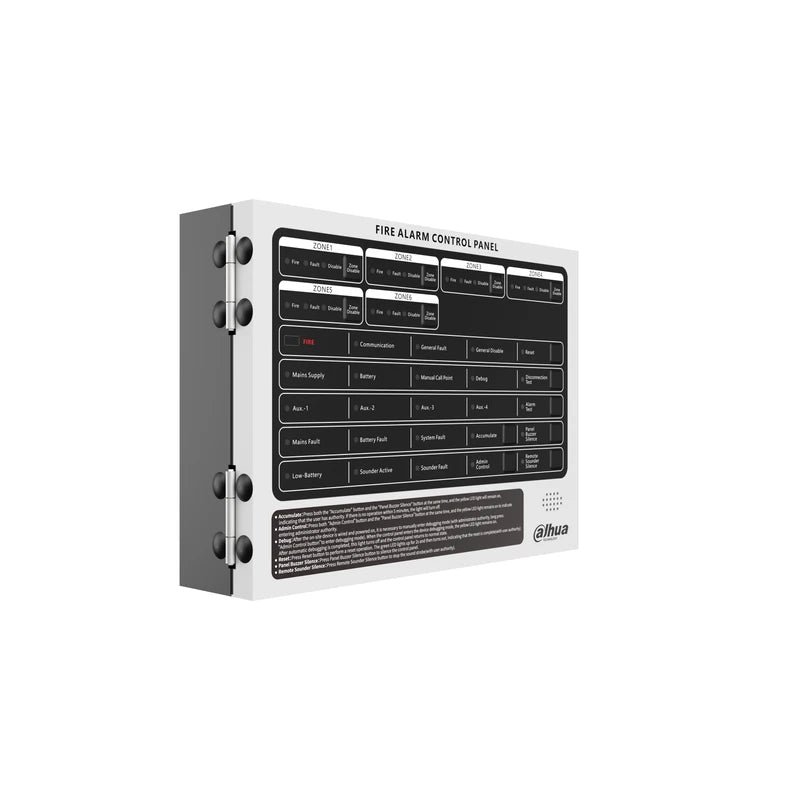

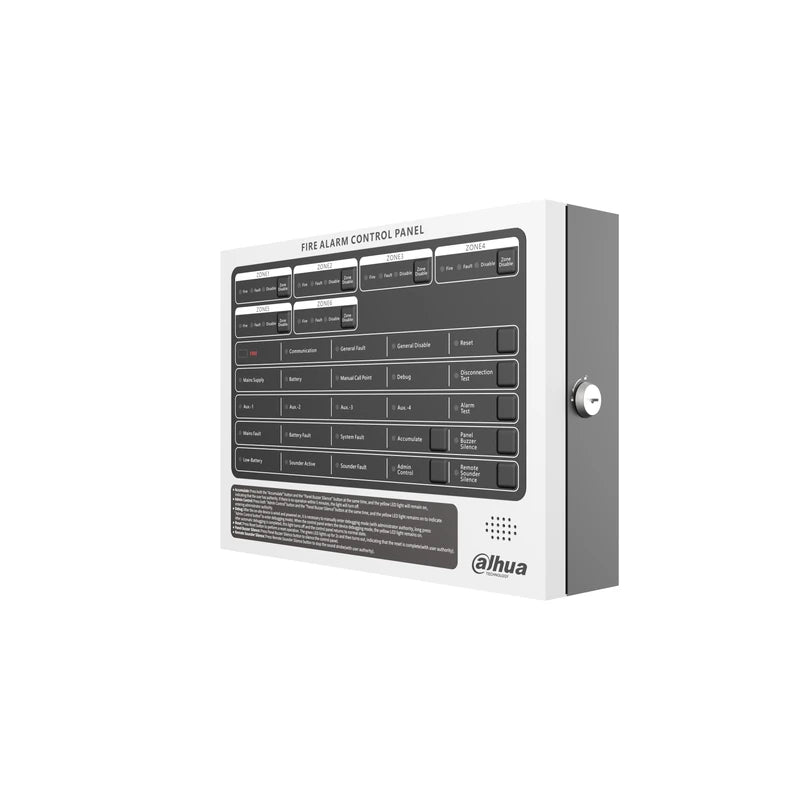

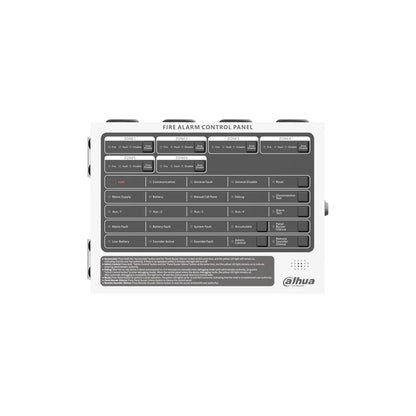

Conventional Fire Alarm Control Panel-6 Zones
Conventional Fire Alarm Control Panel-6 Zones
This product is designed to record and export capacity of historical events related to fire, fault and operation. With RS-485 interface, the device supports convenient integration. Its 100VAC to 240VAC main power supply ensures the stable operation. Besides, ethernet interfaces enables communication with IoT platform. The product also provides flexible connection with 4 dry contacts.
SKU:DHI-HY-C102-6
Product features
Product features
·90VAC to 270VAC main power supply ensures the stable operation
· 4 dry contacts make connection flexible
· Ethernet interfaces enables communication with IoT platform
· RS-485 interface contributes to convenient integration
· Record and export capacity of historical events for each of fire, fault and operation
· Designed in accordance with EN54-2 and EN54-4 standards
Functions
Functions
· Alarm Function
· Platform Access
· System Linkage
· Data Output
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
Number of Zones: 6 Zone
Capacity: 25 detectors per zone
Main Power: AC90-240V/50Hz, 60Hz
Backup Power: 2 lead-acid batteries (12V/2.5Ah each)
Output Current: 2A
Sounder Output - Fault: 50dB
Sounder Output - Alarm: 60dB
Fire Bell Output: DC 28V/500mA
Dimensions: 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
Weight: 3.5 kg / 5 kg (with 2 batteries)
Operating Temperature: –10°C to +50°C (+14°F to +122°F)
Operating Humidity: ≤ 95% RH (no condensation)
Protection Grade: IP30

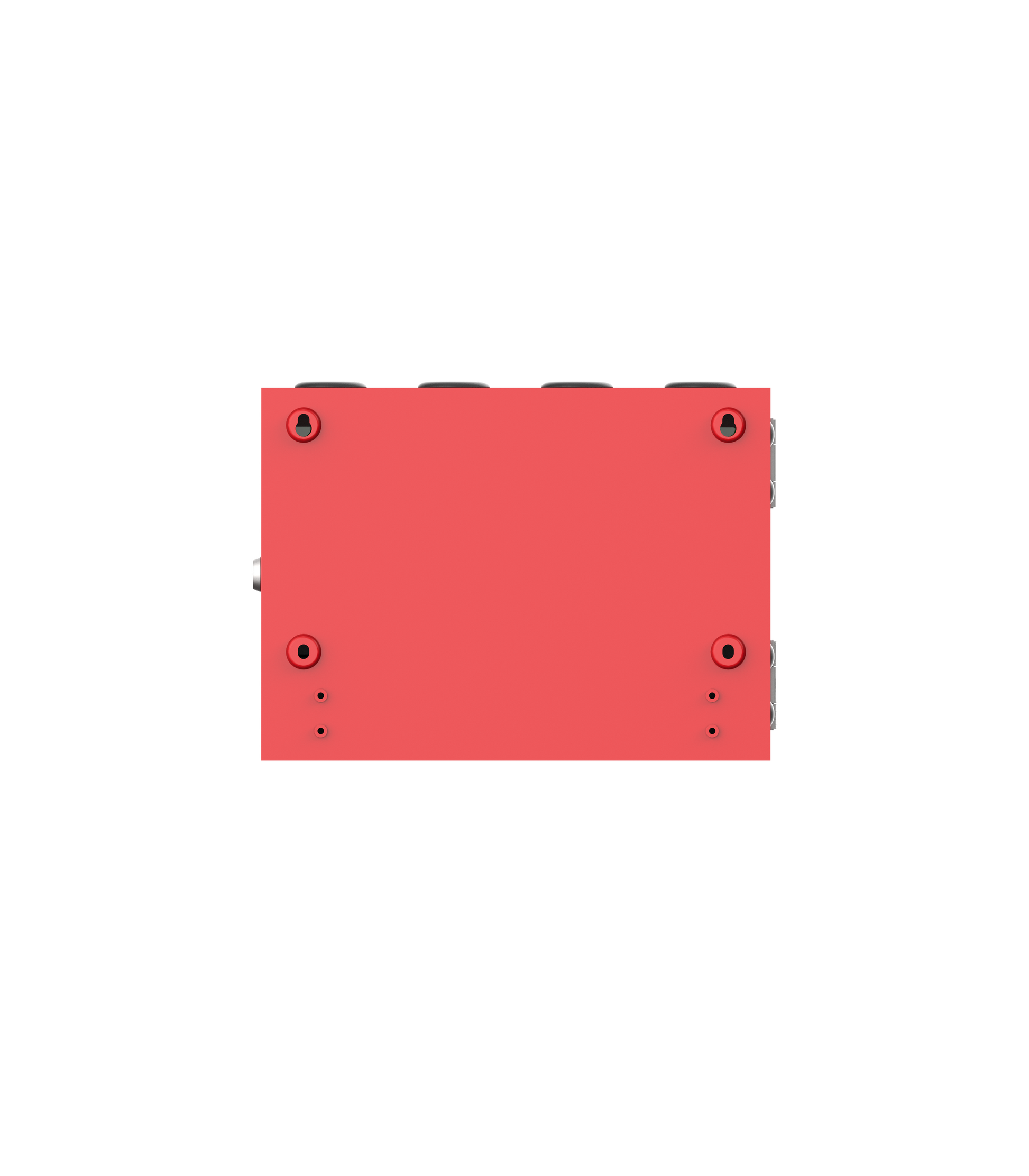

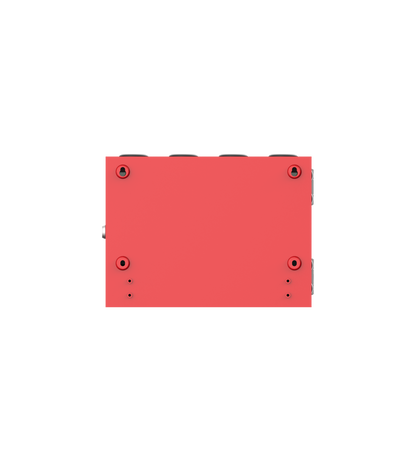

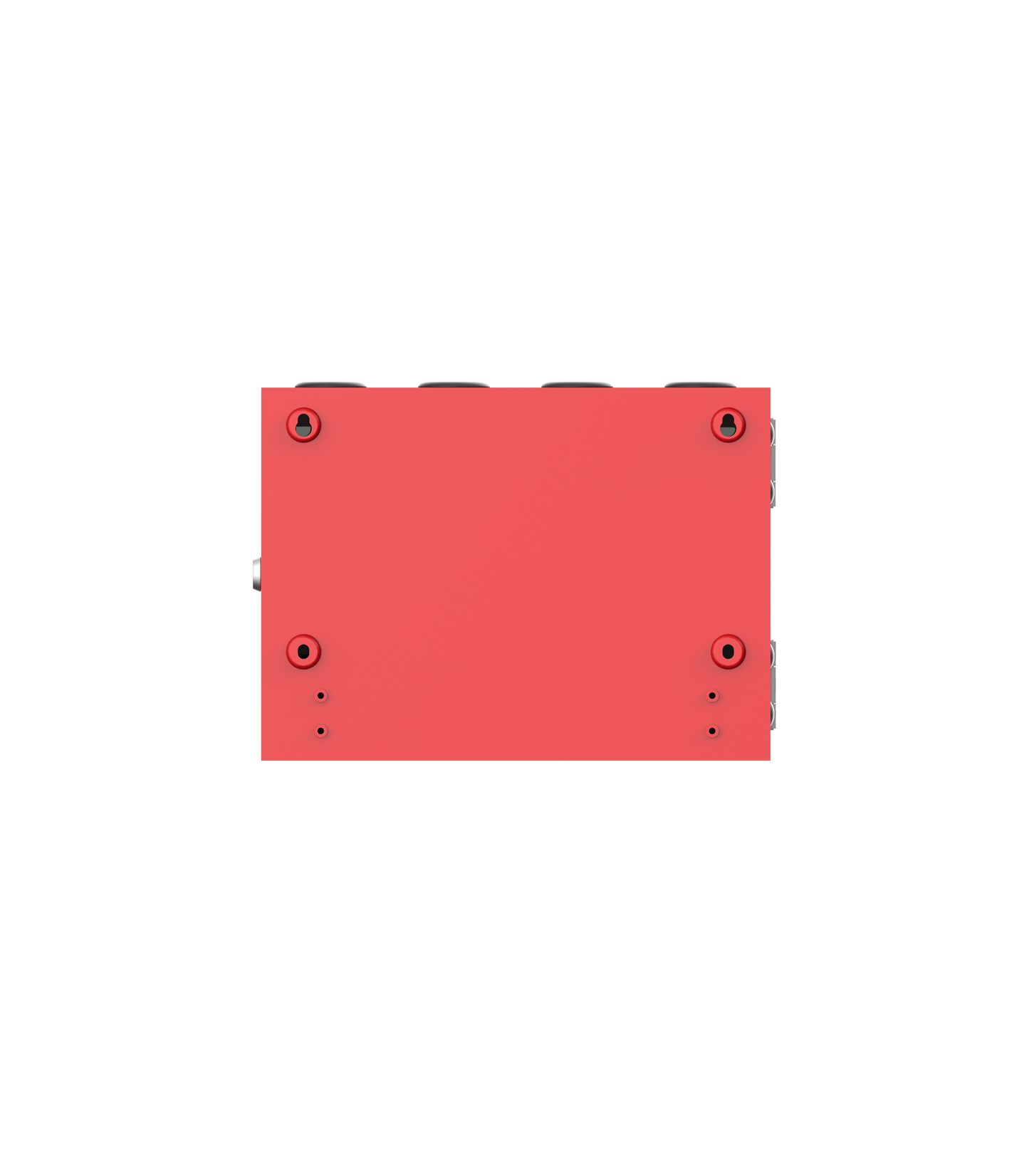

Installation: Wall mount
Compliance Standard: EN54-2, EN54-4
Out of stock
Couldn't load pickup availability
Conventional Fire Alarm Control Panel-6 Zones
Reliable power, smart connectivity.
Stable Power Supply
Supports a wide input voltage range from 90VAC to 270VAC, ensuring stable and reliable operation in various power environments.
Flexible System Integration
Equipped with 4 dry contacts and an RS-485 interface for flexible connection and convenient integration with different systems.
IoT-Enabled Communication
Built-in Ethernet interfaces enable seamless communication with IoT platforms for smarter monitoring and management.
Compliant & Traceable
Designed in accordance with EN54-2 and EN54-4 standards, with historical fire, fault and operation events recording and export capability.
