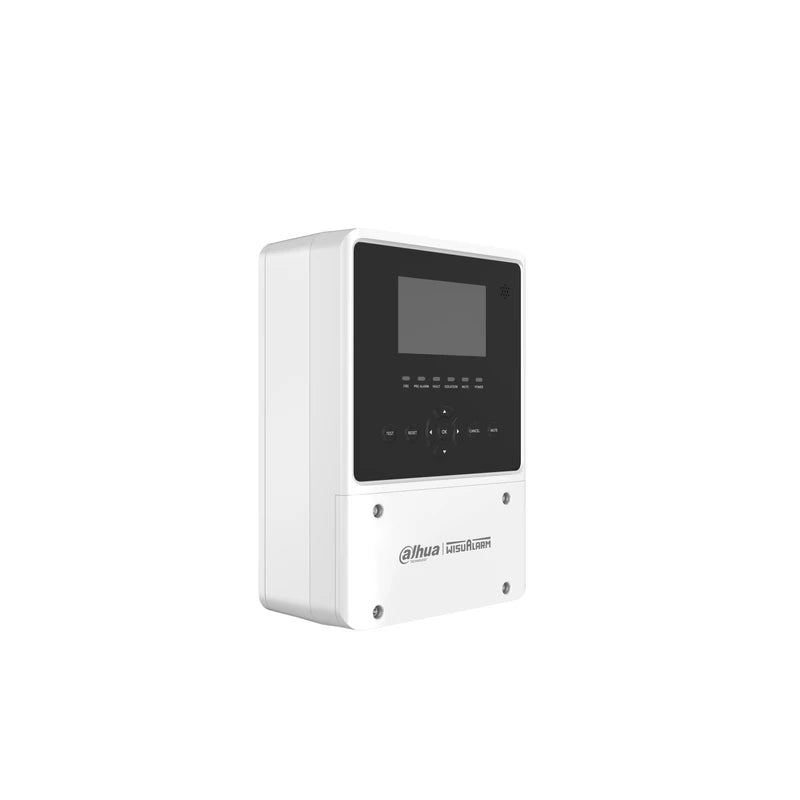

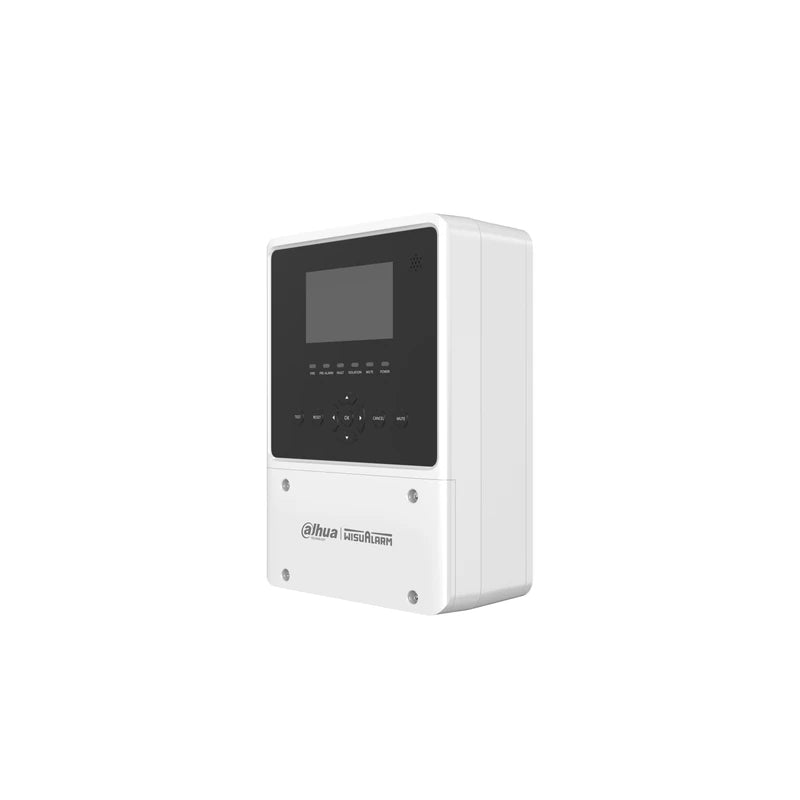

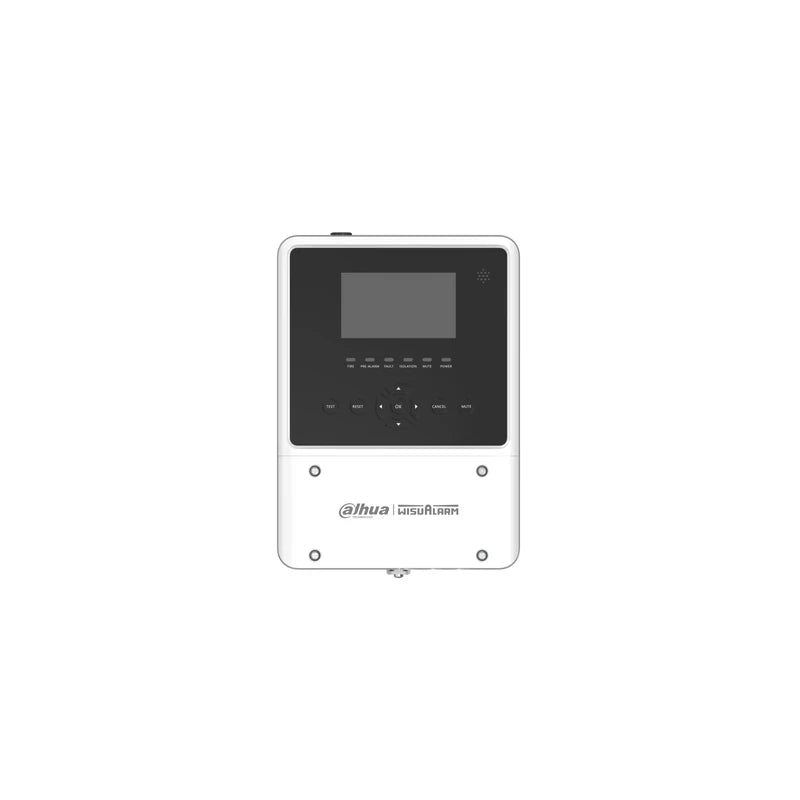

2 Pipes Aspirating Smoke Detector
2 Pipes Aspirating Smoke Detector
Designed for precise and reliable smoke detection, this product features dual-wave length laser identification, dynamic self-learning, and a wide sensitivity range from 0.001% to 30% obs/m. Its flexible installation design, intelligent maintenance reminders, and extensive event logging make it an ideal choice for demanding environments.
SKU:DHI-HY-ASD620B-P
Product features
Product features
· Wide sensitivity range -- 0.001% to 30% obs/m
· Precise detection and low false alarm rate due to dual-wavelength laser particle identification technology
· Environment dynamic self-study algorithm ensures the accurat detection performance with strong environment adaptation
· Maximum length of each sampling pipe is 79 m (259 ft), and maximum sampling holes number is 16
· It supports selecting the appropriate sensitivity level based on the application scenario, and the five alarm thresholds for each level could be set directly.
· Intelligently calculating the remaining life of built-in filter and reminding user to change new filter in advance
· The detector has 5 relay outputs, which could be configured to different alarm/fault events, and then linked with fire alarm control panel
· Supporting a total of 100,000 event logs
Functions
Functions
· Dual-wave length laser particle identification technology
· Detection chamber self-cleaning
· Intelligent Detection
· Large detection area
· High adaptability and easy installation and maintenance
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
Detection Sensitivity: 0.001% to 30% obs/m
Maximum Monitoring Area: 1422 m²
Alarm Levels:
Pre-alarm, Action, Alarm 1, Fire Alarm 2, Fire Alarm 3
Event Records: 100,000
Protection: IP66
Casing Material: PC
Standards: VdS 2344:2022-10, VdS 2543:2021-03, EN 54-20:2006 + AC:2008 Class A, B, C
Certifications: VdS, CE, UKCA
Out of stock
Couldn't load pickup availability
Collapsible content
2 Pipes Aspirating Smoke Detector
Intelligent Aspirating Smoke Detection for Early Warning
Early and Accurate Detection
Wide sensitivity range from 0.001% to 30% obs/m with dual-wavelength laser technology for precise detection and low false alarms.
Intelligent Environmental Adaptation
Supports flame detection, hot and cold spot alarm, and industrial temperature detection for comprehensive safety monitoring.
Flexible Pipe Network Design
Supports up to 79 m sampling pipe length and up to 16 sampling holes to meet diverse application requirements.
Smart Alarm and Event Management
5 alarm levels, 5 relay outputs and 100,000 event logs support efficient monitoring, customization and analysis.
