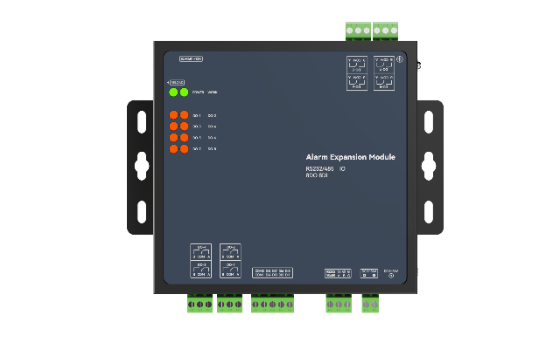

Alarm Expansion Module
Alarm Expansion Module
This module features a durable metallic housing design with wall-mounted installation. It supports a wide temperature range of -30°C~75°C which is suitable for more industrial scenarios. With a wide voltage input of 9V~36V, the device ensures stable performance under various power conditions. Its built-in hardware watchdog design enhances system reliability. Besides, overcurrent protection and reverse connection prevention provide enhanced safety and long-term stability.
SKU:DHI-HY-AM08E
Product features
Product features
· Metallic housing design, supporting wall-mounted installation
· -30°C~75°C wide temperature range operation, suitable for more
industrial scenarios
· Supports 9V~36V wide voltage supply
· Hardware watchdog design, with high reliability
· Supports overcurrent protection, reverse connection prevention, etc
Functions
Functions
· Durable metal housing
· Wide temperature range
· Flexible power input
· High reliability design
· Comprehensive protection
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
· Working Voltage DC 9V~36 V
· Working Current Standby: 32mA/12V; Operation: 306mA/12V; Max.: 320mA/12V
· Operating Temperature -30°C to+75°C
· Dimensions 154.5 mm×142.5 mm×37.5 mm (6.08 "×5.6"×1.48")
· Weight 0.6 kg
· Compliance Standard CE, RoHs
Out of stock
Couldn't load pickup availability
Collapsible content
Alarm Expansion Module
Rugged Design with Reliable performance
Durable metal housing design
Durable metallic housing design with wall-mounted installation ensures long-lasting operation in harsh environments.
Wide temperature operation
Wide temperature range from -30°C~75°C makes it possible even in extreme conditions.
Flexible wide voltage output
The product supports 9V~36V voltage supply for compatibility with diverse power systems.
Comprehensive protection
Equipped with hardware watchdog and multiple protection, this product offers long-term security and stability.
