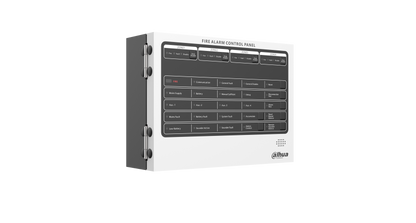

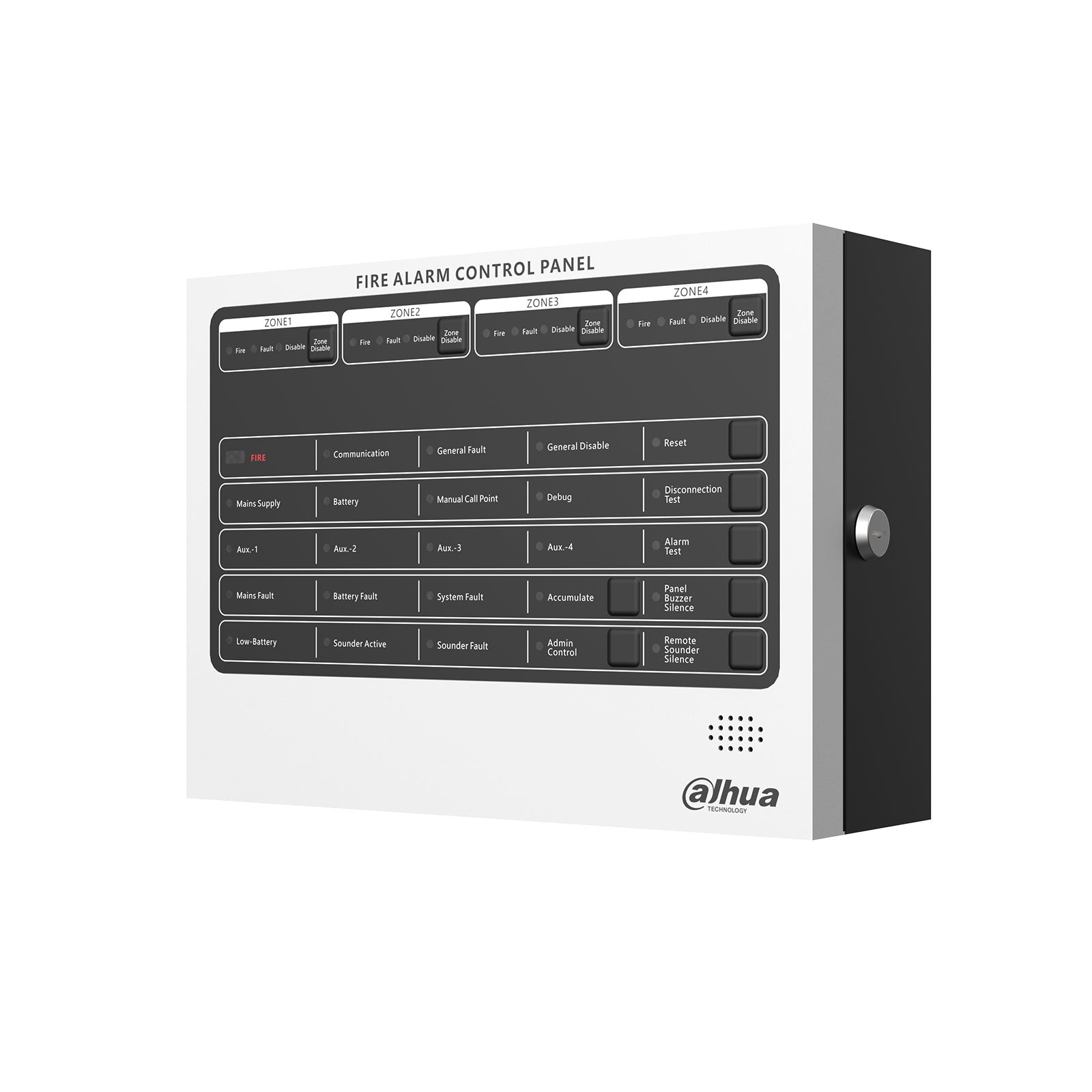

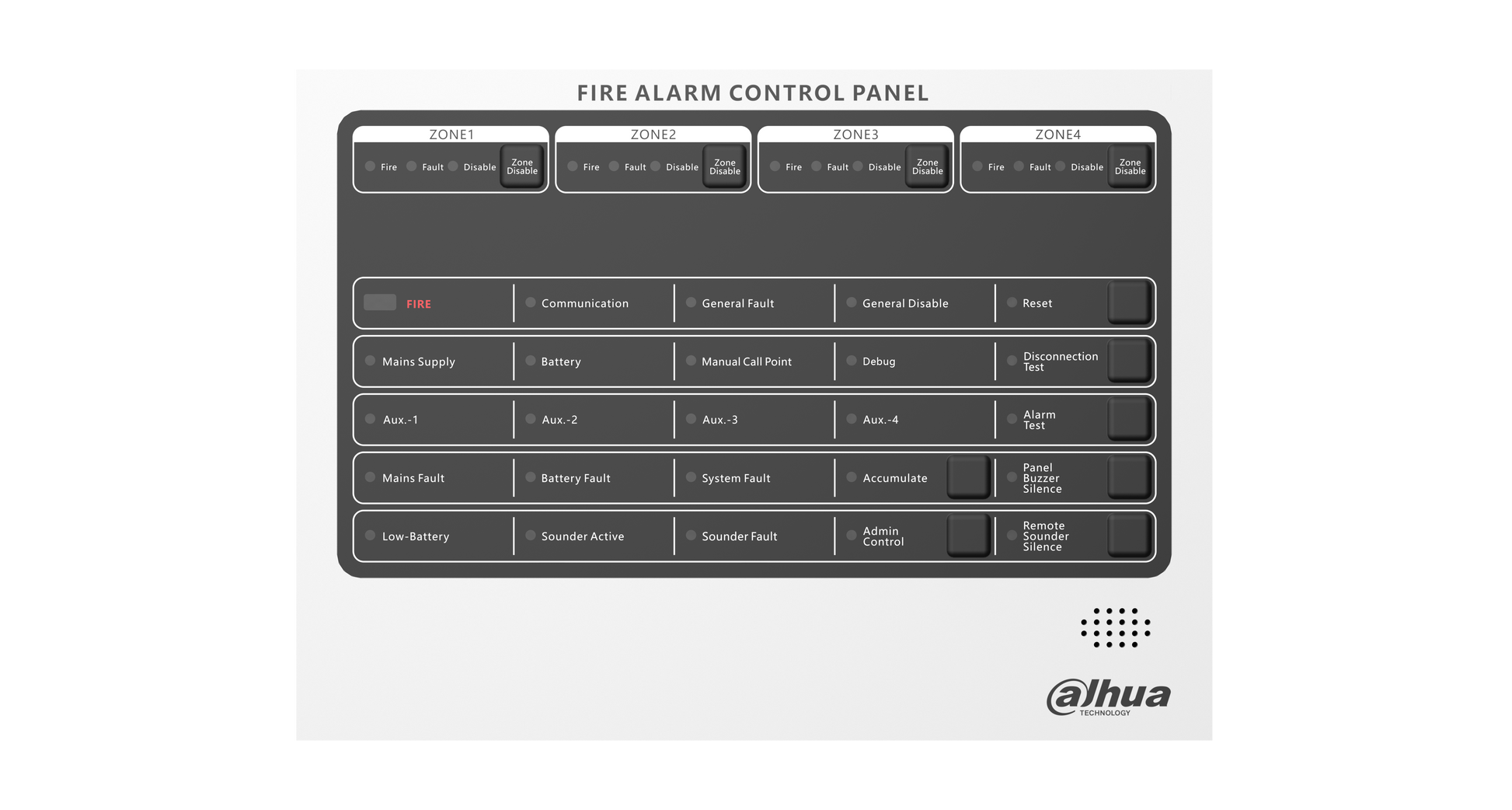

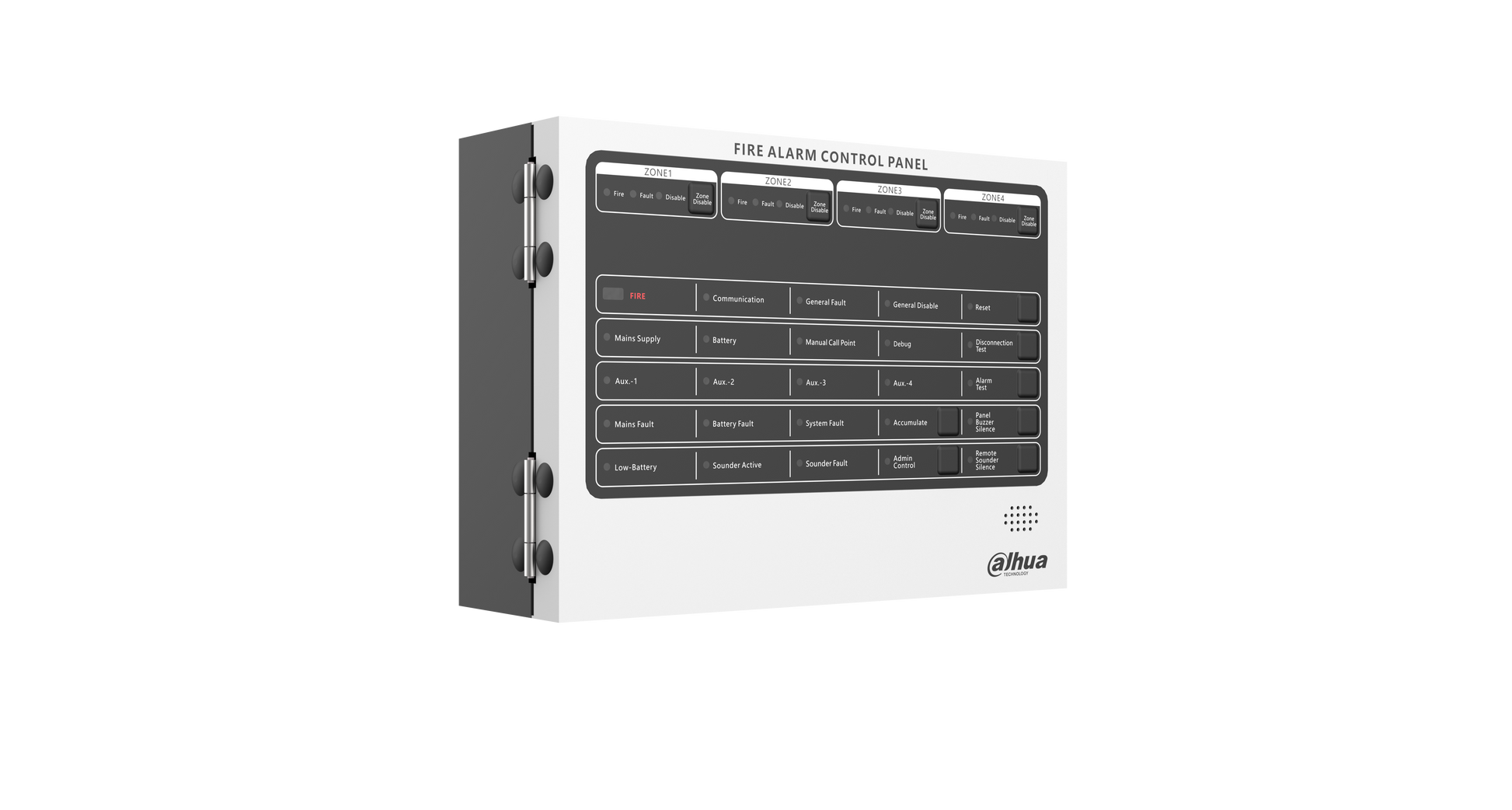

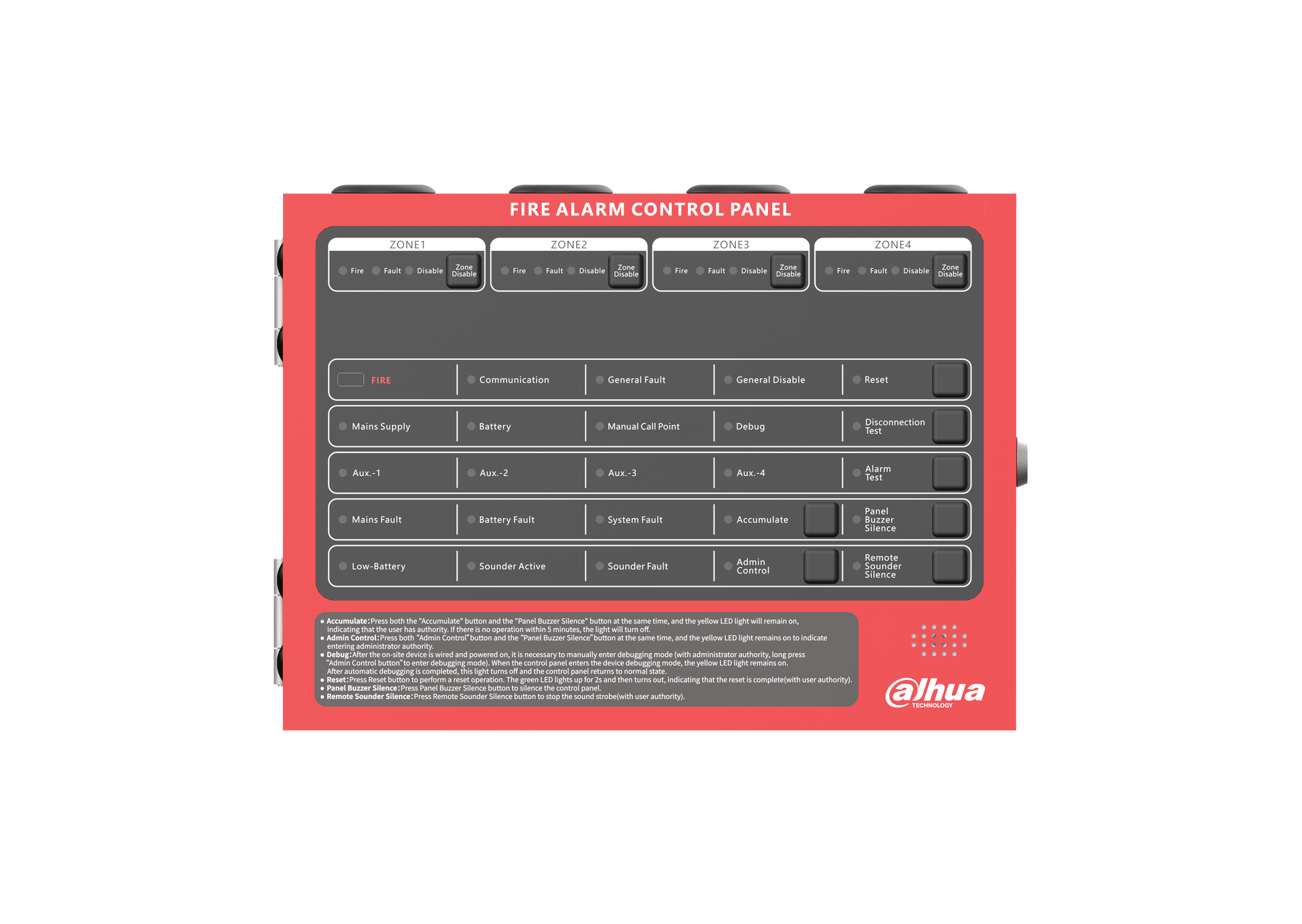

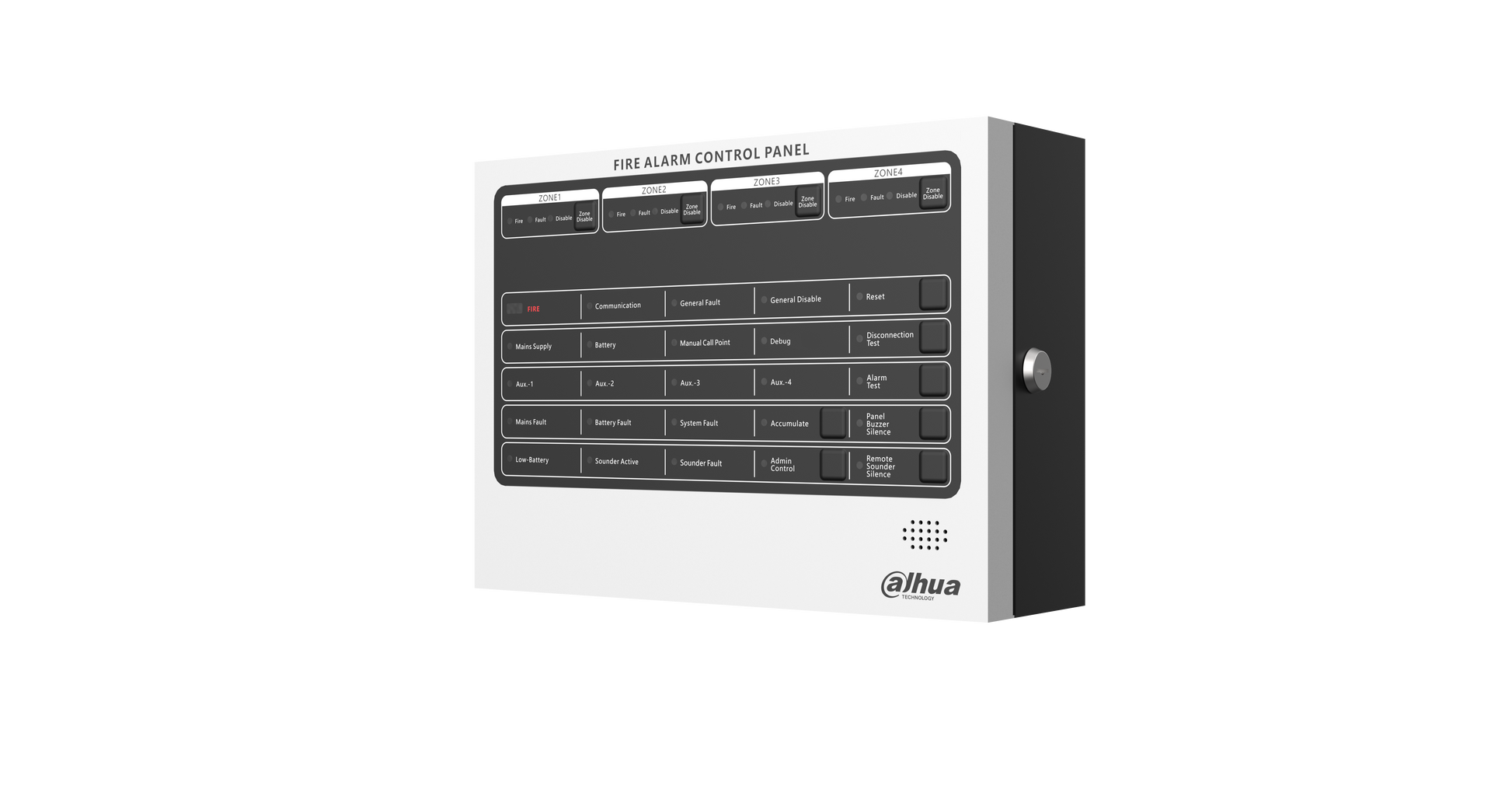

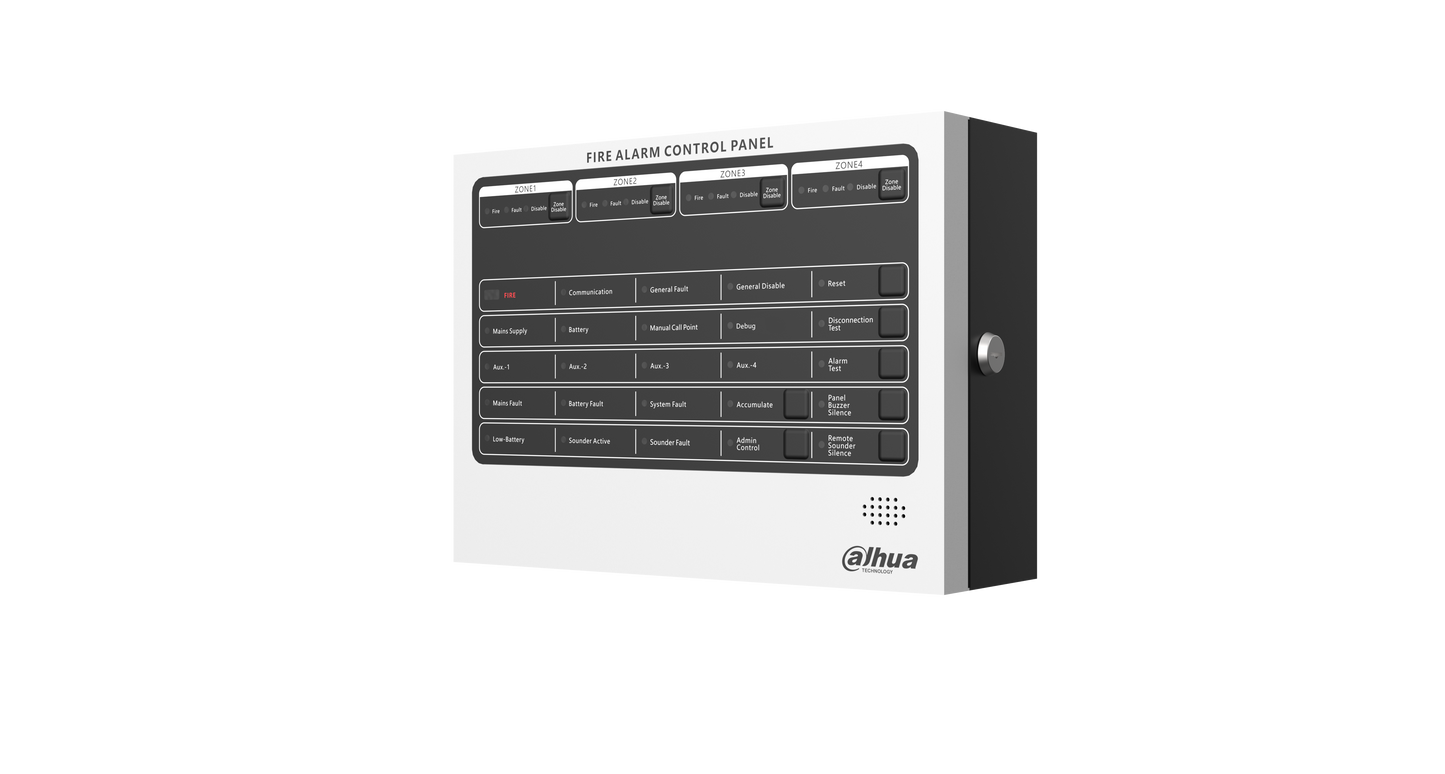

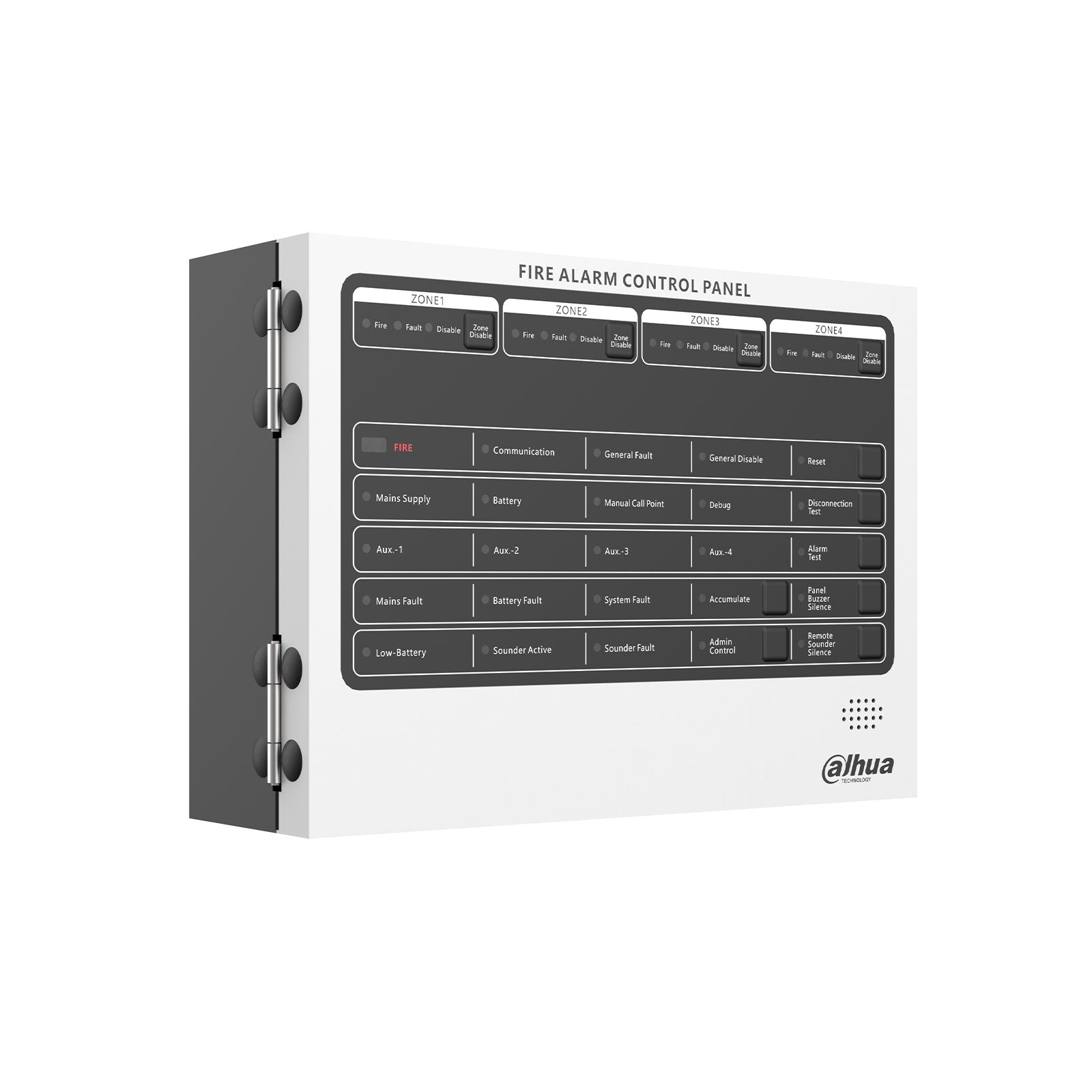

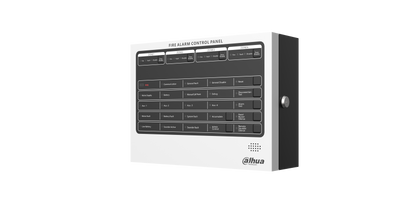

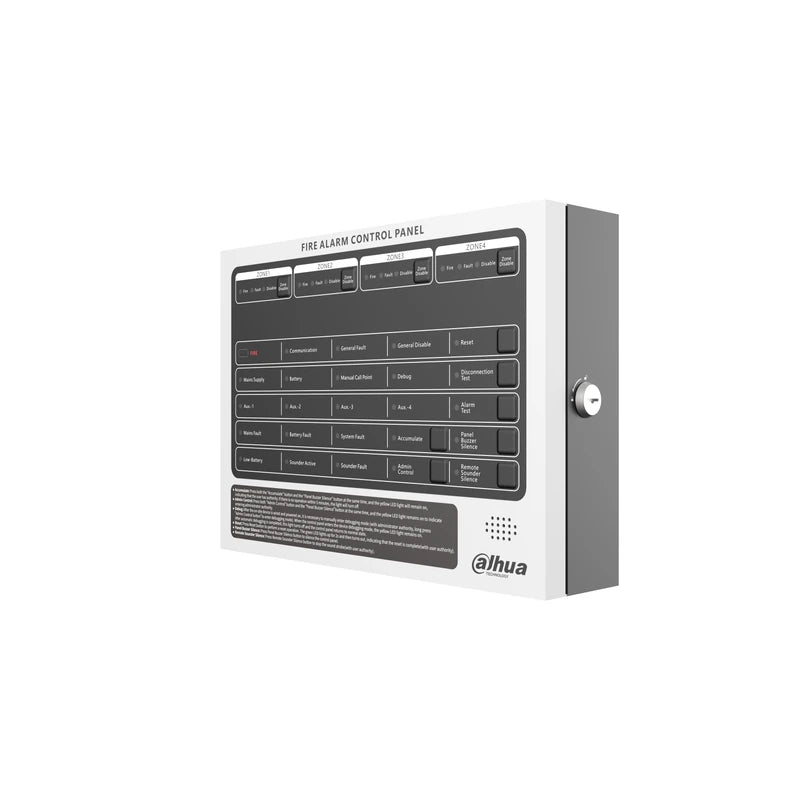

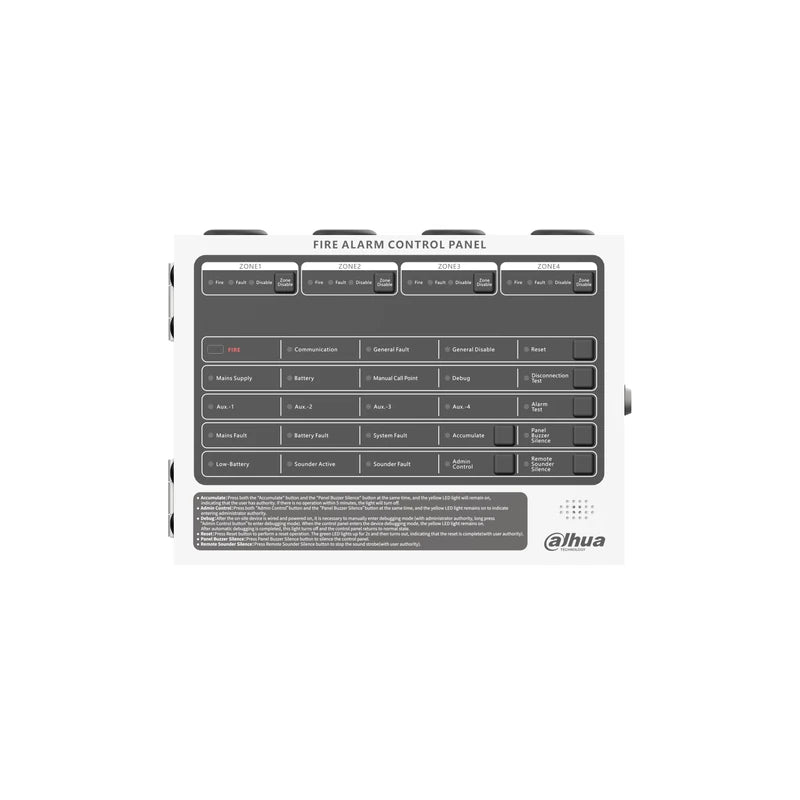

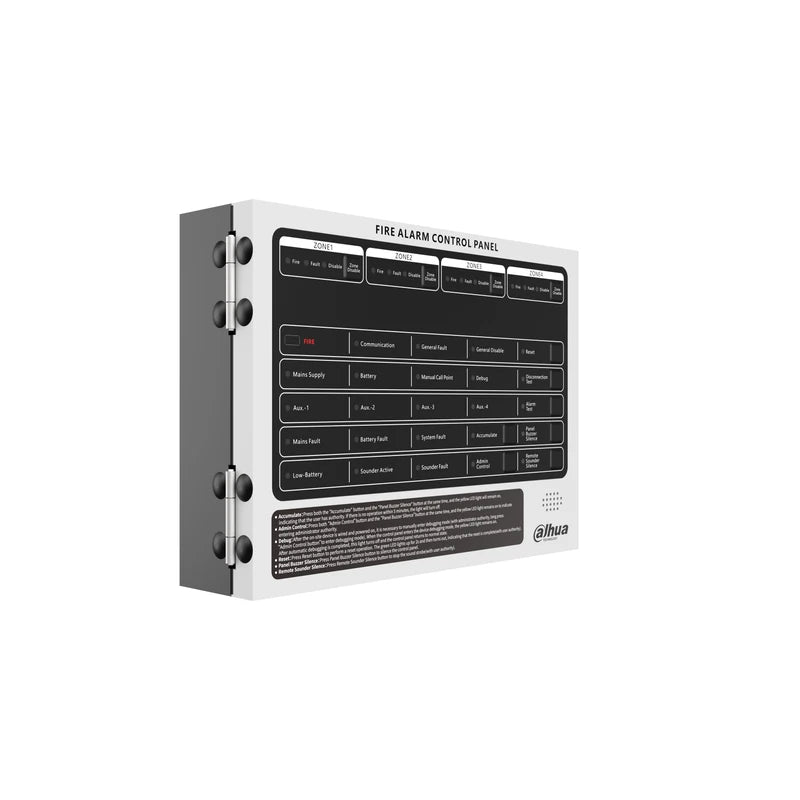

Conventional Fire Alarm Control Panel-4 Zones
Conventional Fire Alarm Control Panel-4 Zones
This product can record and export capacity of historical events related to fire alarms, faults and operations. Equipped with RS-485 interface, the device allows convenient integration. Its 100VAC to 240VAC wide-range main power supply ensures the stable operations. In addition, the ethernet interfaces enables communication with IoT platform. With 4 dry contacts, the product also makes connection flexible.
SKU:DHI-HY-C102-4
Product features
Product features
· 100VAC to 240VAC main power supply ensures the stable operation
· 4 dry contacts make connection flexible
· Ethernet interfaces enables communication with IoT platform
· RS-485 interface contributes to convenient integration
· Record and export capacity of historical events for each of fire, fault and operation
· Designed in accordance with EN54-2 and EN54-4 standards
Functions
Functions
· Alarm Function
· Platform Access
· System Linkage
· Data Output
Service
Service
5-YEAR WORRY-FREE Warranty
Technical Specifications
Technical Specifications
Number of Zones: 4 Zone
Capacity: 25 detectors per zone
Main Power: AC100-240V/50Hz, 60Hz
Backup Power: 2×12V 7Ah battery (optional)
Output Current: 1A
Sounder Output - Fault: 50dB
Sounder Output - Alarm: 60dB
Fire Bell Output: DC 28V/500mA
Dimensions: 400.0 mm×92.2 mm×265.0 mm (15.75" × 3.63" × 10.43")
Weight: 3.45 kg, 7.4 kg (with 2 batteries)
Operating Temperature: –10°C to +50°C (+14°F to +122°F)
Operating Humidity: ≤ 95% RH (no condensation)
Protection Grade: IP30
Installation: Wall mount
Compliance Standard: EN54-2, EN54-4
Out of stock
Couldn't load pickup availability
Conventional Fire Alarm Control Panel-4 Zones
Reliable Fire Alarm Control with Flexible Integration
Wide-Range Power Supply
90VAC to 200 VAC ensures stable operations.

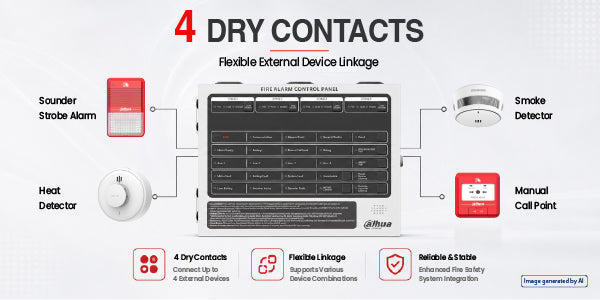

Flexible System Integration
4 dry contacts, Ethernet and RS-485 support flexible connection and easy integration.

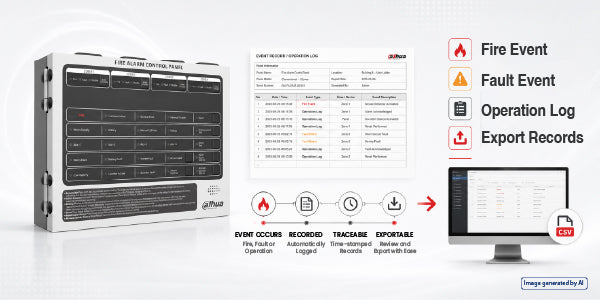

Event Recording & Export
Fire, fault and operation events can be recorded and exported for convenient management.
EN54 Standard Compliance
Designed in accordance with EN54-2 and EN54-4 standards for reliable fire safety applications.
