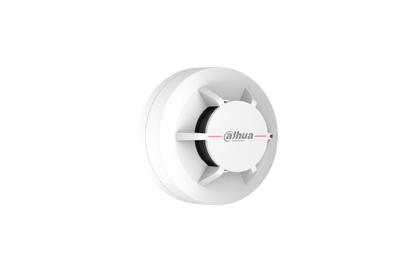

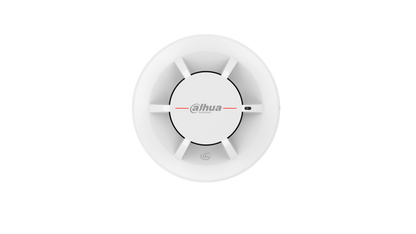

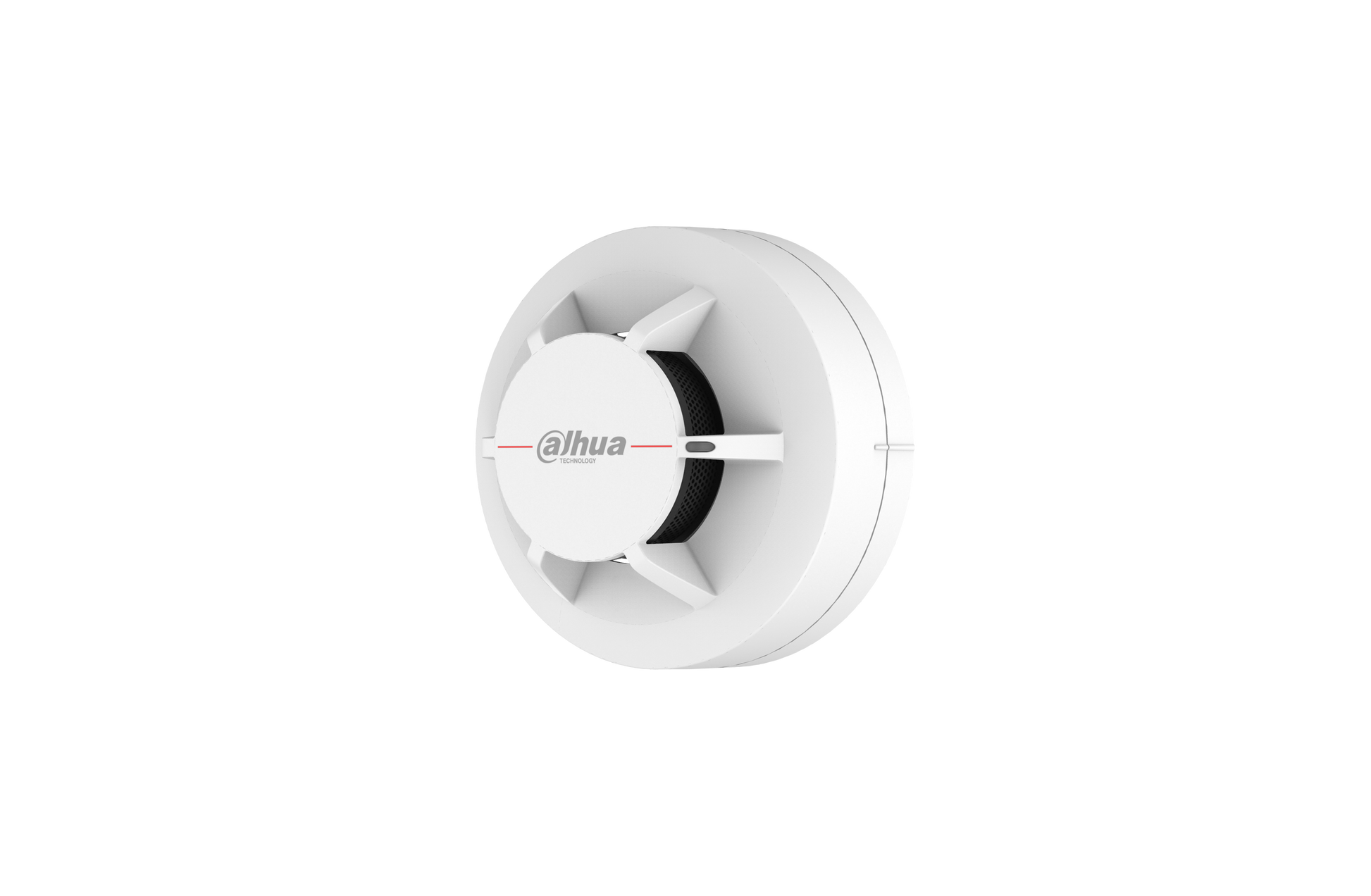

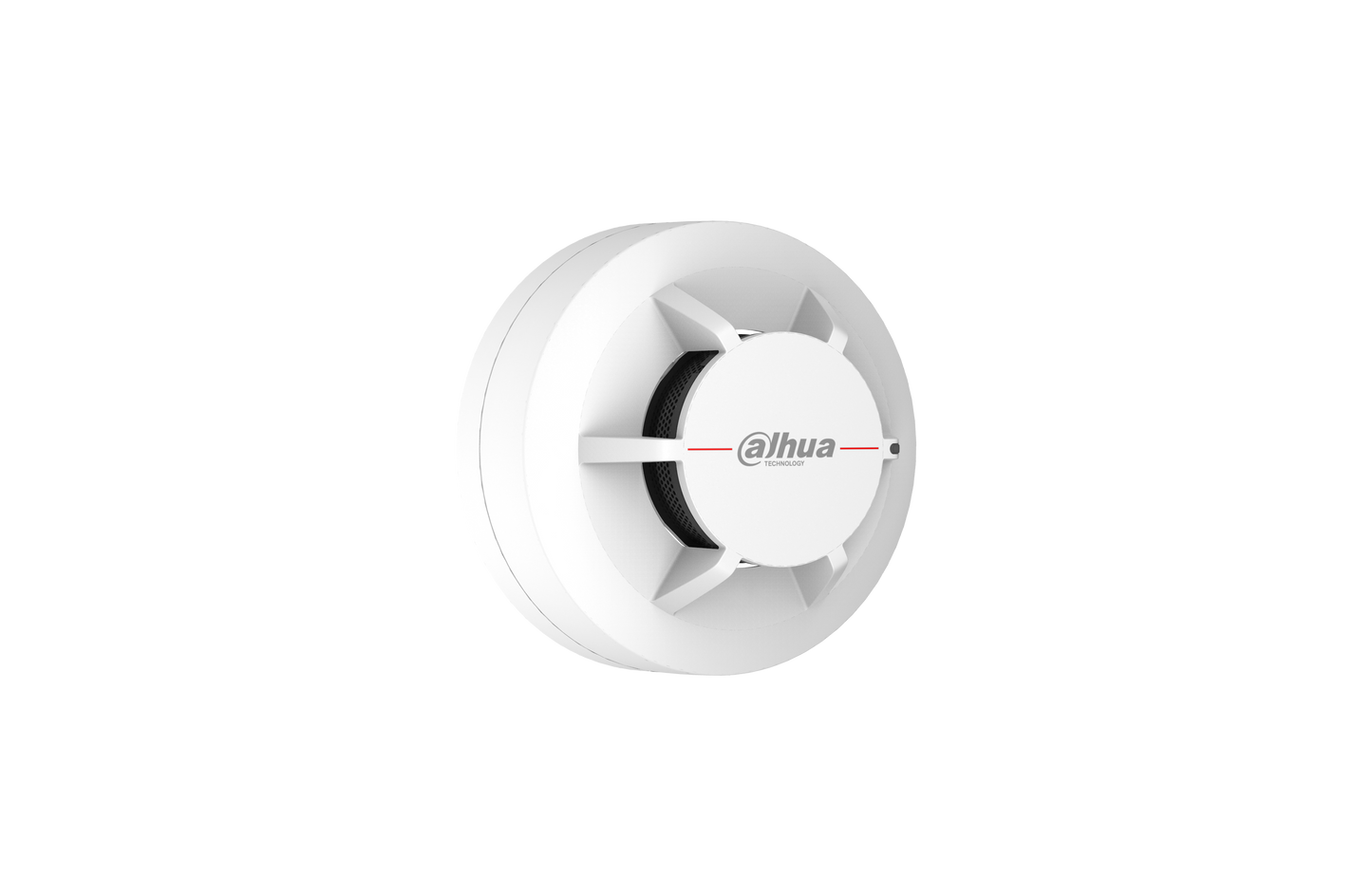

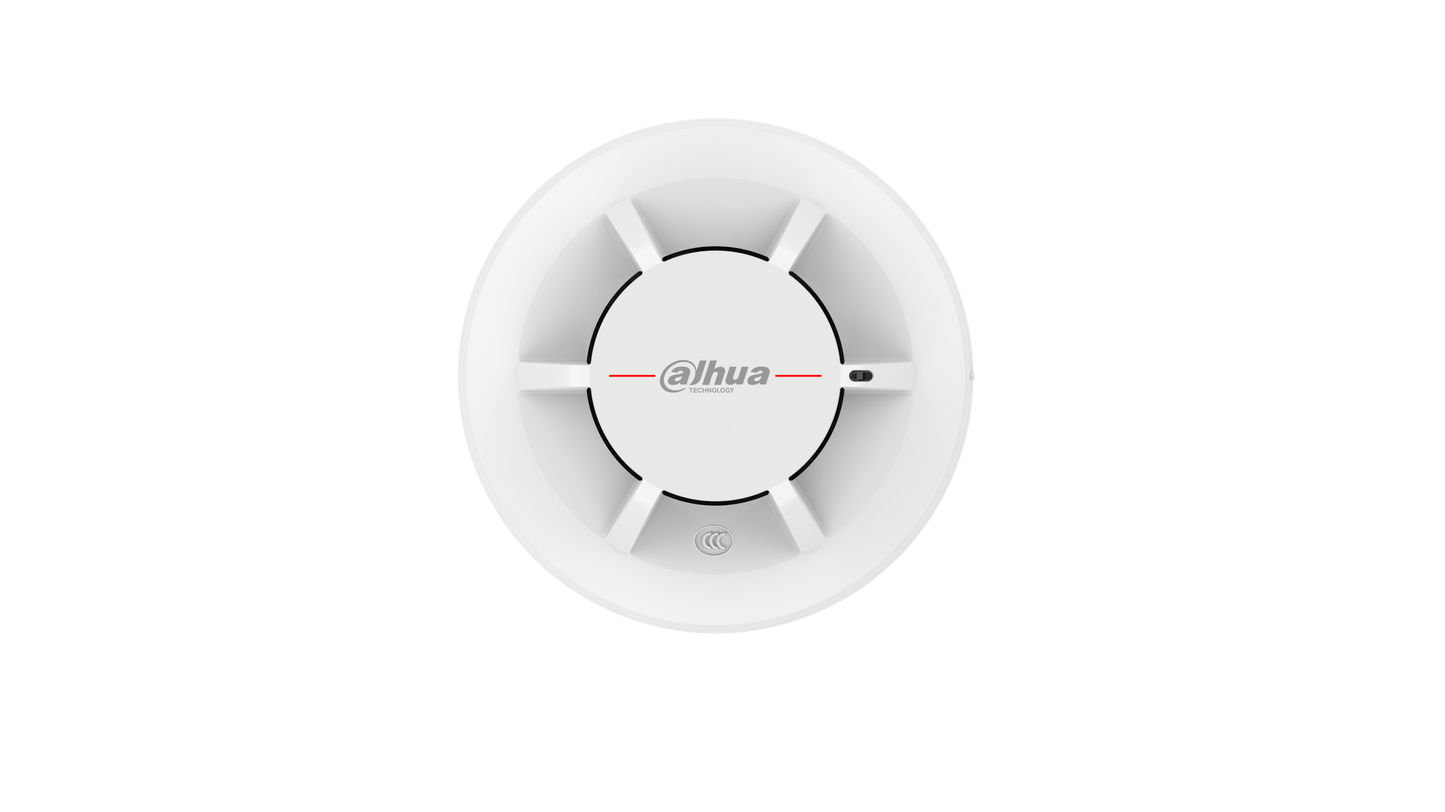

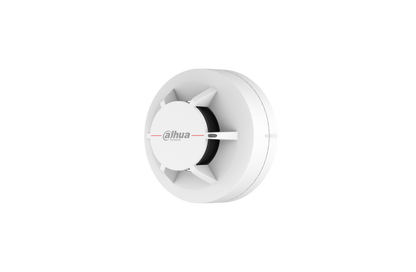

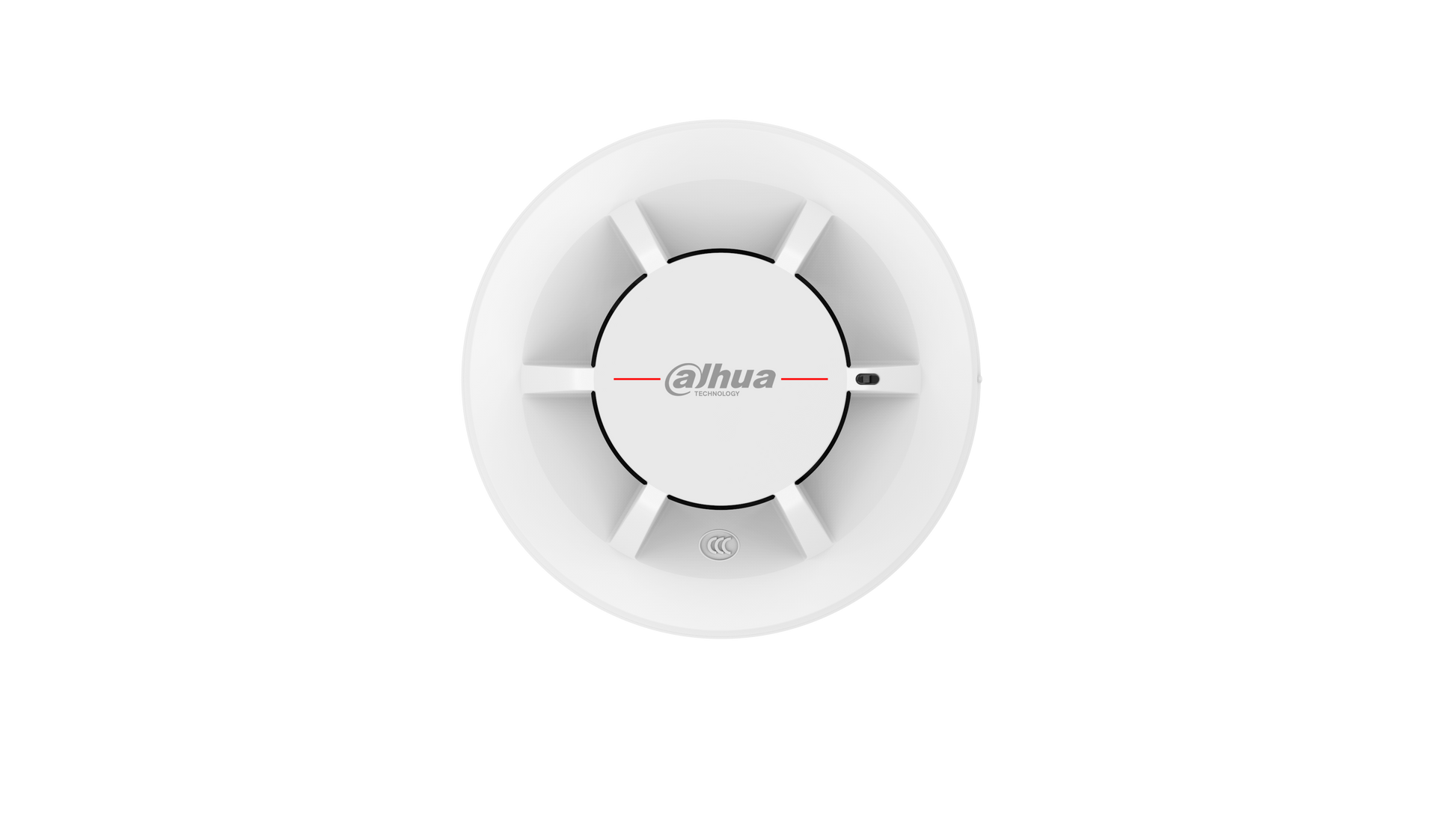

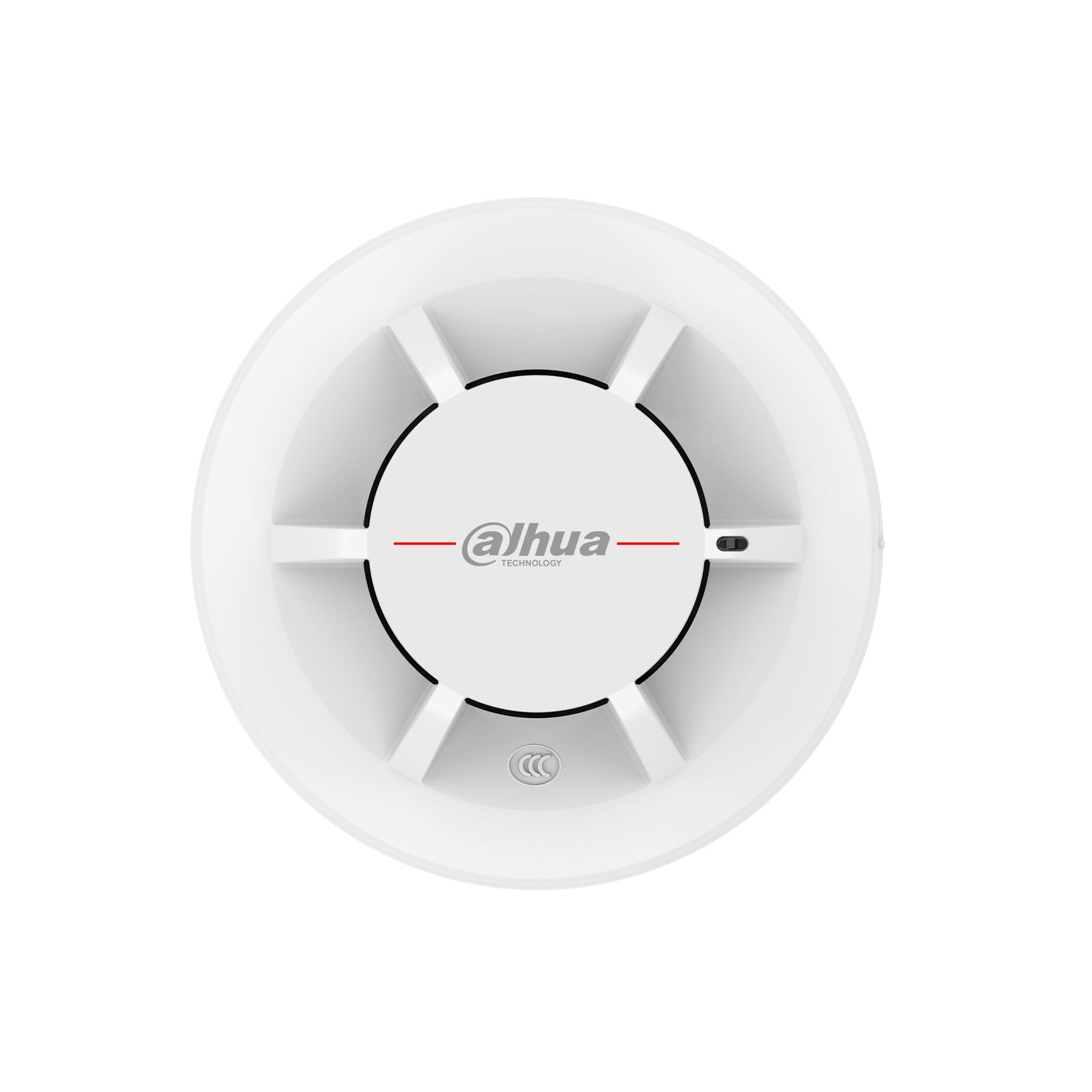

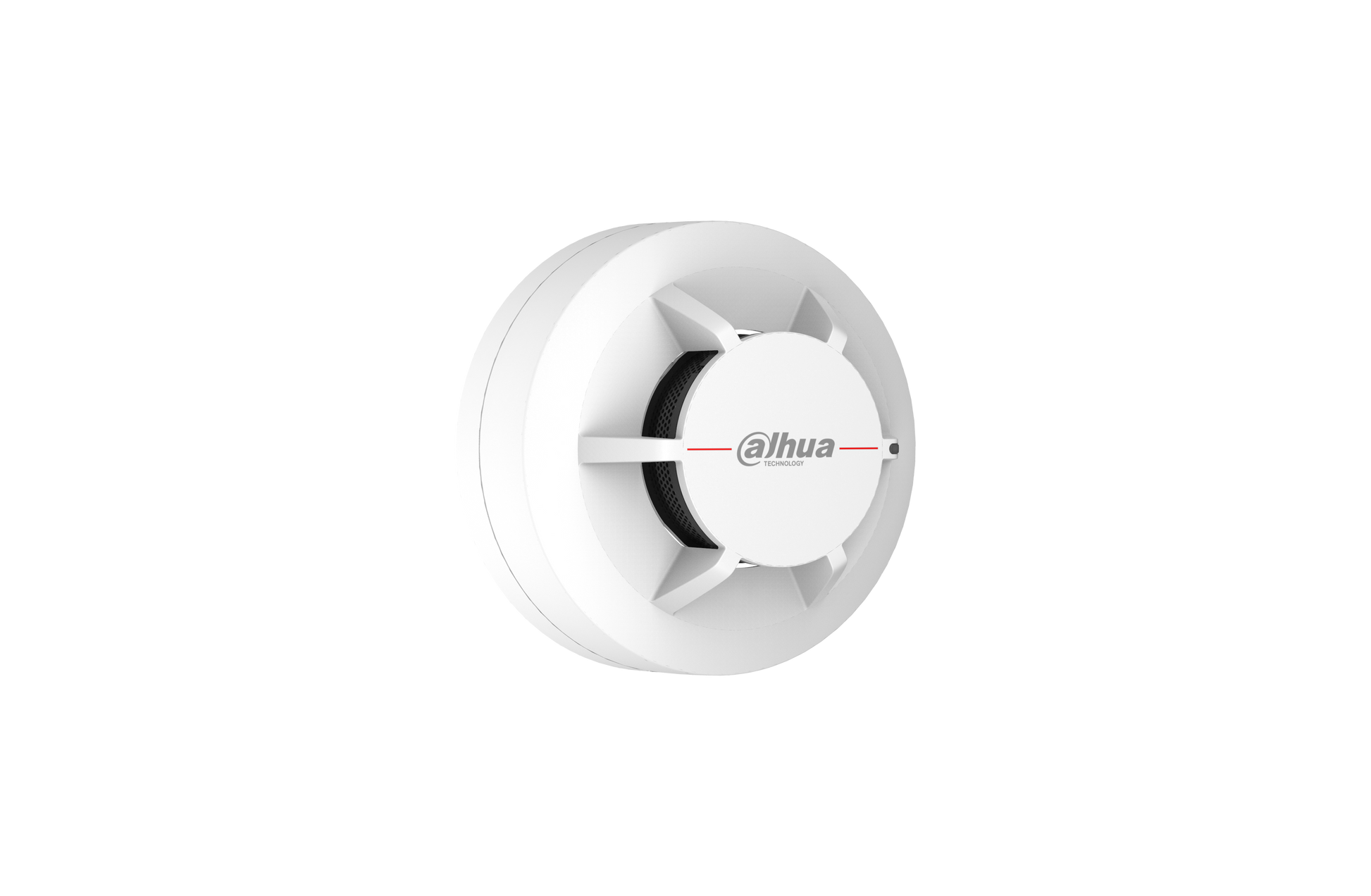

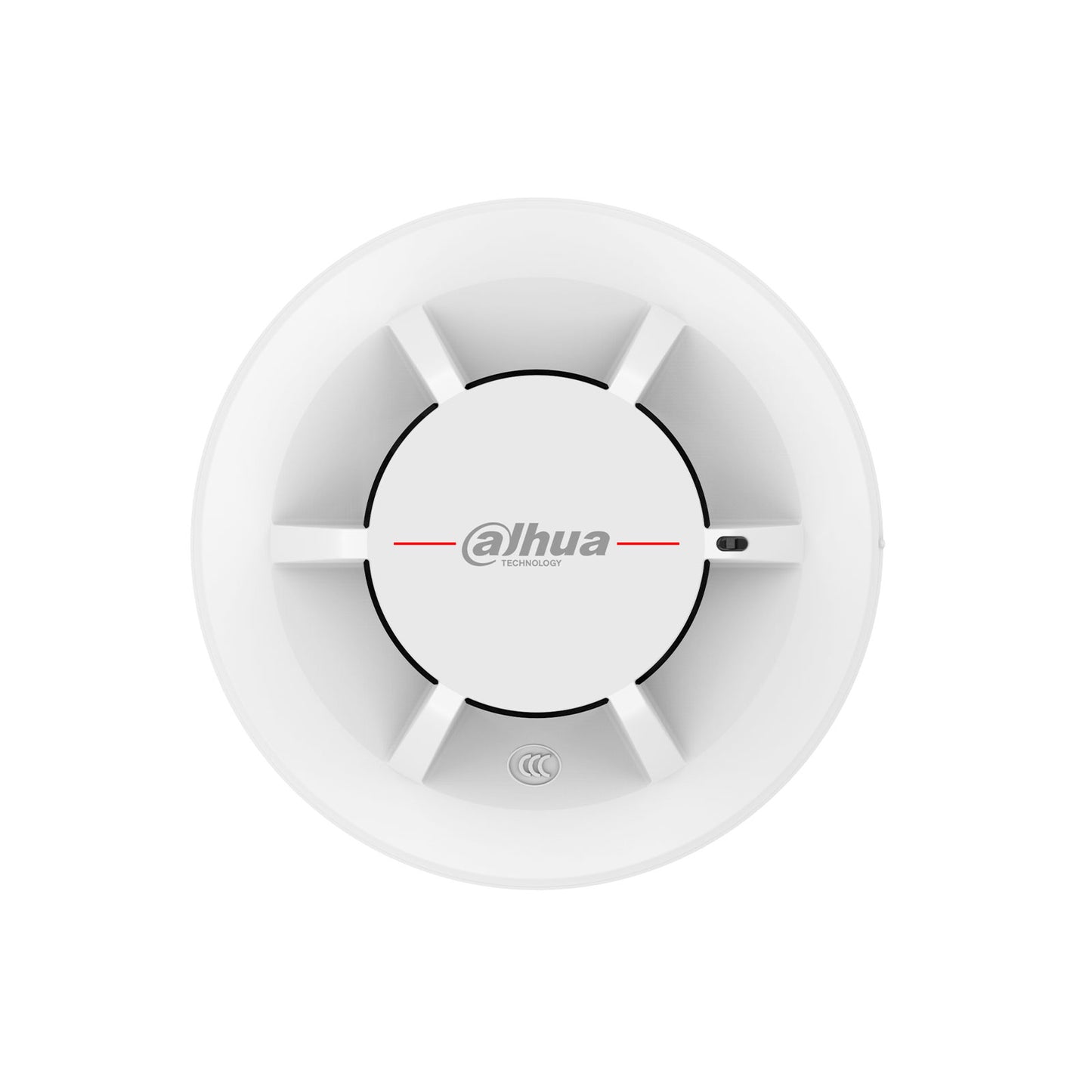

Conventional Smoke Detector

· Meets all requirements of latest EN54

· Two-wire, polarity-free realizes convenient wiring

· Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability

· Dual photoelectric smoking sensing chamber provides intelligent and accurate detection of smoke

· BLC algorithm automatically adjusts alarm threshold based on the smoke in the chamber, extending cleaning cycle and providing easier maintenance

· Non-loosening screws on base terminal for easy installation

· Contacts material is highly acid-resistant and rust-resistant

· Designed in accordance with EN54-7 standard

· Smoke detection

· Dual photoelectric smoke sensing chamber

· Non-addressable

5-YEAR WORRY-FREE Warranty

Working Voltage: DC9V-DC30V

Rated Power: 5.136mW

Current: Standby current: ≤ 45μA, Alarm current: ≤ 24mA

Alarm Mode: Visual alarm

Coverage Area: H ≤ 4 m (13.12 ft): 50 m², 4 m (13.12 ft) ≤ H ≤ 12 m (39.37 ft): 80 m²

Operating Temperature: –10°C to +55°C (+14°F to +131°F)

Operating Humidity: ≤ 95% RH (no condensation)

Dimensions (with base): Φ100 mm × 54 mm (Φ 3.00" × 2.13")

Weight (with base): 102 g (0.22 lb)

Installation: Ceiling Mount

Compliance Standard: EN 54-7
