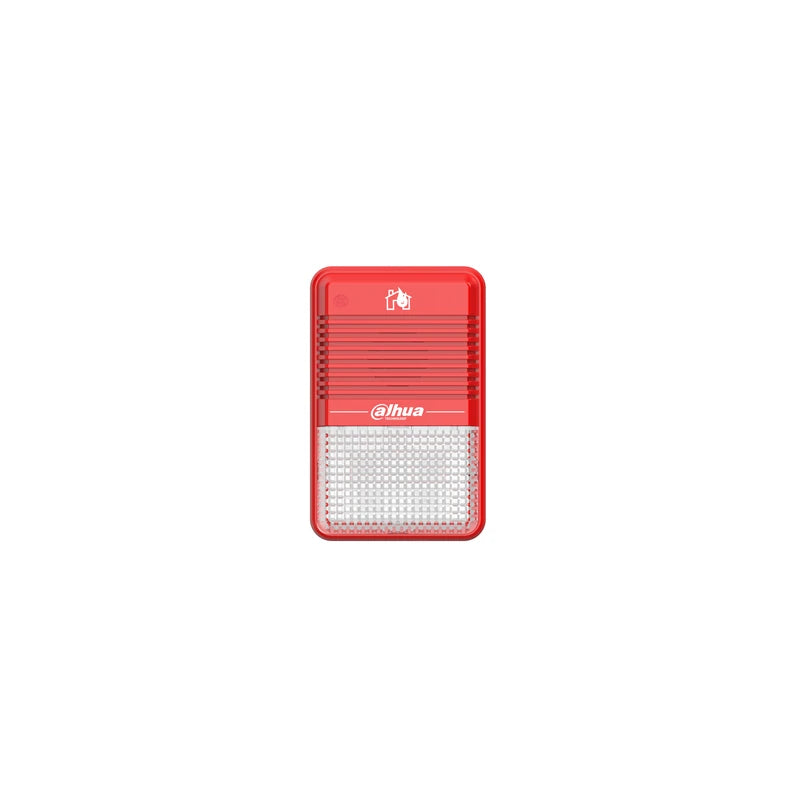

• DHI-HY-C151_Conventional Sounder Strobe_main_image3

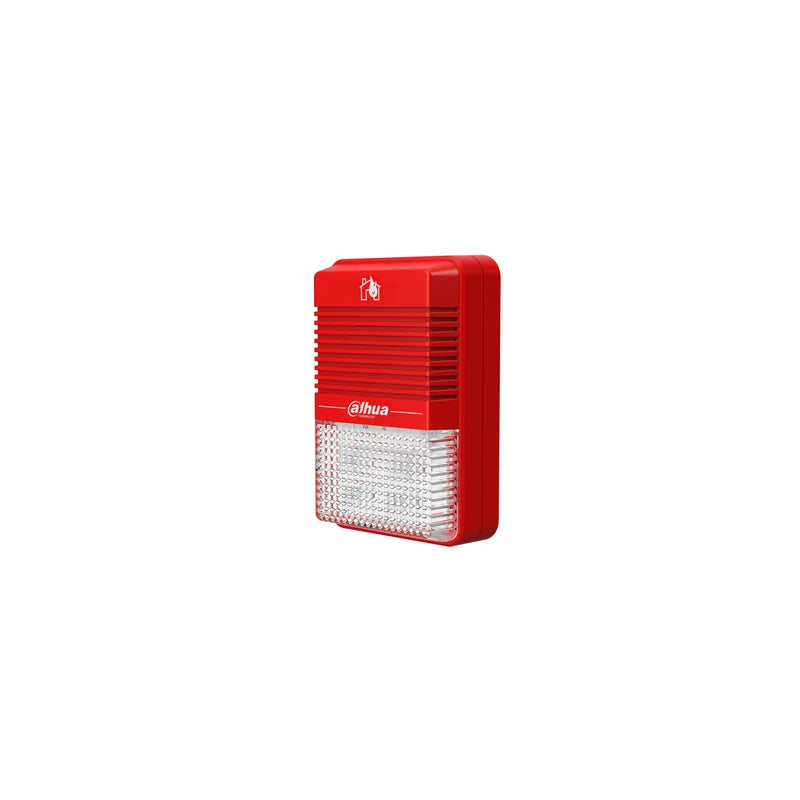

  • DHI-HY-C151_Conventional Sounder Strobe_main_image2
  • DHI-HY-C151_Conventional Sounder Strobe_main_image1
1 3

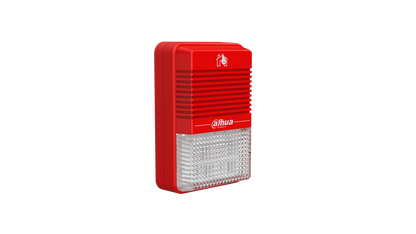

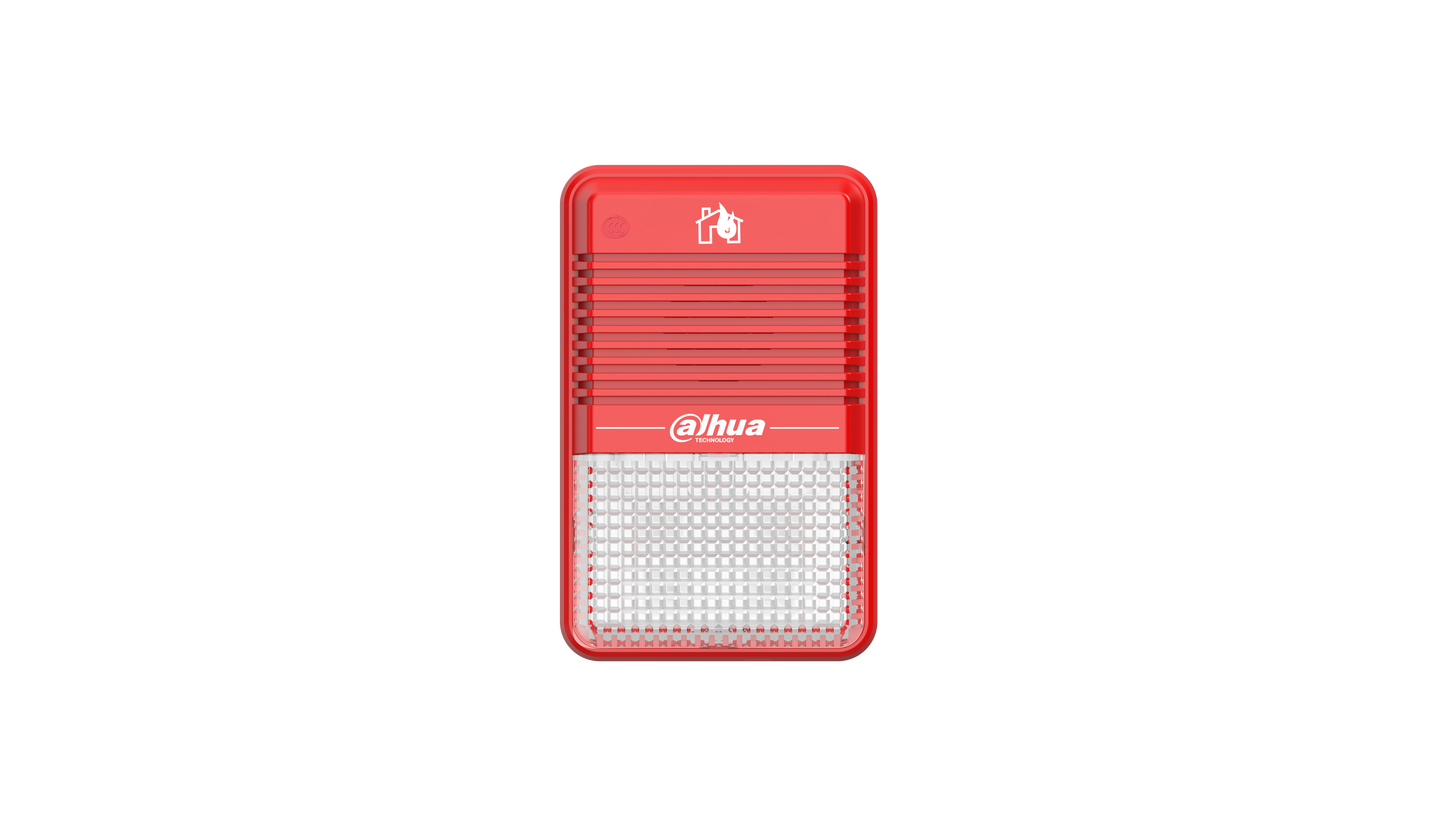

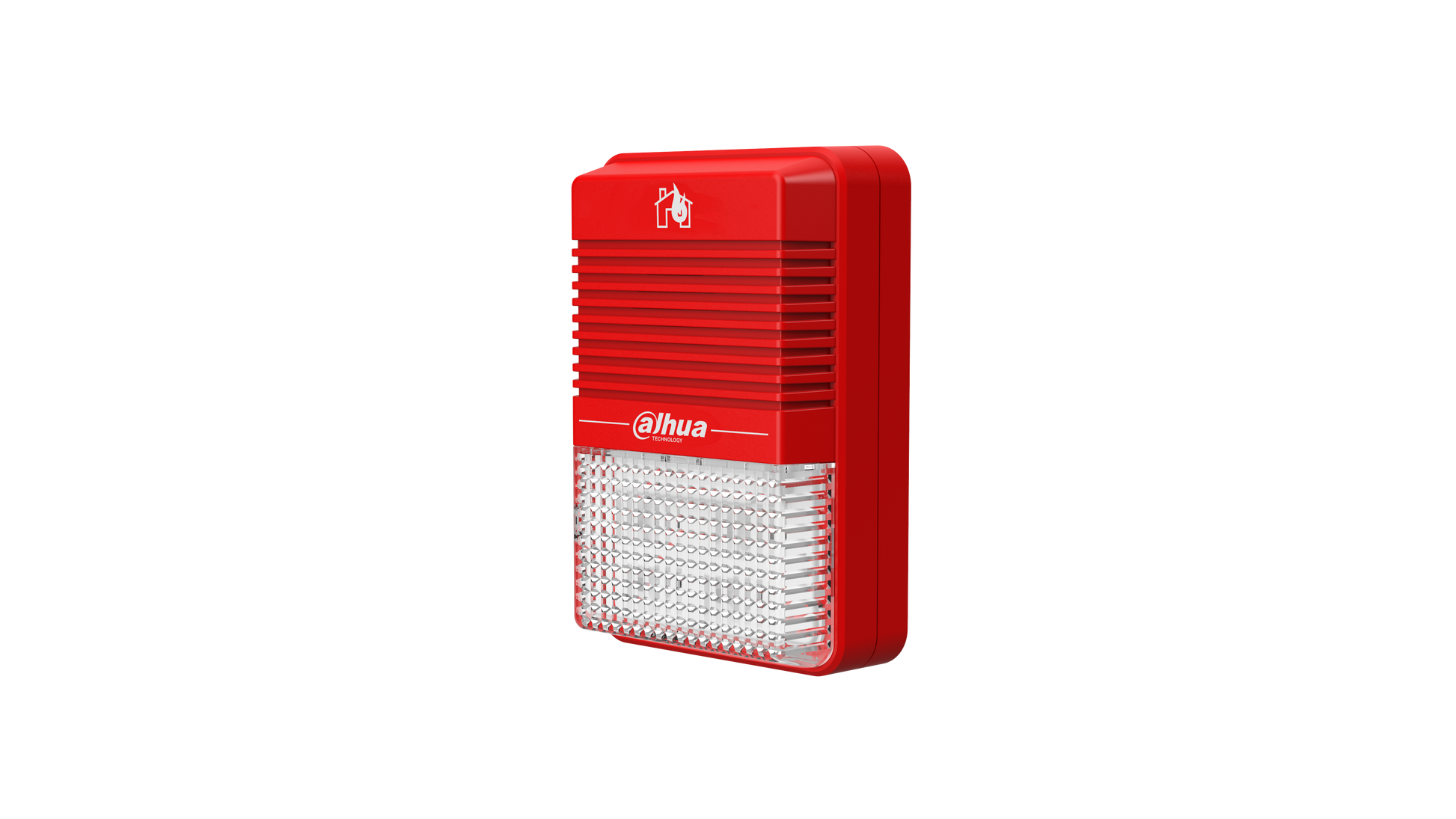

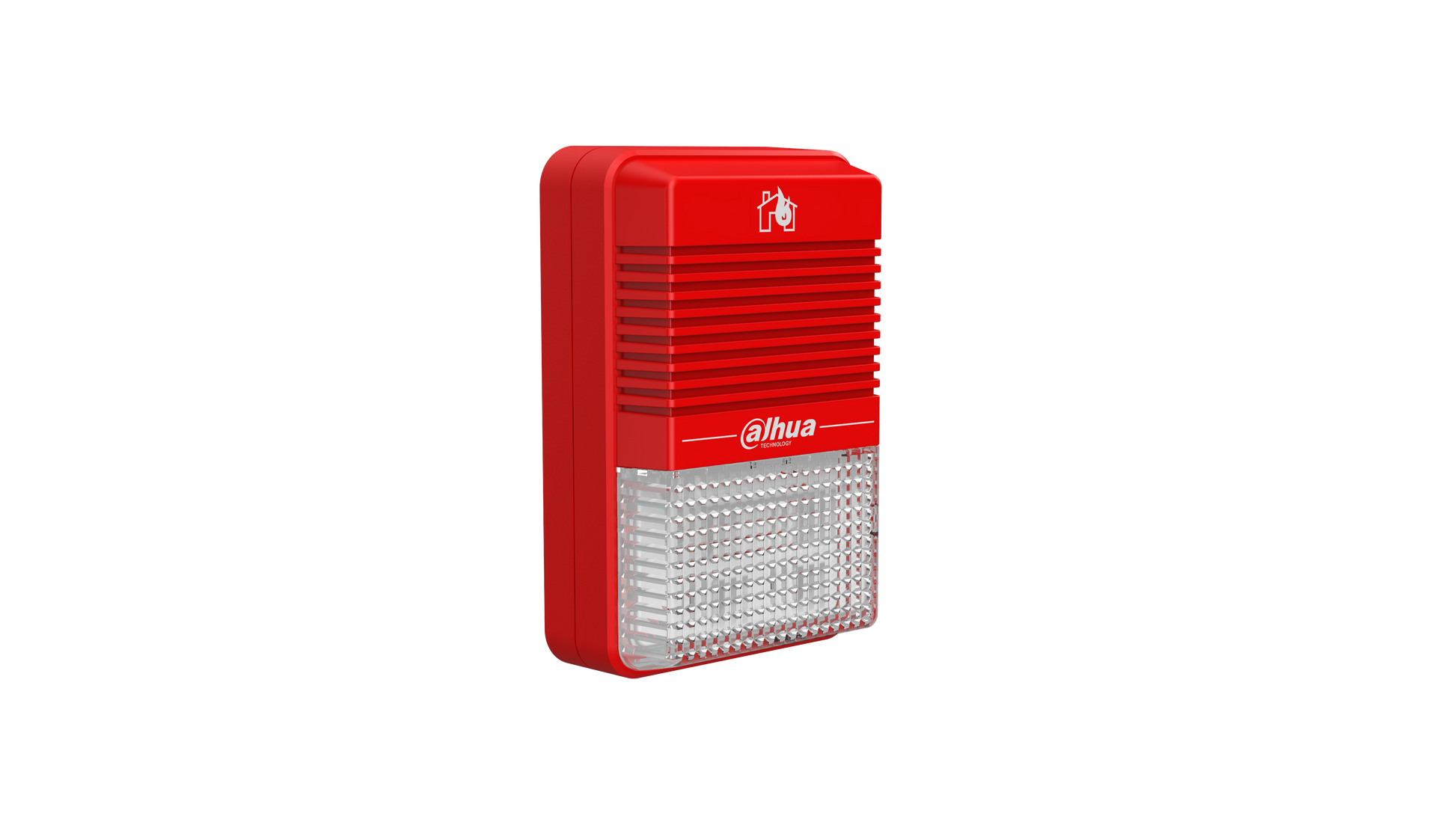

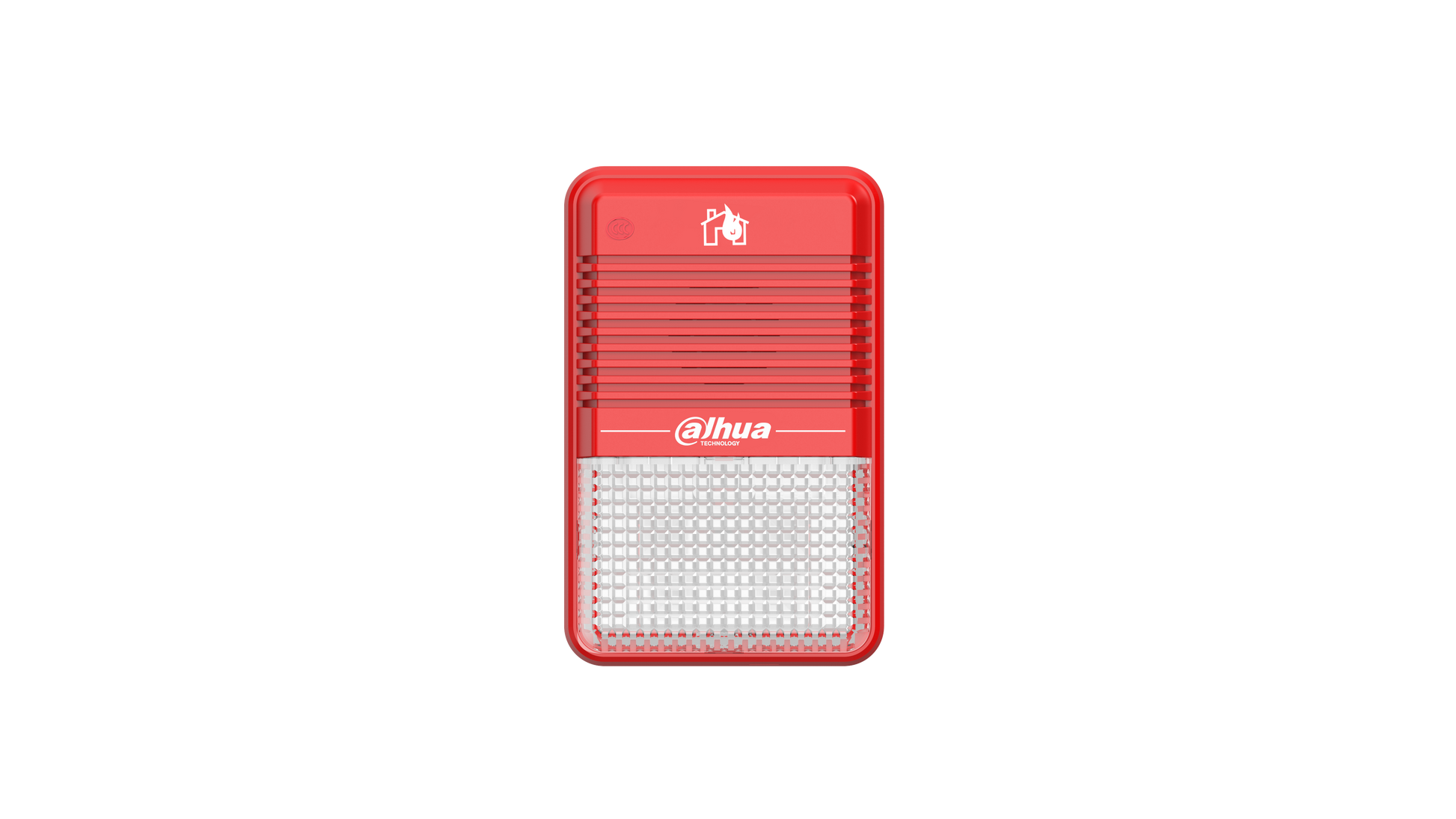

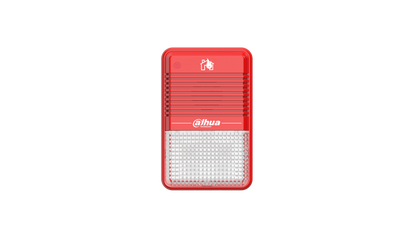

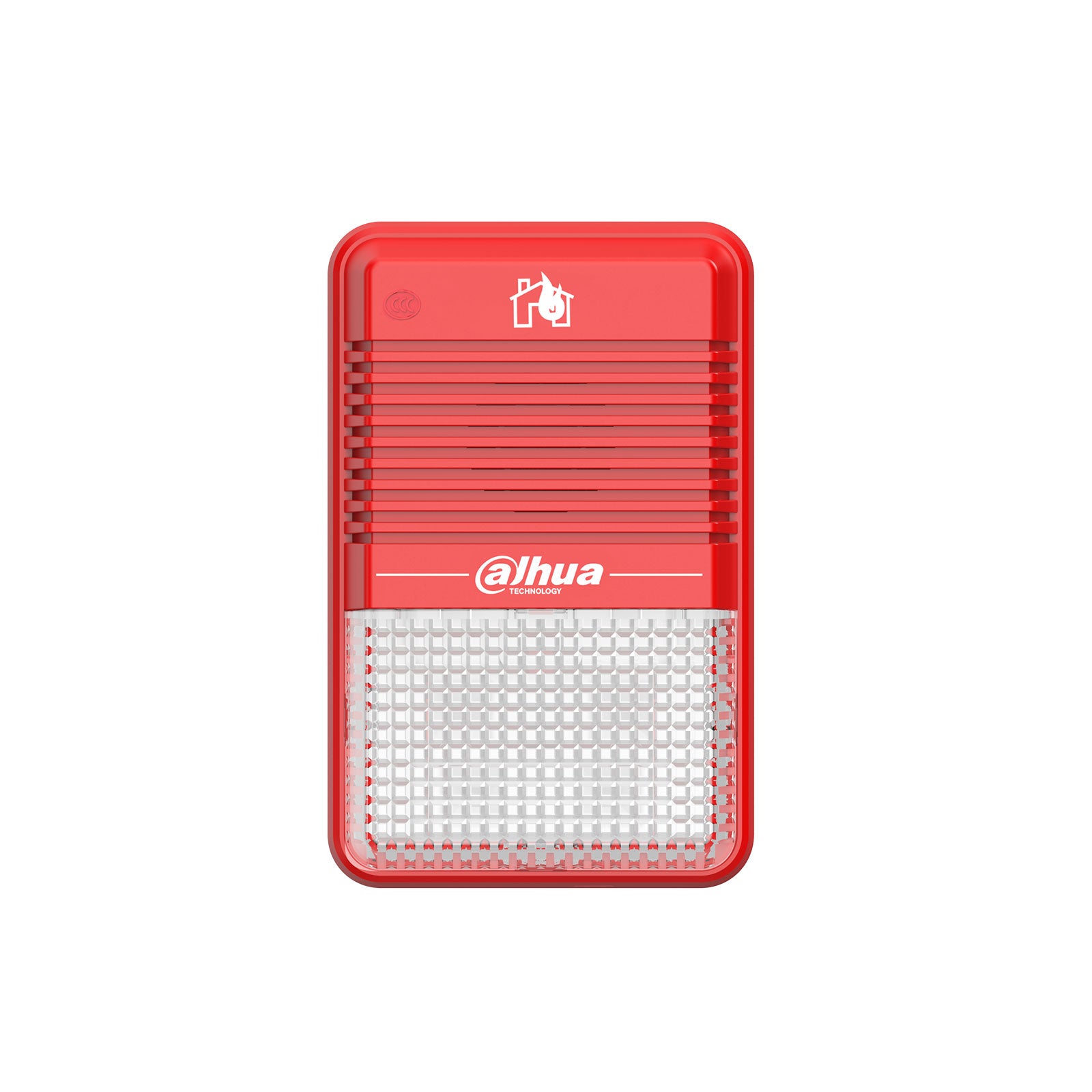

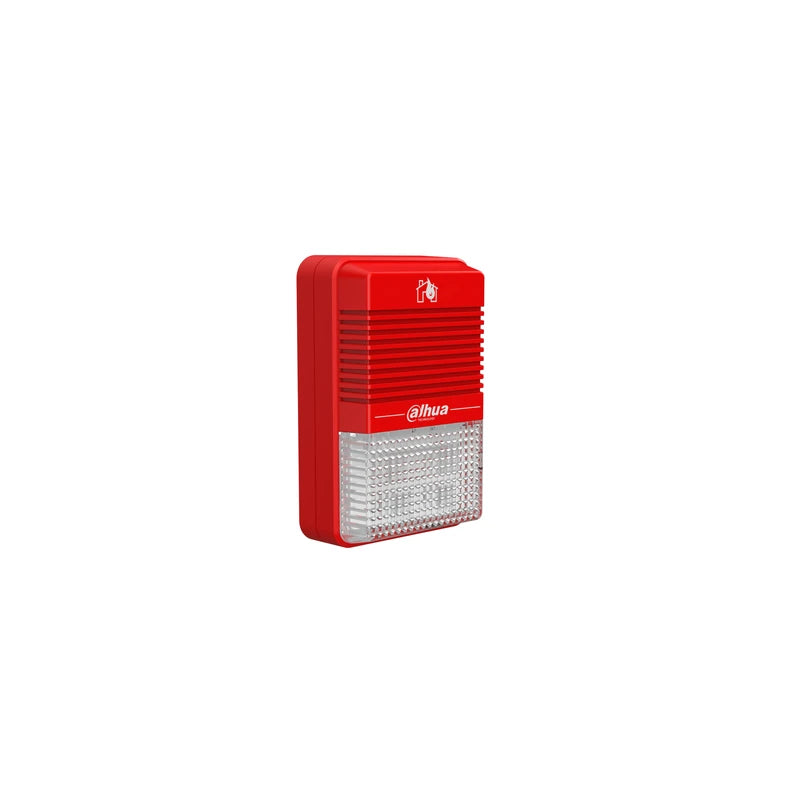

Conventional Sounder Strobe

Conventional Sounder Strobe

£19.80 GBP
£19.80 GBP
Sale Sold out
Shipping calculated at checkout.

This product is designed to meet the latest EN54 requirements. Its two-wire, polarity-free design enables convenient wiring, while ultra-low consumption and strong loading capacity support daily operation. With a sound output over 75 dB(A) at 3 meters and a bright alarm signal, it ensures clear and effective warning in emergencies. With strong anti-electromagnetic interference ability, highly acid-resistant and rust-resistant material and easy-to install  non-loosening screws, this product is a dependable solution for family fire safety applications.

DHI-HY-C151

Product features

· Meets all requirements of latest EN54
· Two-wire, polarity-free realizes convenient wiring
· Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
· Ultra-low consumption and strong loading capacity
· Loud sound output over 75 dB(A) at 3 meters, accompanied with bright alarm signal
· Non-loosening screws on base terminal for easy installation
· Contacts material is highly acid-resistant and rust-resistant
· Designed in accordance with EN54-3 and EN54-23 standards

Functions

· Audible and light alarm
· Non-addressable

Service

2-YEAR WORRY-FREE Warranty

Technical Specifications

Working Voltage: DC9V-DC30V

Rated Power: 132.6mW

Current: Standby current: ≤ 270μA, Alarm current: ≤ 30mA

Alarm Mode: Visual and audible alarm

Alarm Volume: Modified Tone: 4s-5s, Sound Pressure Level: 75dB-115dB (A) at 3 m (9.84 ft)

Operating Temperature: –10°C to +55°C (+14°F to +131°F)

Operating Humidity: ≤ 95% RH (no condensation)

Dimensions (with base): 125 mm × 80 mm × 40 mm (4.92" × 3.15" × 1.57")

Weight (with base): 118 g (0.26 lb)

Installation: Wall Mount

Compliance Standard: EN54-3, EN54-23

In Stock
View full details

Certified EN54 Compliance

Meets the latest EN54 requirements and is designed in accordance with EN54-3 and EN54-23 standards for dependable fire safety performance.

Easy and Efficient Installation

Two-wire, polarity-free wiring and non-loosening base terminal screws make installation faster, easier, and more convenient.

Stable and Reliable Operation

EMC-tested for strong anti-electromagnetic interference capability, the product delivers high stability and reliable performance in complex environments.

Clear Alarm with Durable Design

With sound output over 75 dB(A) at 3 meters, bright alarm indication, ultra-low power consumption, and acid- and rust-resistant materials, it ensures effective and long-lasting protection.
