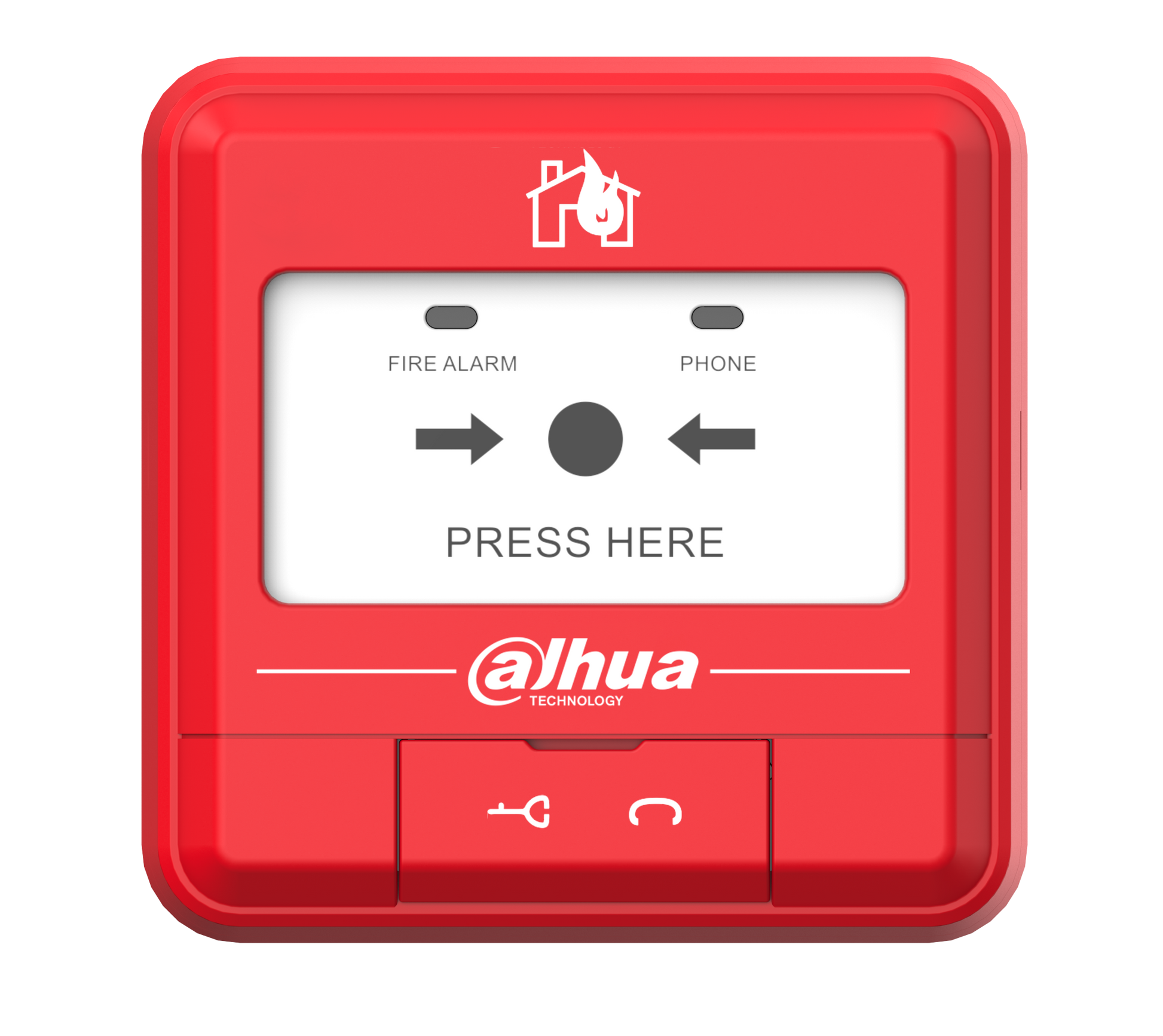

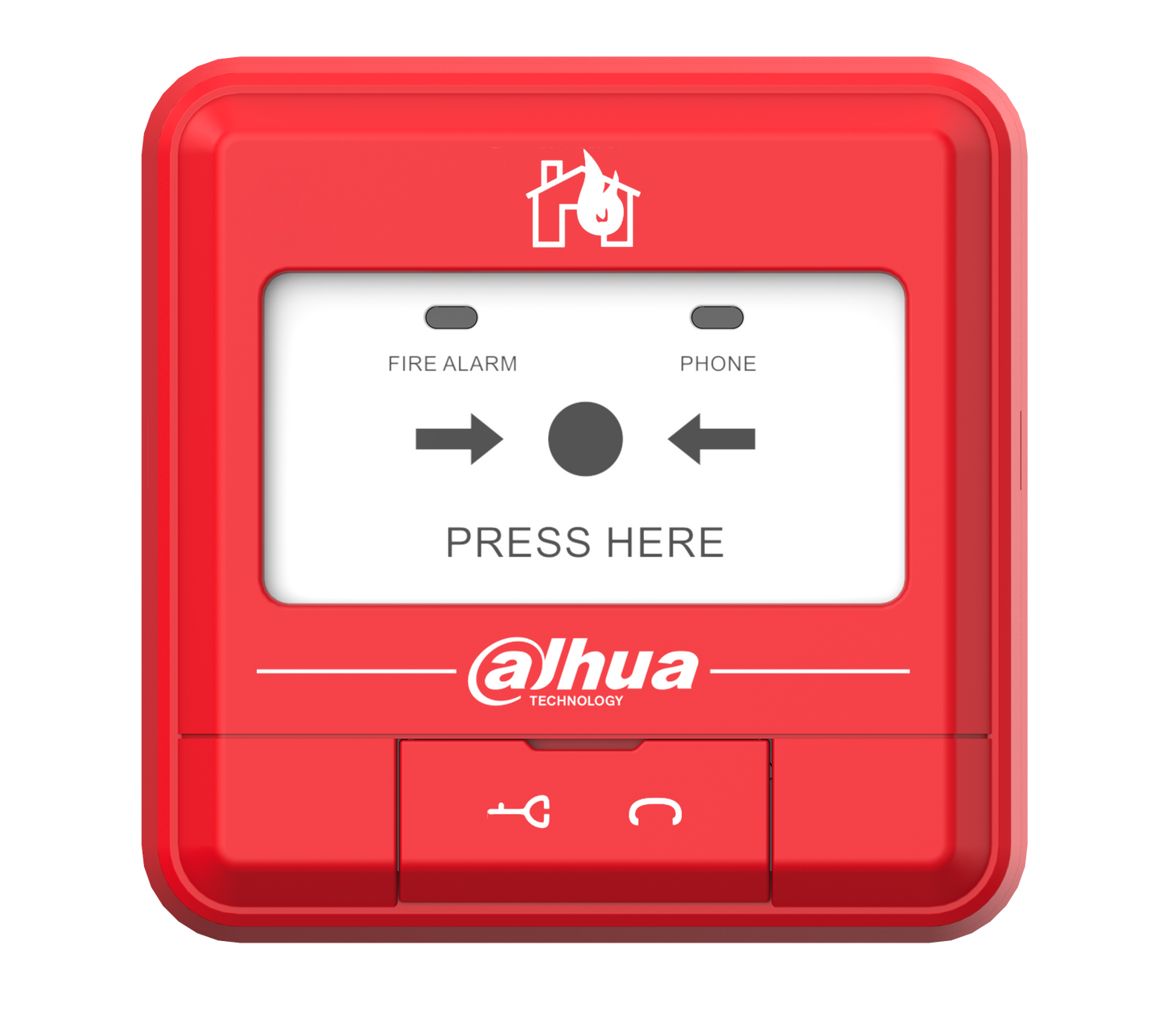

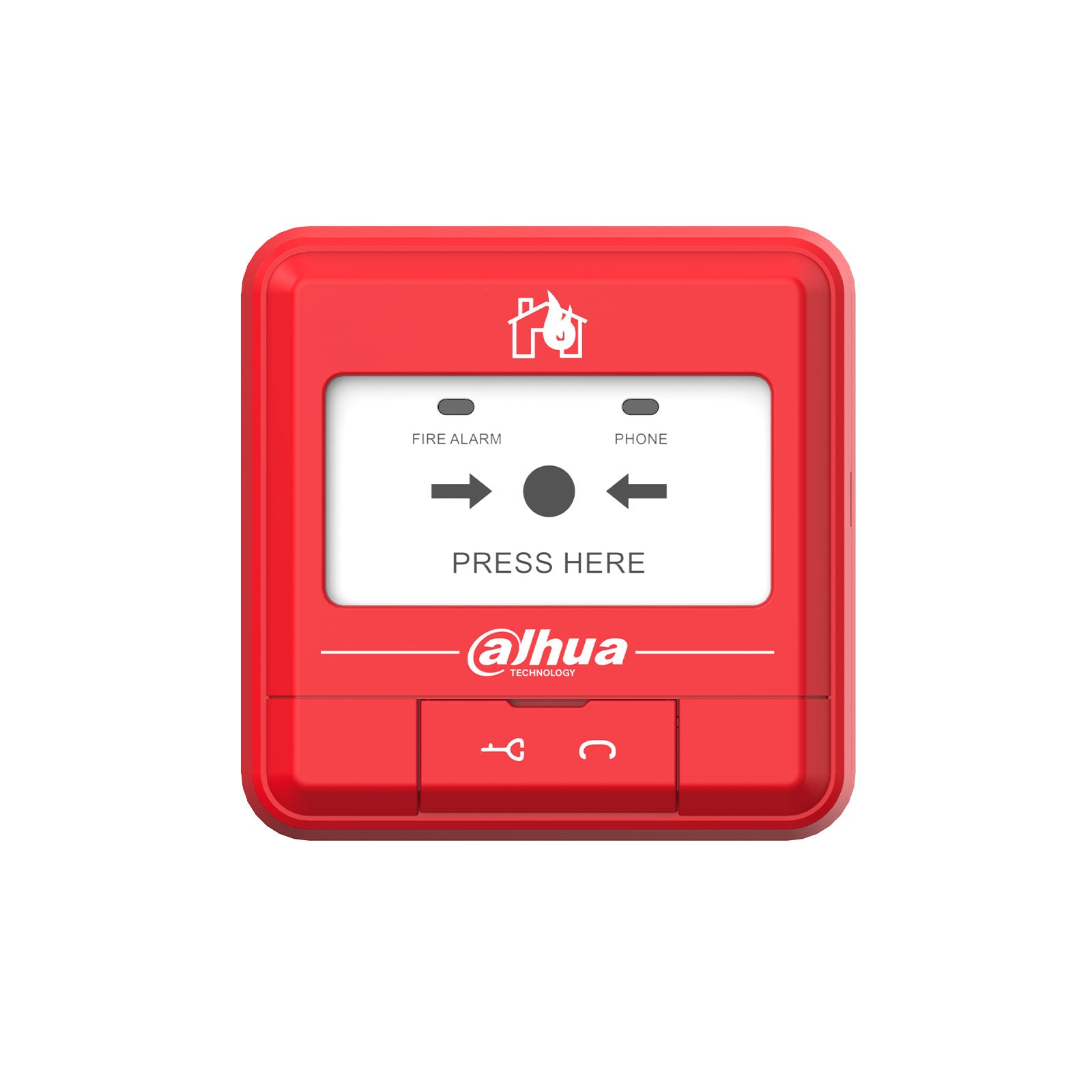

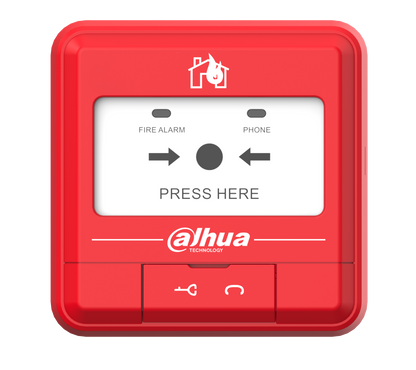

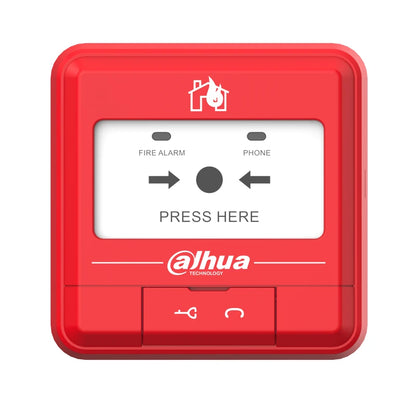

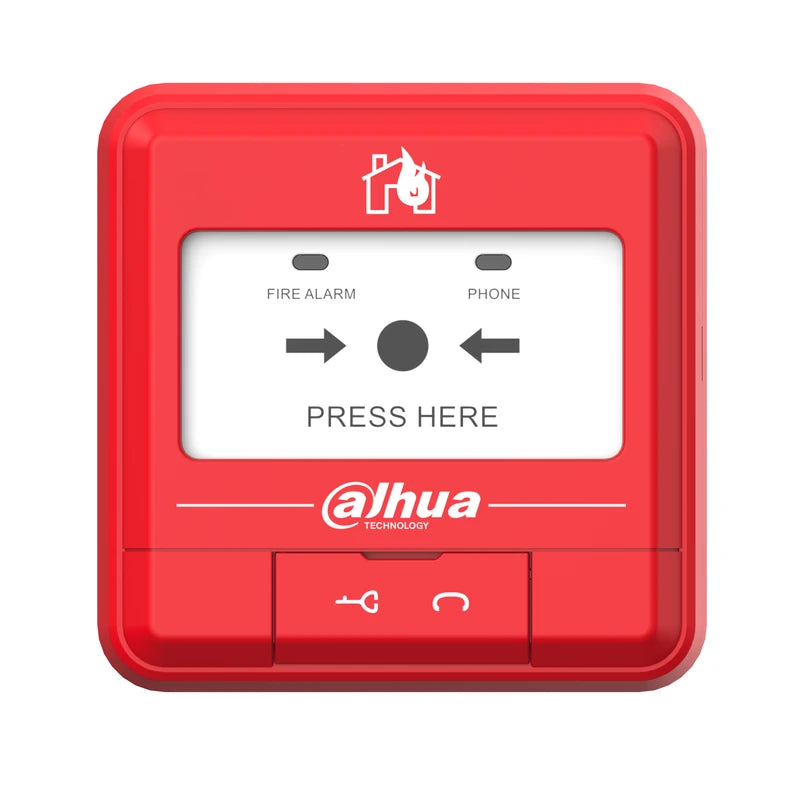

Conventional Manual Call Point with Cover

Conventional Manual Call Point with Cover

£10.20 GBP
£10.20 GBP
Sale Sold out
Shipping calculated at checkout.

This product is designed to meet the latest EN54 requirements, with a two-wire, polarity-free design, it realizes convenient wiring. Having passed EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability. It also features manual contact control and non-loosening screws on base terminal for easy installation, and highly acid-resistant and rust-resistant Contacts material for long-term durability. A transparent cover is included to prevent accidental touch.

DHI-HY-C0321

Product features

  • Meets all requirements of latest EN54
  • Two-wire, polarity-free realizes convenient wiring
  • Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
  • Adopts manual contact, easy to manually control
  • Non-loosening screws on base terminal for easy installation
  • Contacts material is highly acid-resistant and rust-resistant
  • Prevent accidental touch: Features a transparent cover to prevent fire alarm caused by accidental touch

Functions

· Manual control

· Non-addressable

Service

2-YEAR WORRY-FREE Warranty

Technical Specification

Working Voltage: DC16V–DC28V
Standby Current: ≤ 300μA
Alarm Current: ≤ 400μA
Alarm Mode: Visual alarm
Operating Temperature: –10°C to +55°C (+14°F to +131°F)
Operating Humidity: ≤ 95% RH (no condensation)
Dimensions (with base): 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")
Weight (with base): 136 g (0.30 lb)
Installation: Wall Mount
Standard: EN54-11:2001

In Stock
View full details

EN54-Compliant Performance

Meets the latest EN54 requirements, ensuring dependable fire alarm performance for a wide range of applications.

Convenient Wiring and Installation

The two-wire, polarity-free design and non-loosening terminal screws simplify wiring and make installation faster and more convenient.

Stable, Durable, and EMC-Tested

EMC-tested design provides strong resistance to electromagnetic interference, high stability, and durable acid- and rust-resistant contacts.

Safe Manual Control

Featuring a manual contact for easy operation and a transparent protective cover to help prevent accidental activation, it provides safer and more user-friendly control.

DOWNLOAD

Datasheet

DHI-HY-C0321 Data Sheet
