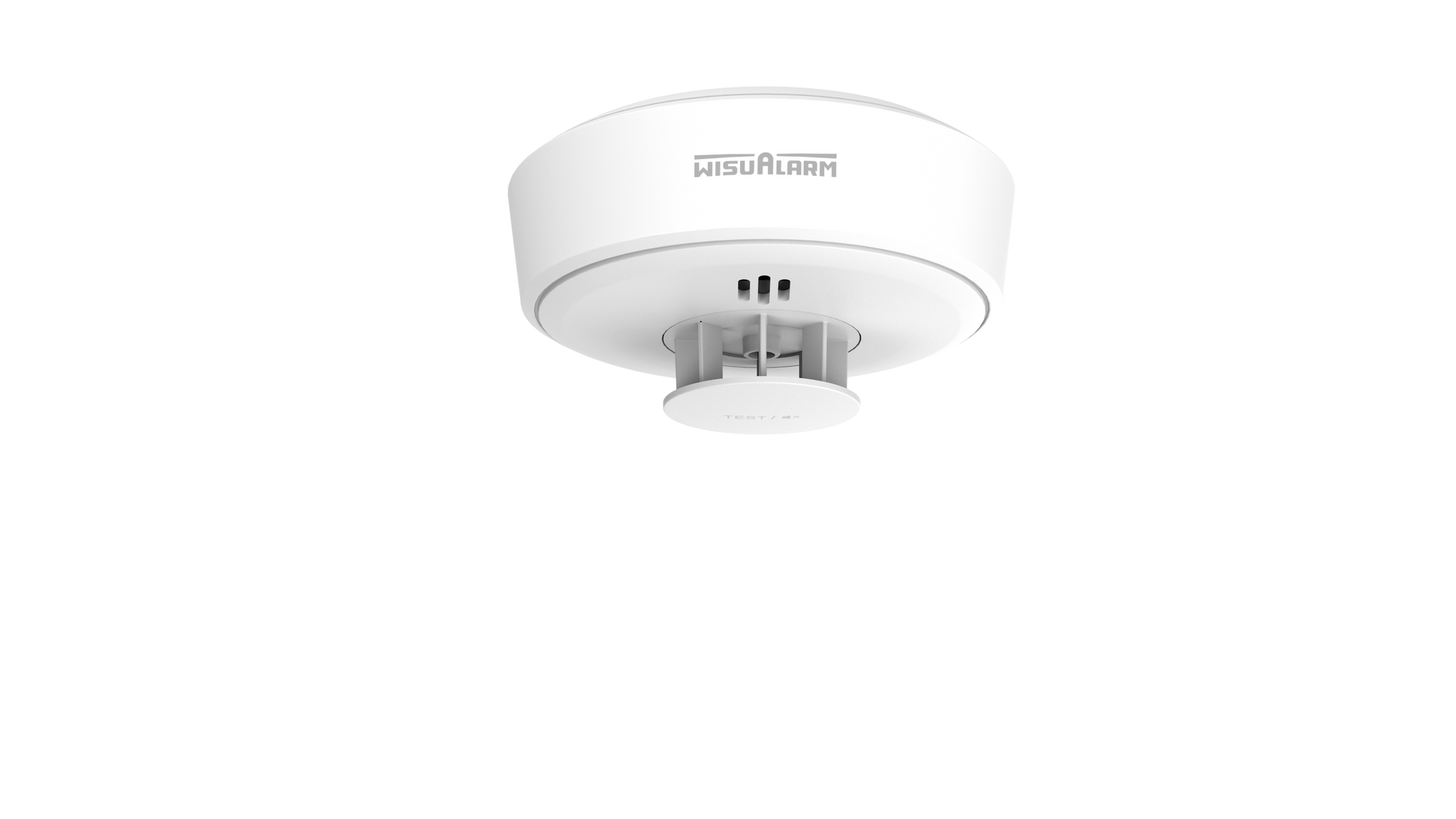

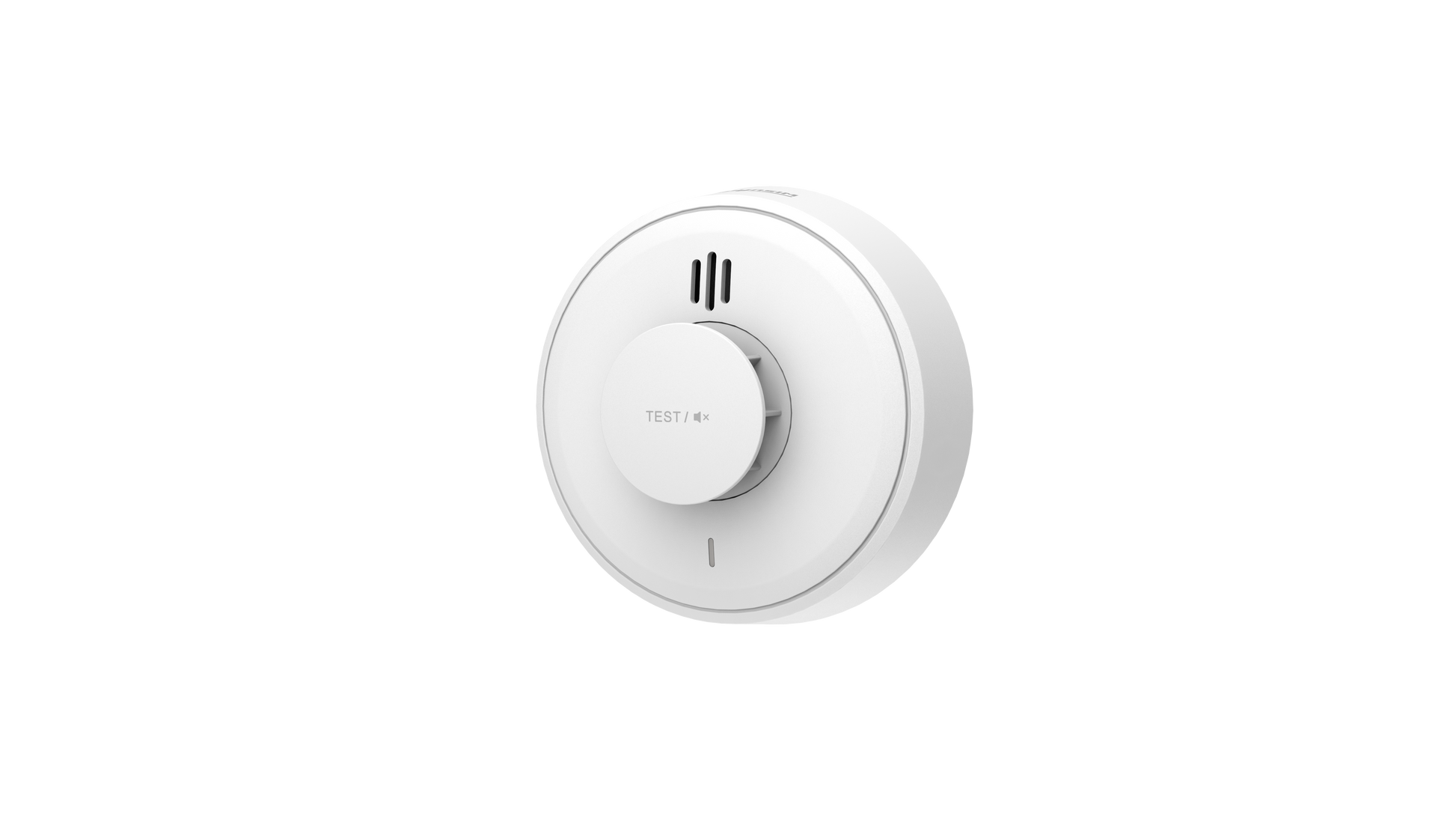

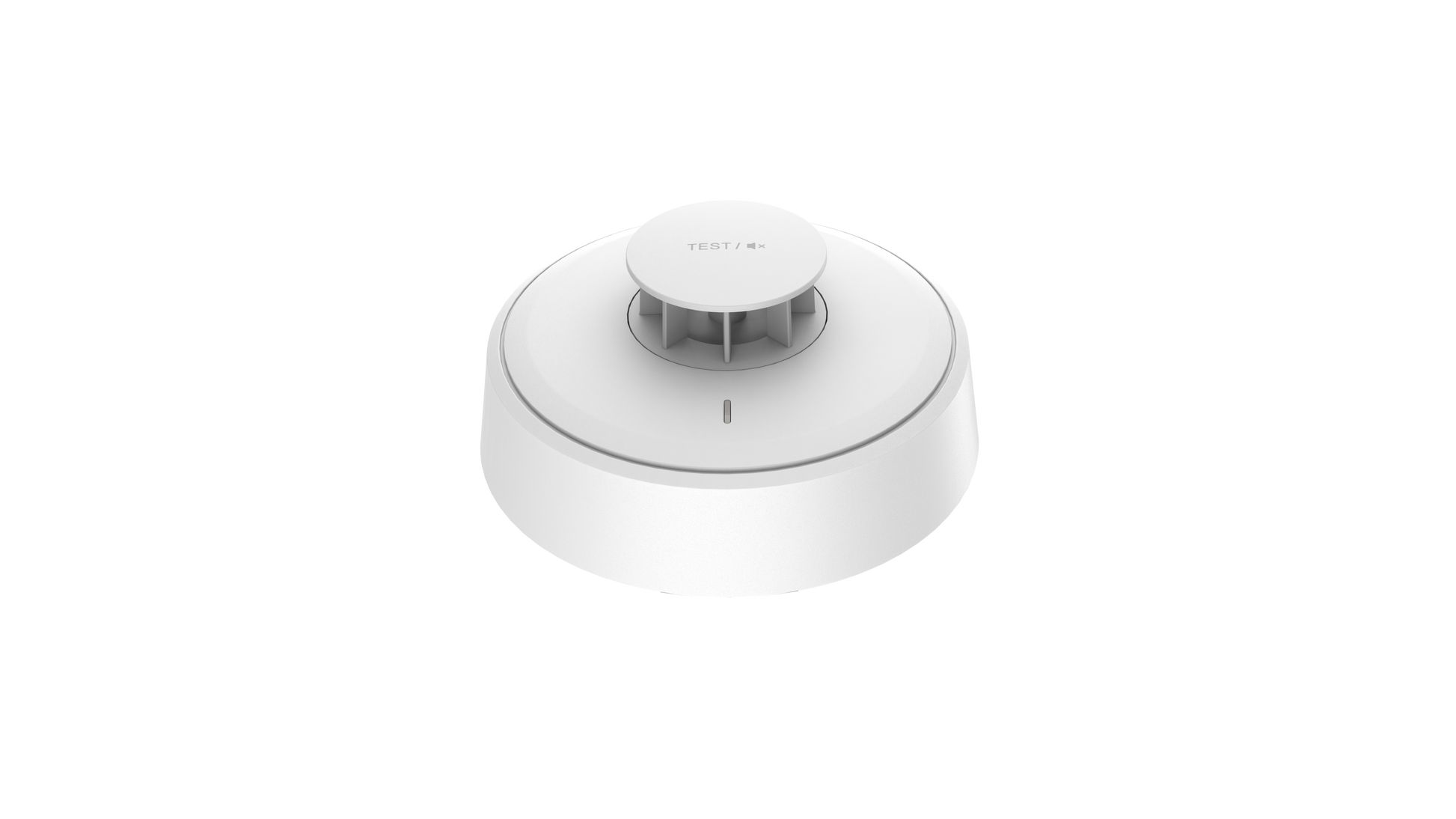

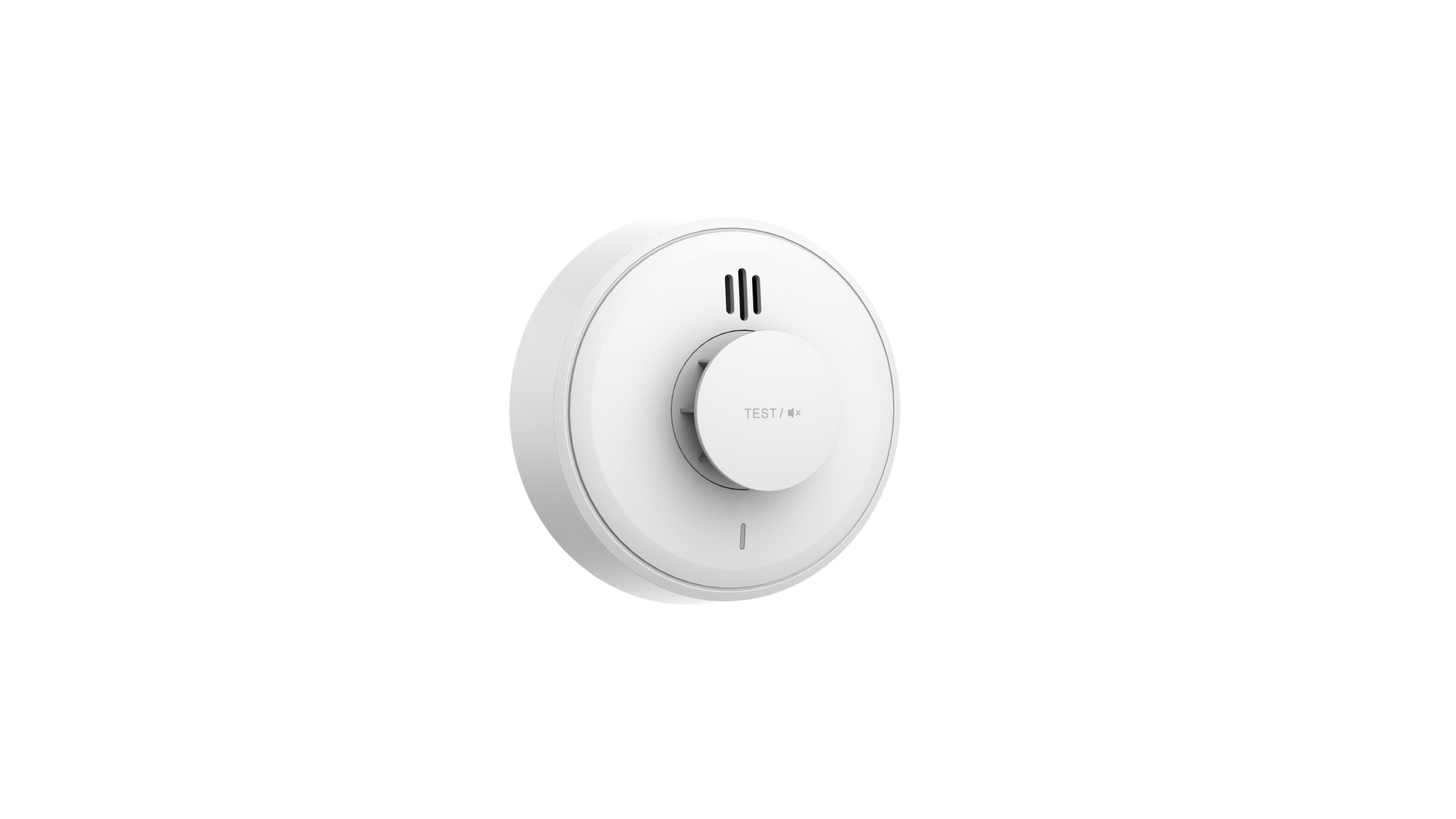

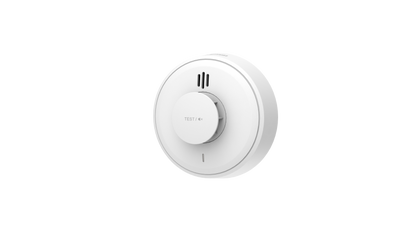

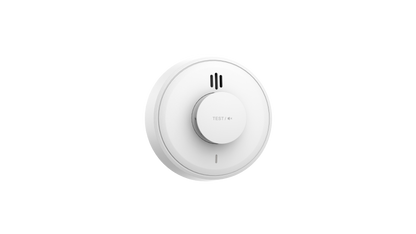

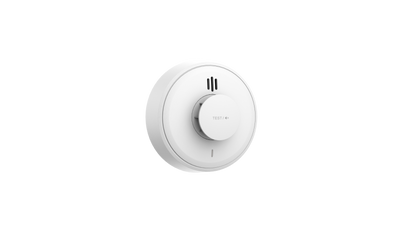

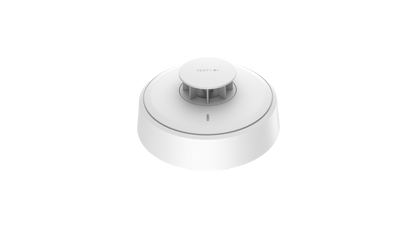

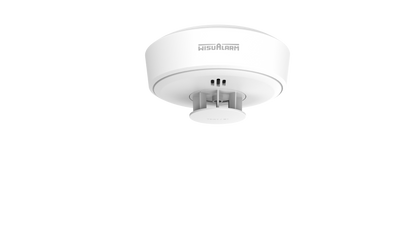

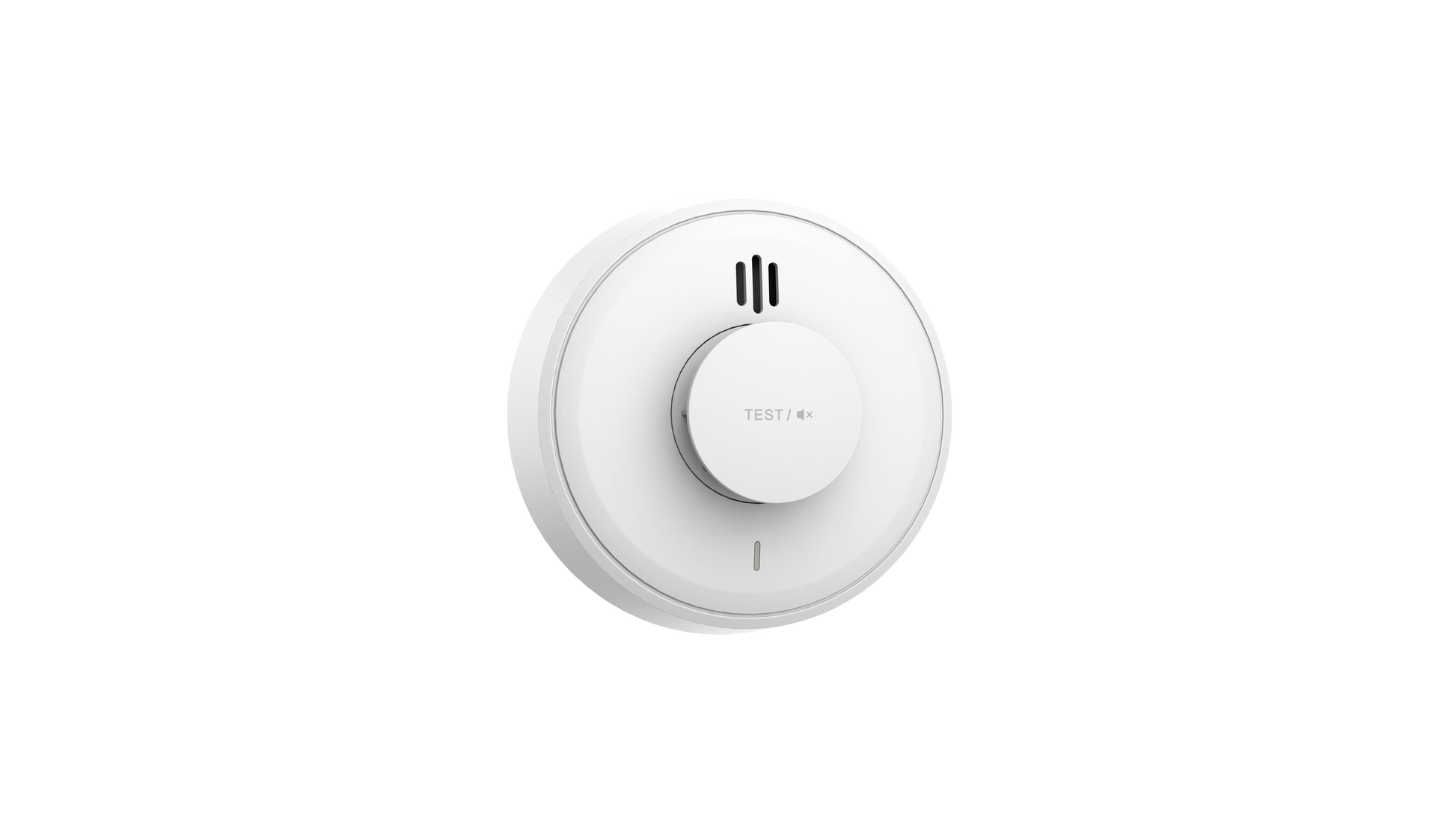

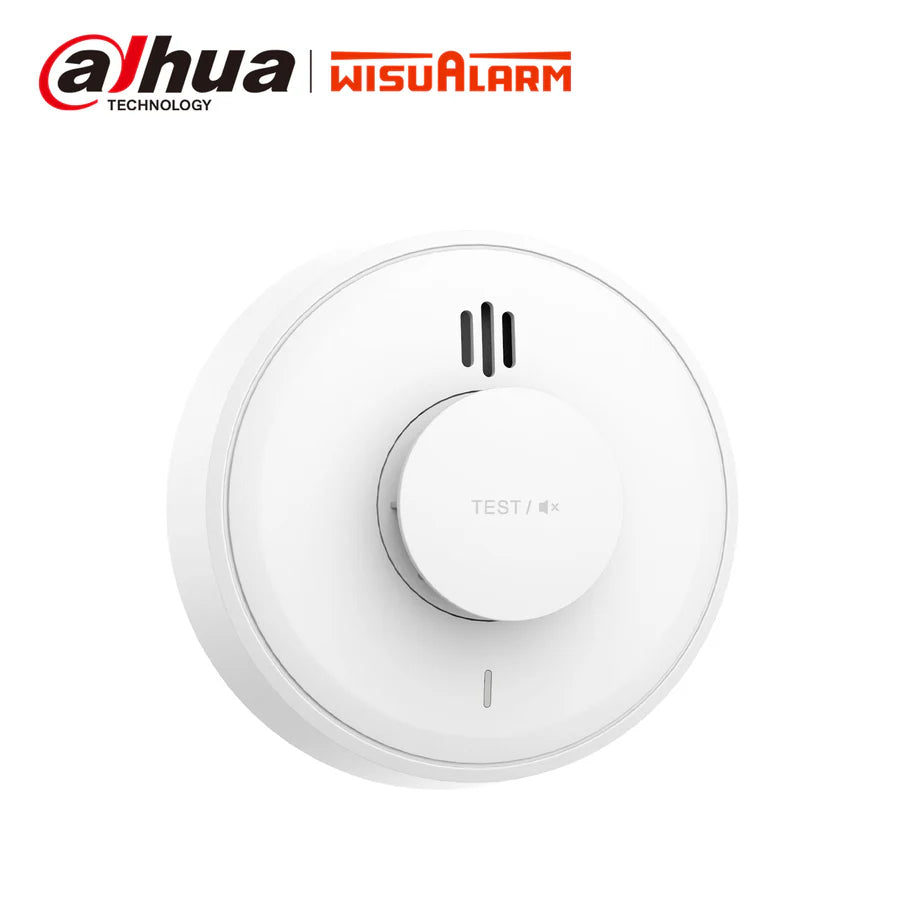

Standalone Heat Alarm

Standalone Heat Alarm

£19.20 GBP
£19.20 GBP
Sale Sold out
Shipping calculated at checkout.

Featuring a central push button for testing and silencing, this device ensures convenient operation and maintenance. With a powerful  sound output over 85 dB(A) at 3 meters, it provides clear and immediate alerts. Built with  low quiescent current consumption and SMD circuit board design, it delivers stable and energy-efficient performance. Its class A1 fire detection (54°C to 65°C) within typical application temperature ranges, while the low battery warning signal enhances operational safety.

DHI-HY-HT10A

Product features

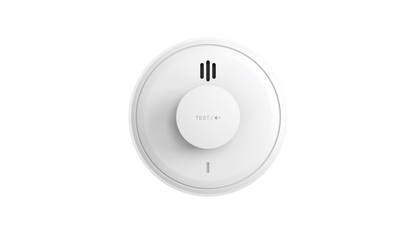

· Test and silence features in the central push button
· Loud sound output over 85 dB(A) at 3 meters
· Low quiescent current consumption

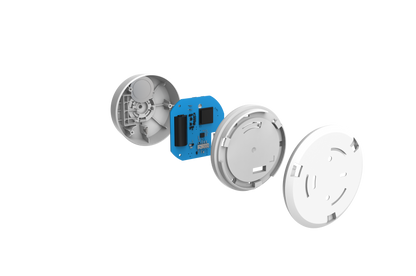

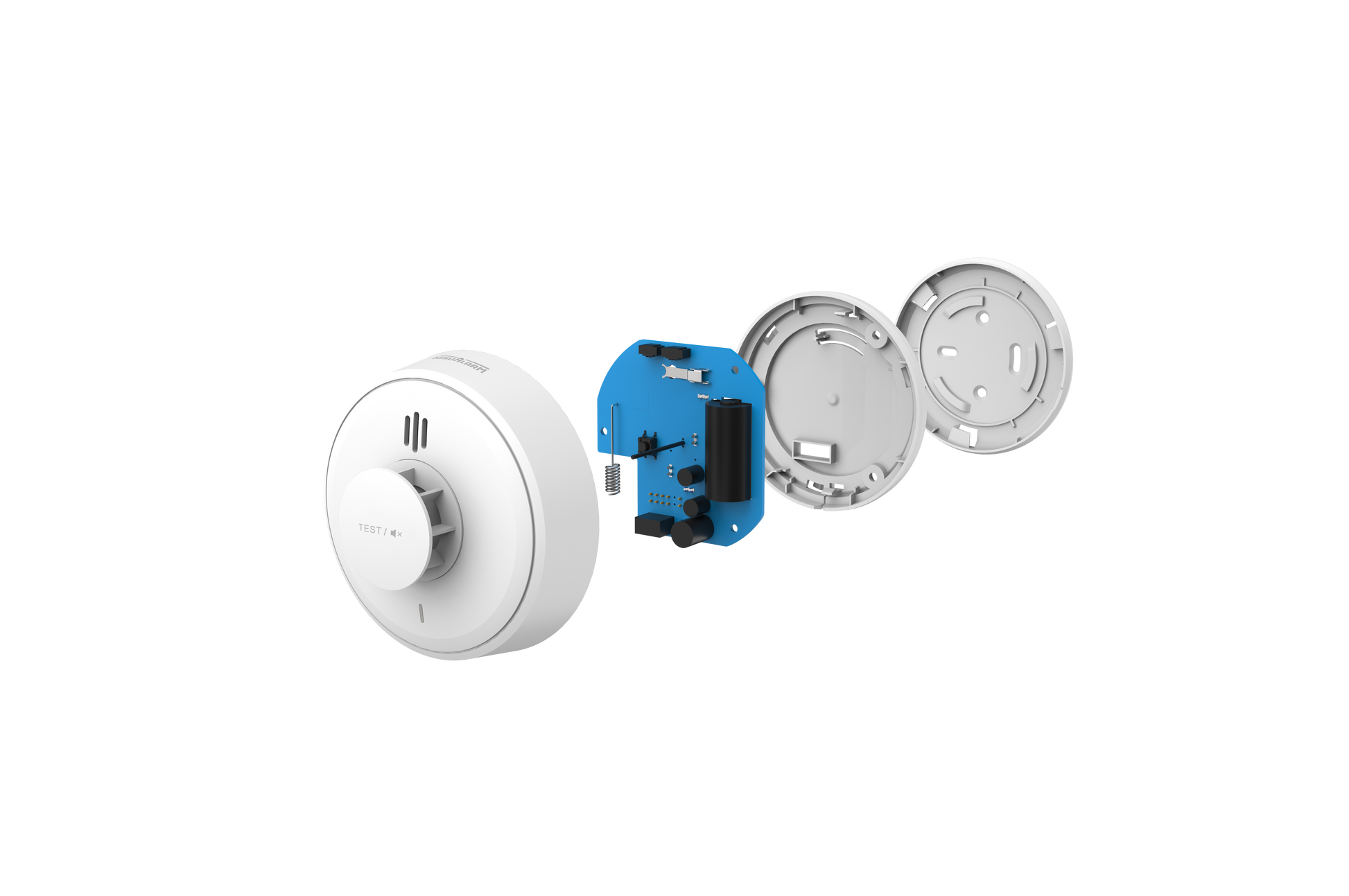

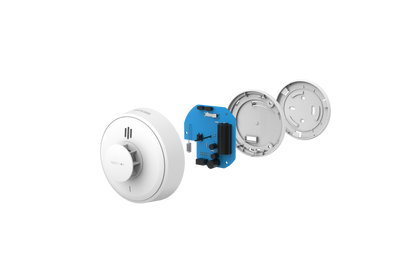

· Surface-mount device (SMD) circuit board design
· Low battery warning signal
· Class A1 fire detection (54°C to 65°C)
· Response times from typical application temperature

Functions

• Test & Silence: Push button operation
• 85 dB(A): Loud alarm at 3m
• Low Power: Minimal quiescent current
• SMD Board: Compact circuit design
• Low Battery Warning: Built-in alert
• Class A1 Heat Detection: 54°C–65°C range
• Fast Response: From typical application temp

Service

5-YEAR WORRY-FREE Warranty

Technical Specifications

  • Alarm Volume: 85 dB(A) at 3m
  • Sensor Type: Thermistor
  • Power Source: 3V CR123A lithium battery (non-replaceable)
  • Battery Life: 10 years
  • Operating Temperature: -10°C to +55°C
  • Certifications: CE, UKCA
  • Compliance: BS 5446-2:2003

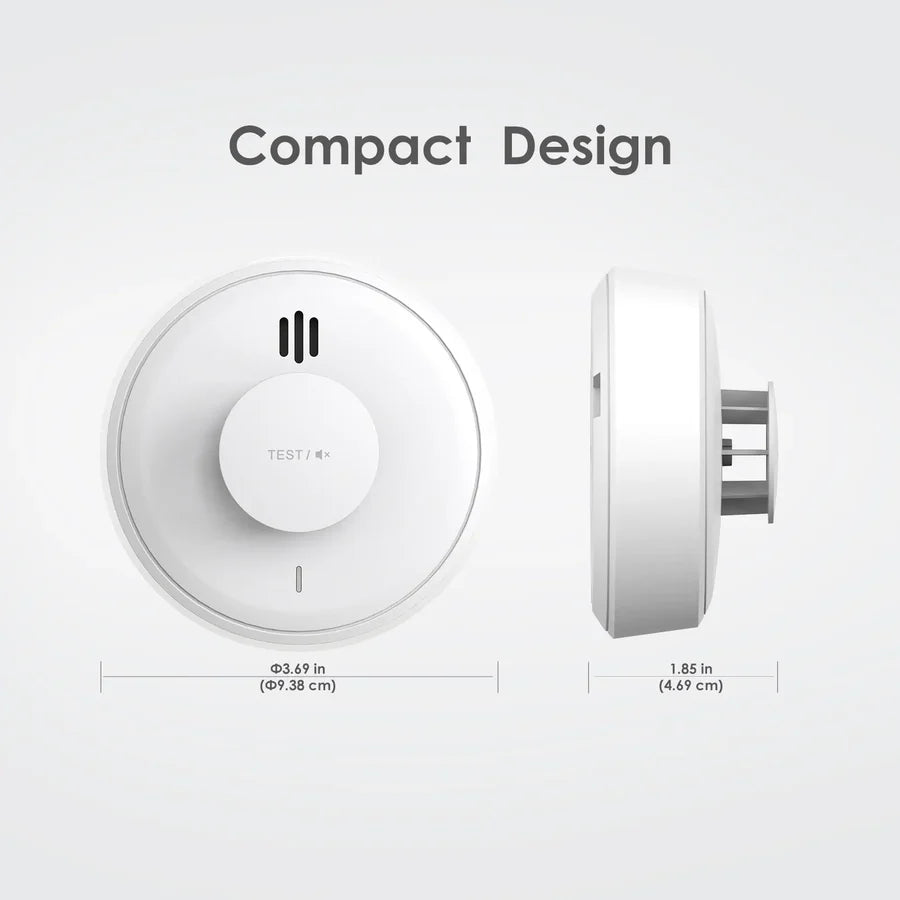

  • Dimensions: φ93.8mm × H46.9mm
  • Weight: 115 g

Out of stock
View full details

Accurate Class A1 Detection

This product is able to detect temperature between 54°C and 65°C.

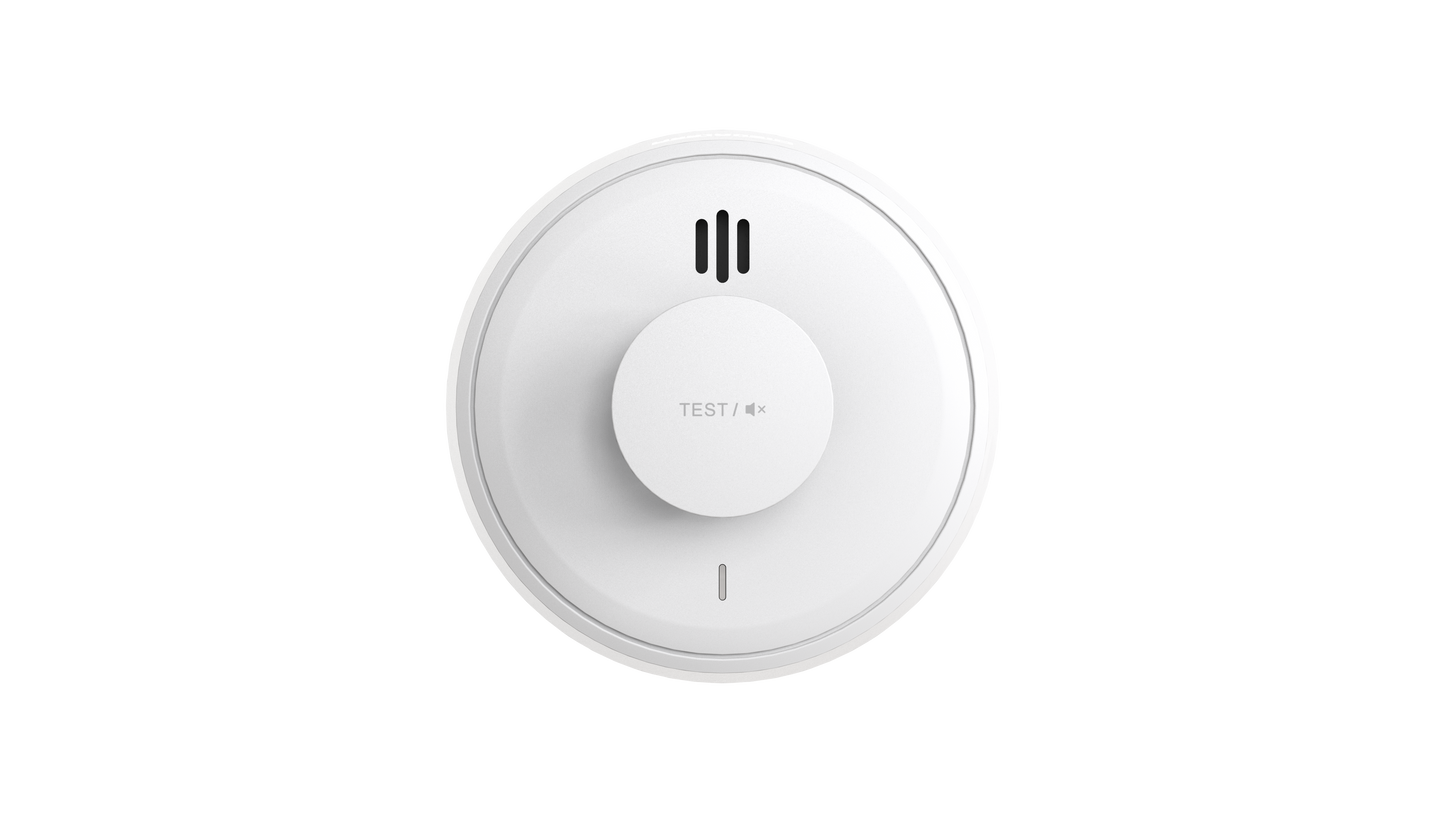

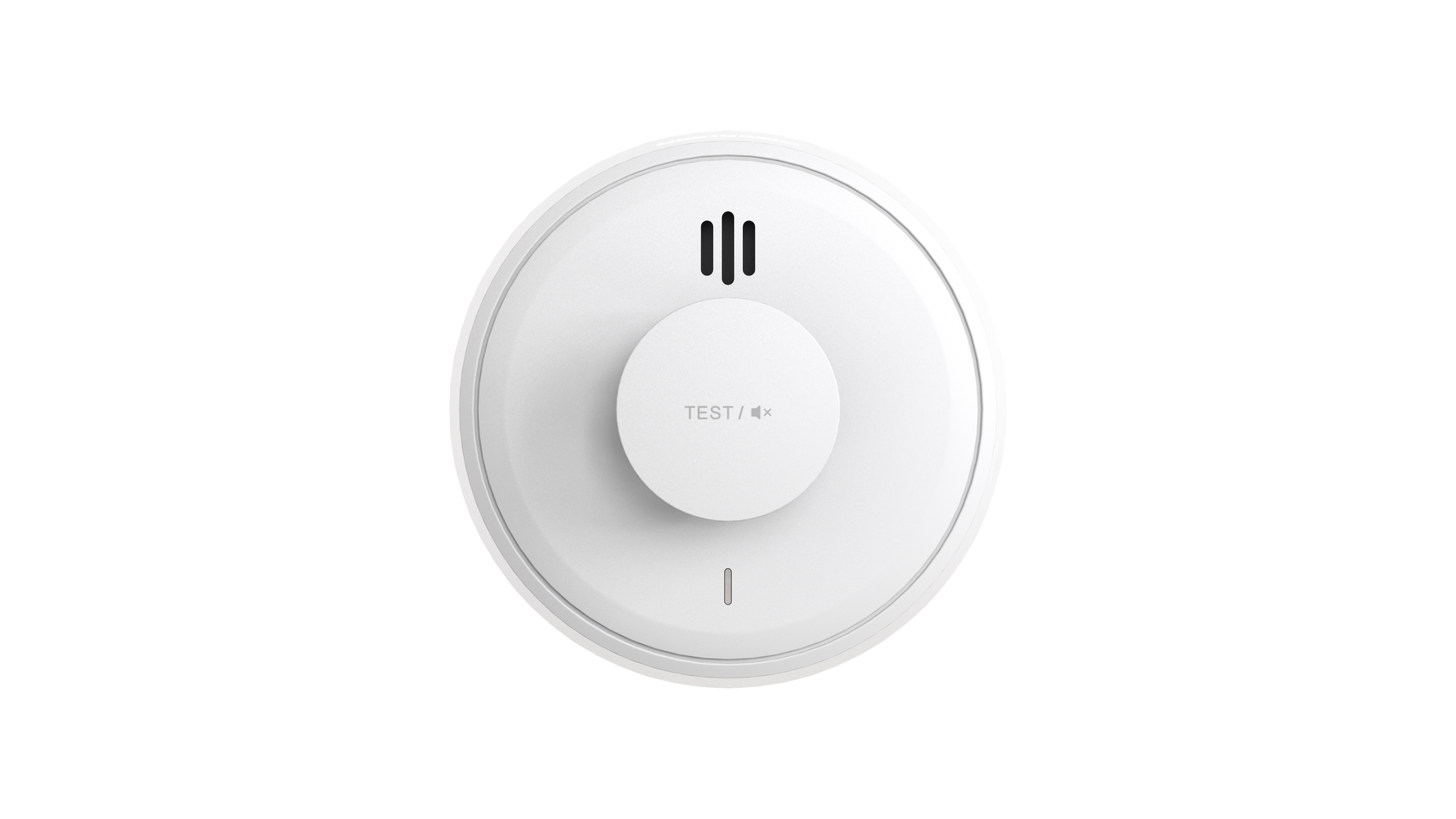

User-Friendly Test & Silence Function

This device is equipped with 85db sound output and low quiescent current consumption for stable and reliable performance.

Powerful Alarm & Energy Efficiency

Ultra-low monitoring current and operating current reduces energy consumption and extend product longevity.

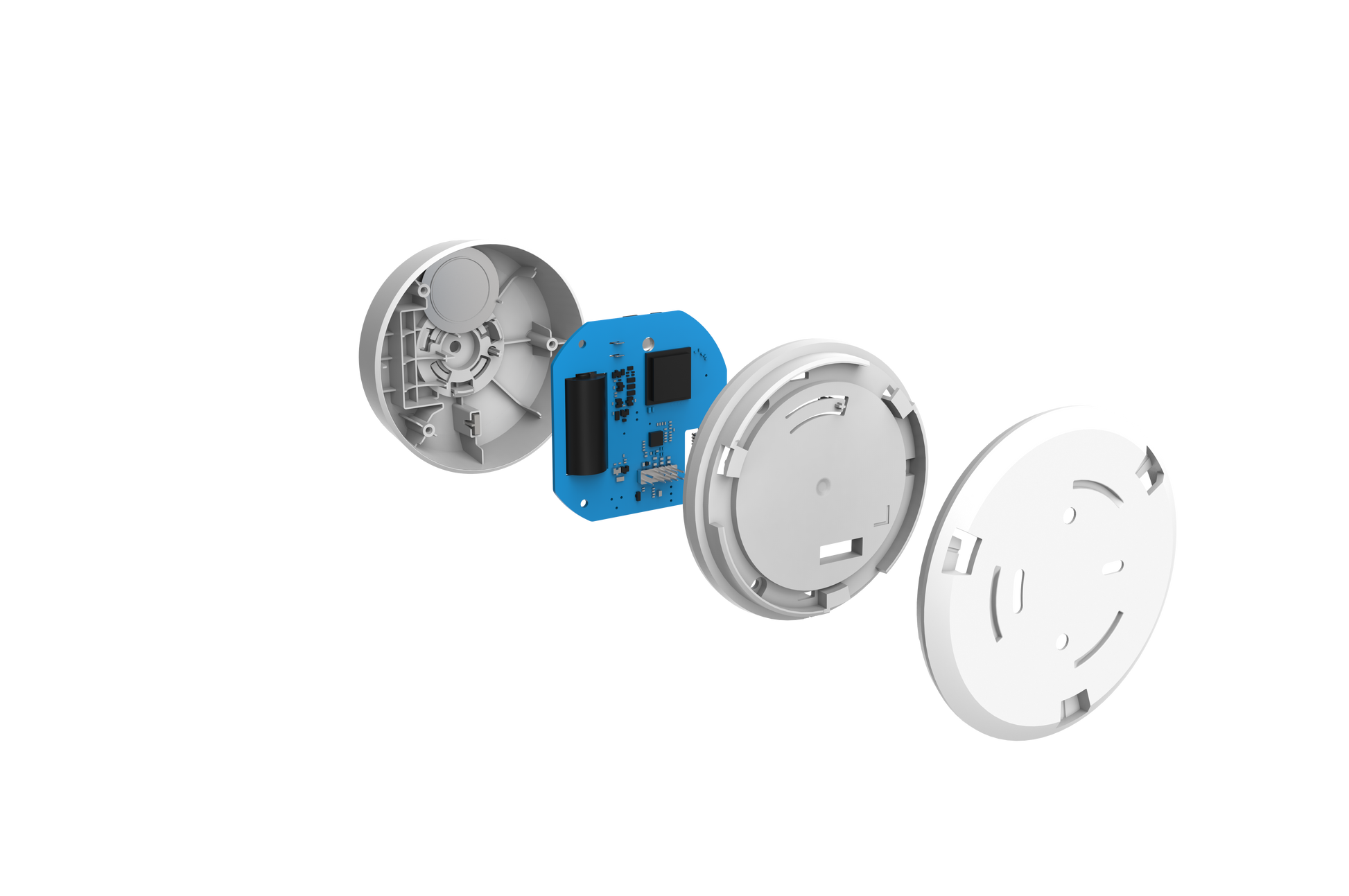

Durable Design with Safety Alerts

Built with SMD circuit board design, the device offers continuous protection with low battery warning signal.
