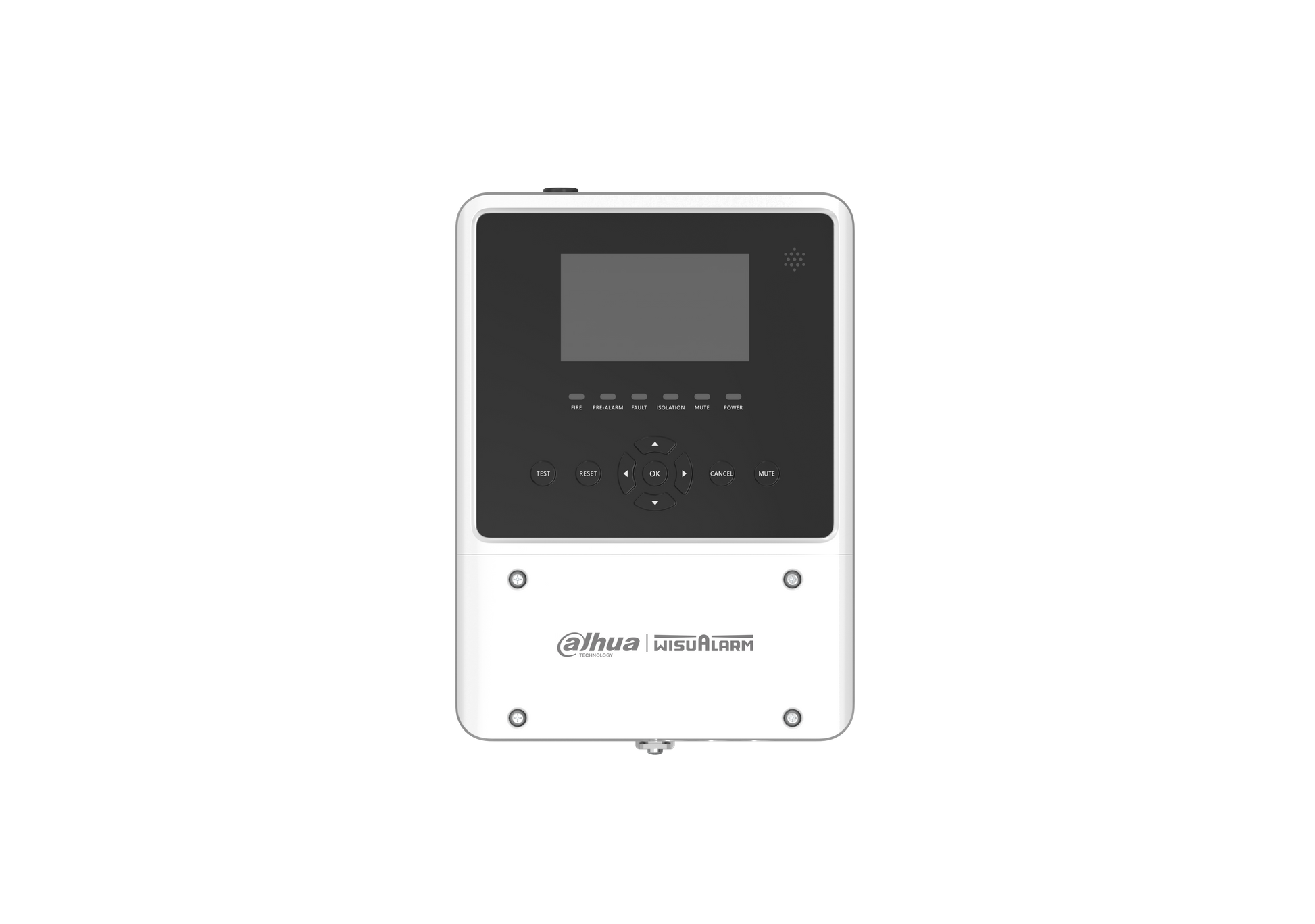

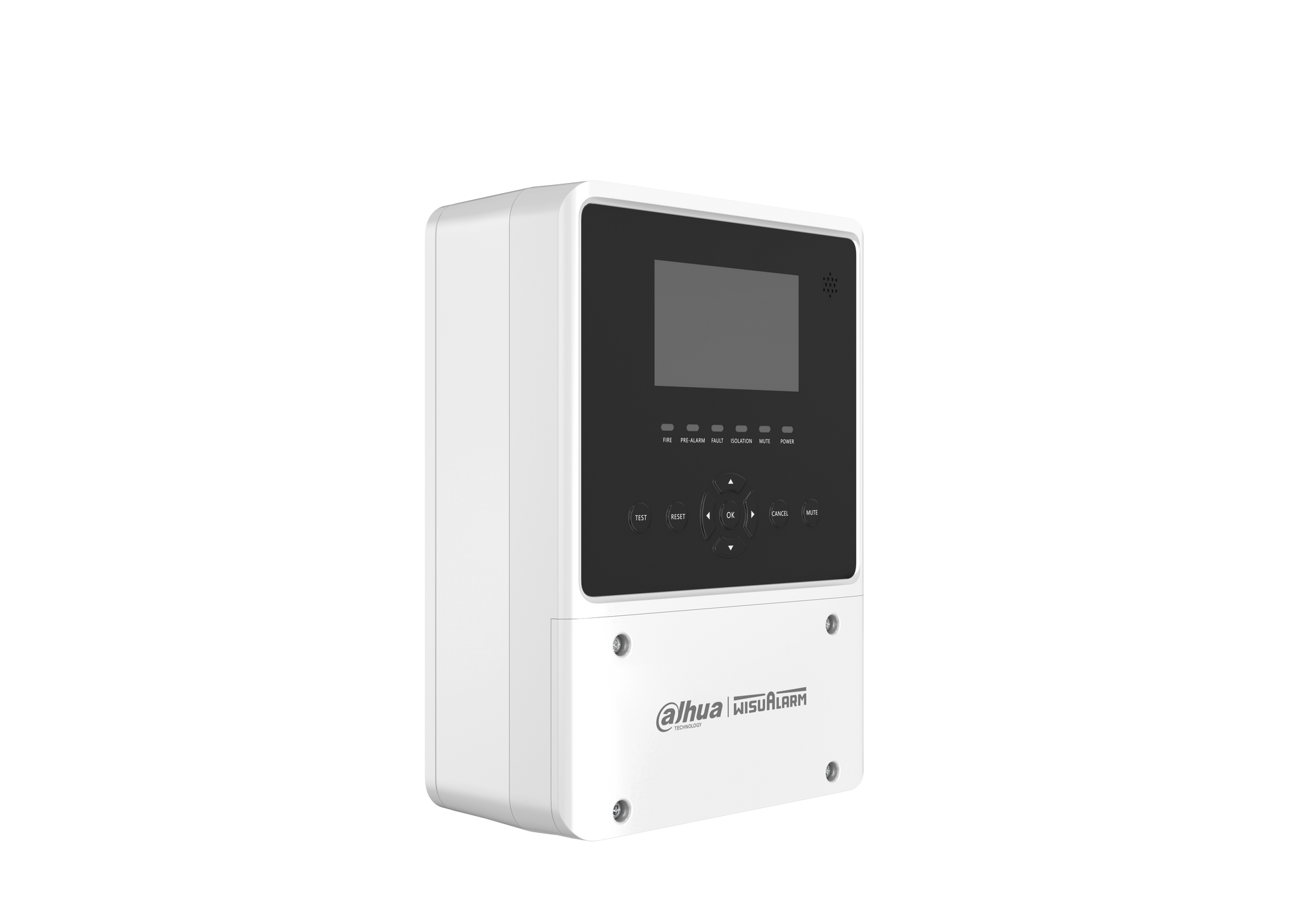

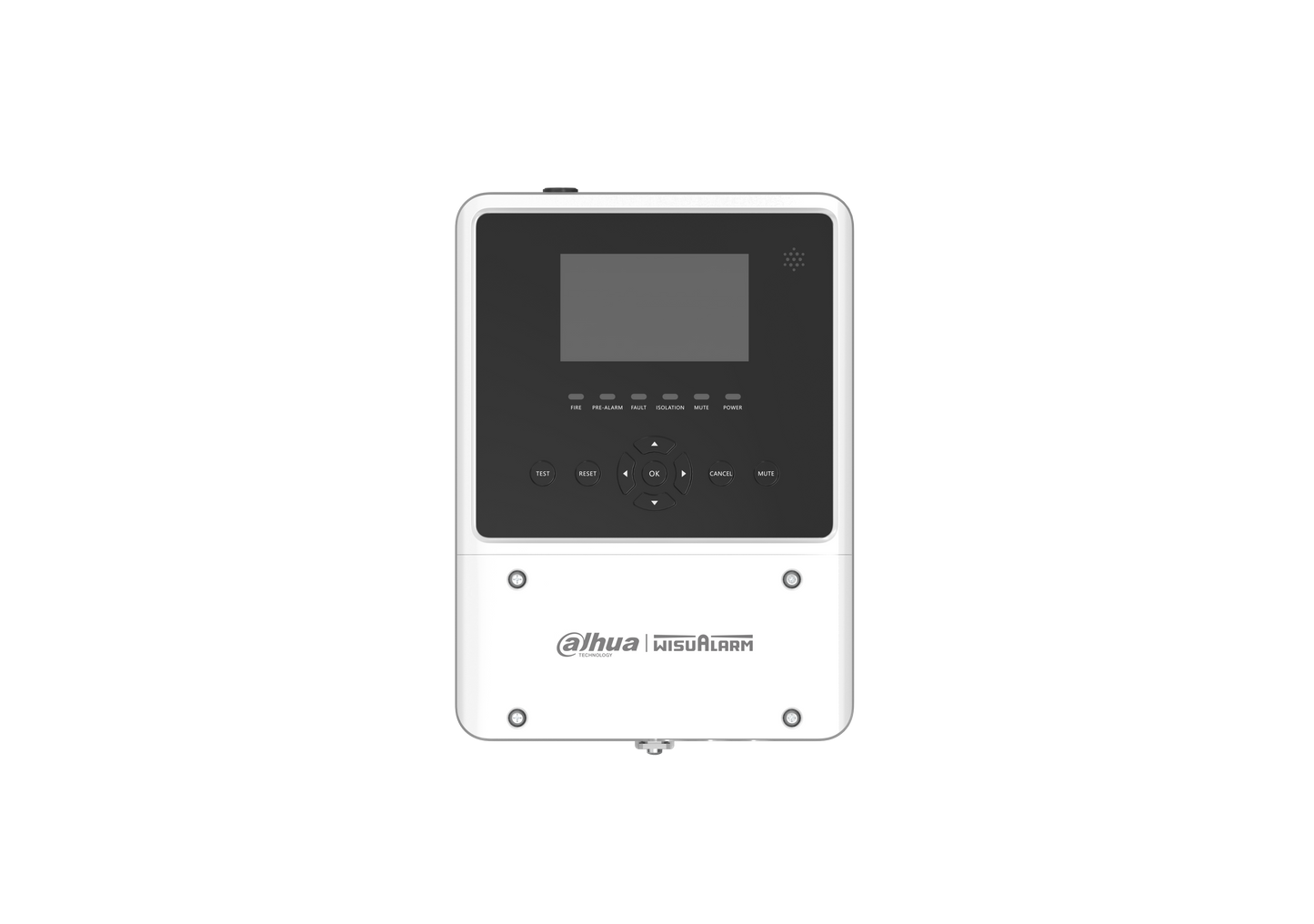

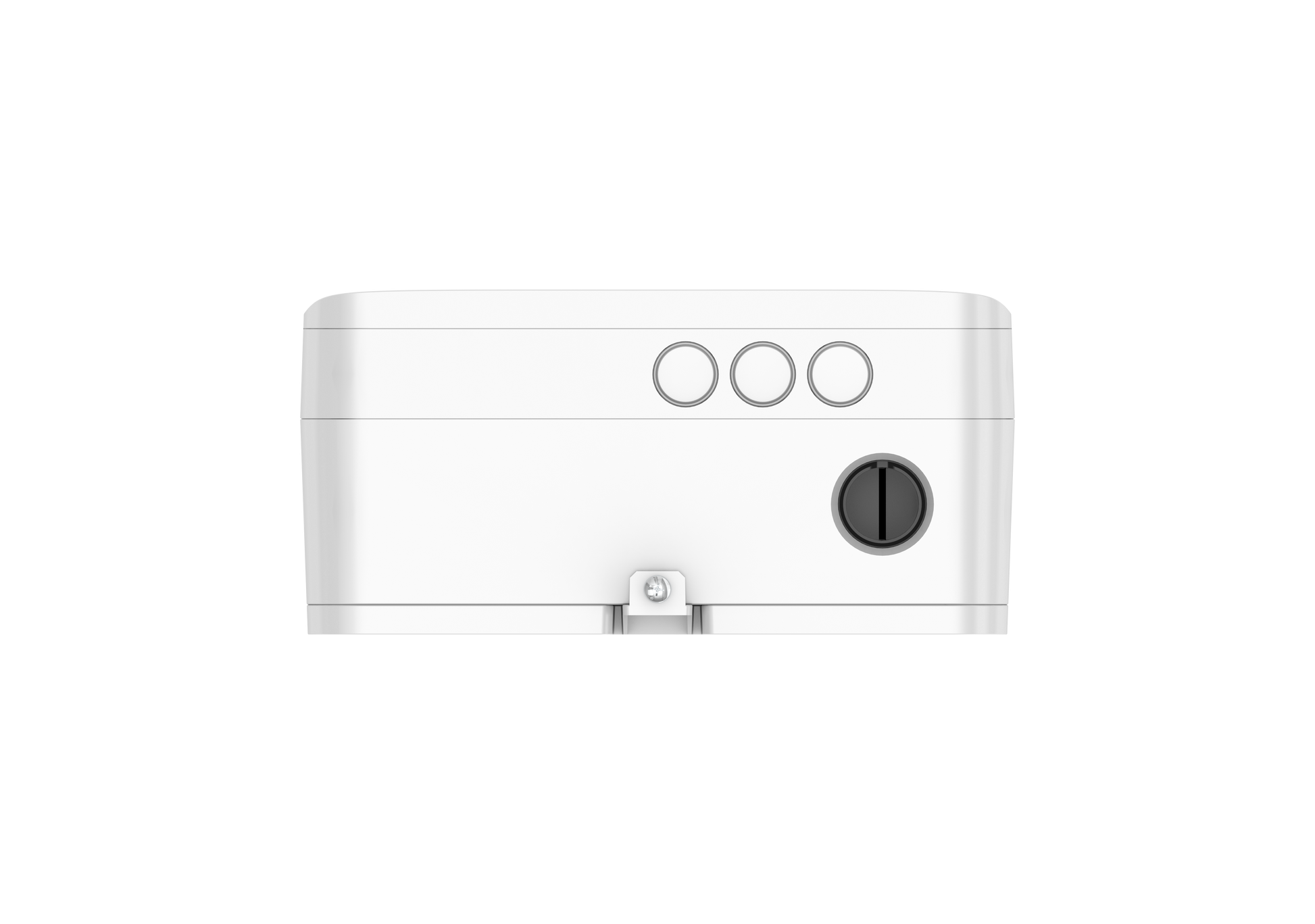

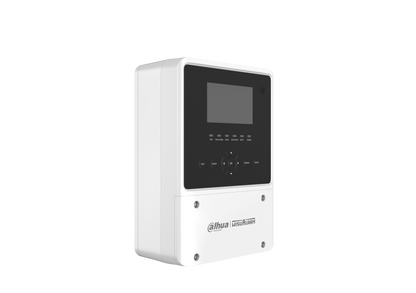

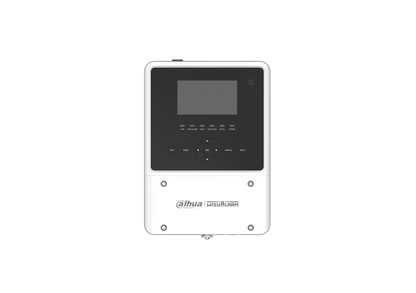

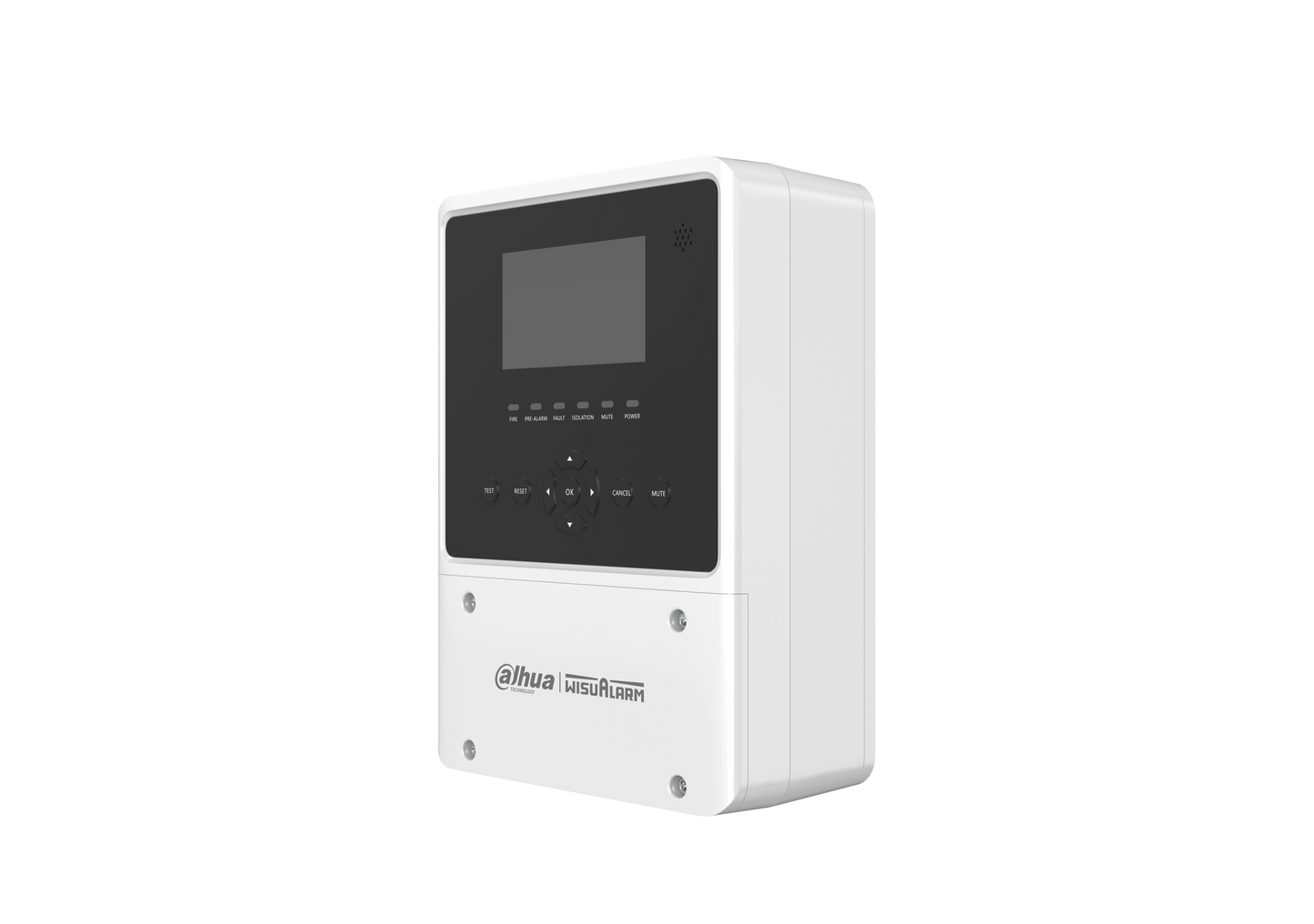

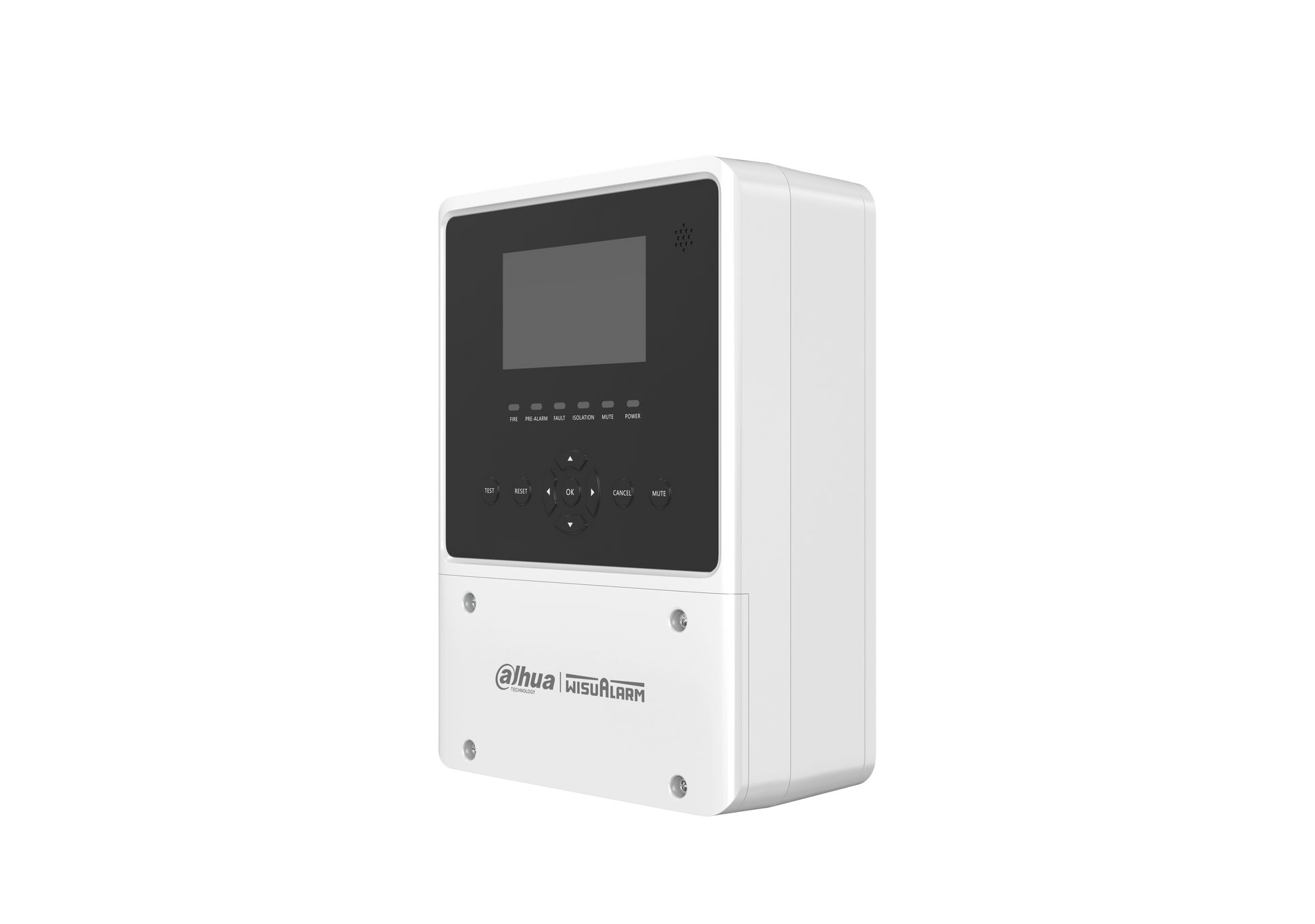

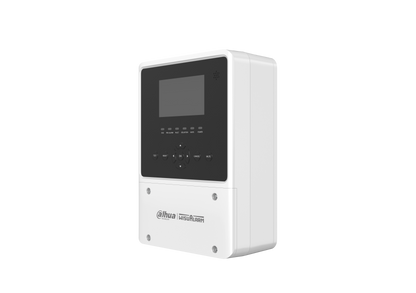

1 Pipe Aspirating Smoke Detector

1 Pipe Aspirating Smoke Detector

£1,000.00 GBP
£1,000.00 GBP
Sale Sold out
Shipping calculated at checkout.

This smoke detector offers highly sensitive and accurate fire detection using dual-wavelength laser technology for low false alarms. Its self-learning algorithm adapts to environmental changes for reliable performance. With flexible pipe design, multi-level alarms, intelligent filter monitoring, and extensive event logging, it delivers efficient and dependable early warning across various applications.

DHI-HY-ASD610B-P

Product features

· Wide sensitivity range -- 0.001% to 30% obs/m
· Precise detection and low false alarm rate due to dual-wave length laser particle identification technology
· Environment dynamic self-learning algorithm ensures the accurate detection with strong environment adaptation
· Maximum length of sampling pipe is 79 m (259 ft), maximum sampling holes number is 16, meeting diverse requirements
· 5 alarm levels according concentration degree, suitable for most scenarios
· Intelligently calculates filter usage time and remaining life based on environment conditions, reminds to change filter in advance
· 5 relay outputs, supporting customized events including alarm and fault
· Support a total of 100,000 event log for analysis

Functions

· Dual-wavelength laser particle identification technology

· Detection chamber self-cleaning

· Intelligent monitoring

· Large detection area

· Strong protection, easy to install and maintain

Service

2-YEAR WORRY-FREE Warranty

Technical Specifications

· Detection Sensitivity 0.001% to 30% obs/m
· Maximum Monitoring Area 711 m²
· Alarm Levels Warning, Action, Fire Alarm 1, Fire Alarm 2, Fire Alarm 3
· Operating Voltage 24 VDC (12 VDC to 32 VDC)
· Operating Temperature -10°C to +55°C (+14°F to +131°F)
· Protection IP66
· Standards EN 54-20:2006 + AC:2008 Class A, B, C
· Certifications VdS, CE, UKCA

In Stock
View full details

Wide Sensitivity Range for Early Detection

With wide sensitivity range from 0.001% to 30% obs/m, this device ensures rapid response to early signs of fire.

Dual-Wavelength Laser with Low False Alarms

Advanced dual-wavelength laser particle identification technology greatly reduces false alarms caused by interference sources.

Adaptive Self-Learning Algorithm

The product adjusts to environmental changes to deliver stable and reliable performance under varying conditions.

Flexible Design with Smart Maintenance

Supporting sampling pipe length up to 79m and 16 sampling holes with intelligent filter life monitoring and extensive event logging, this device features flexible installation and efficient maintenance.

DOWNLOAD

Datasheet

DHI-HY-ASD610B-P Data Sheet

PDF
Download
